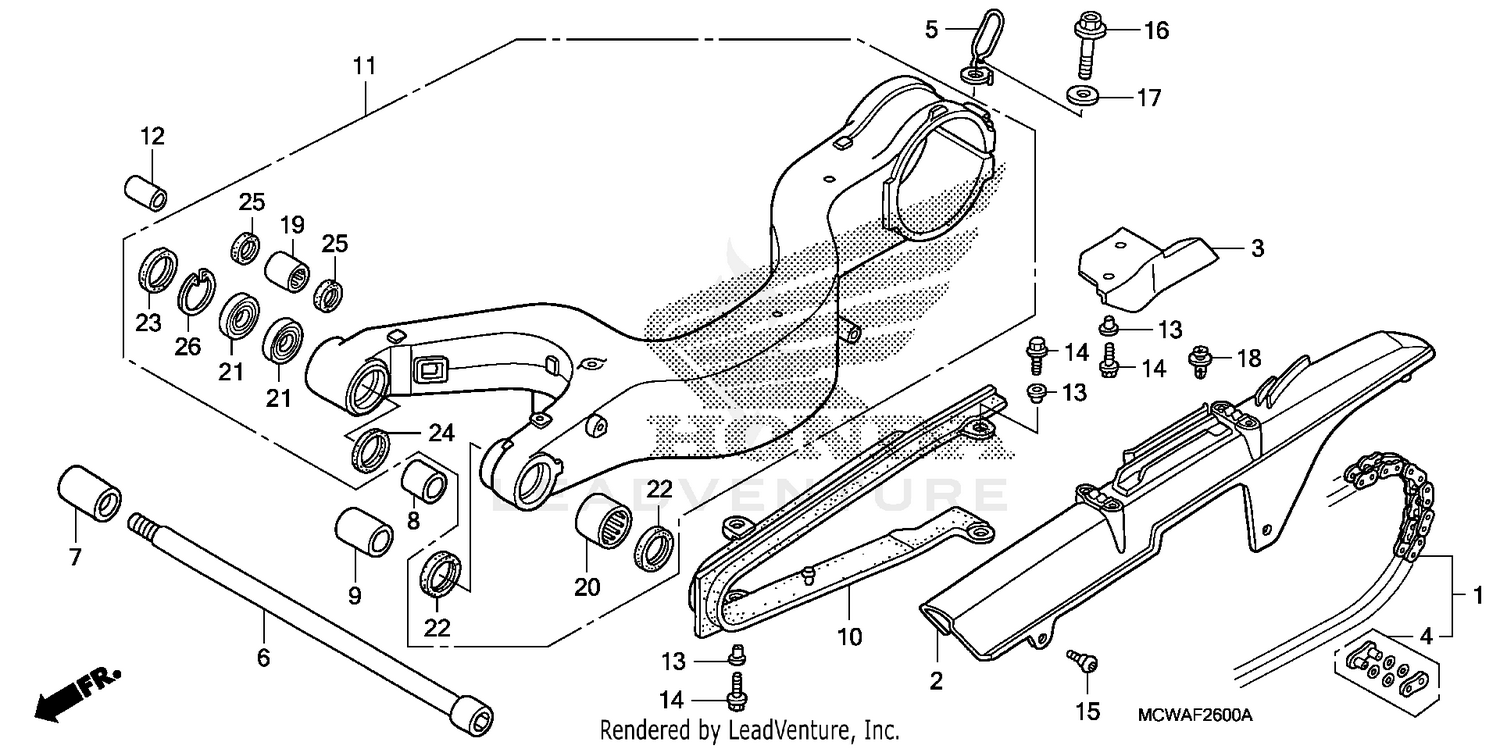

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN SET, DRIVE (DID50 112-120L) (DAIDO) (STANDARD LINK 110L) (NOT AVAILABLE)
06405-MZ1-P01
|
$252.23 | ||
|
Unavailable |
|||
|
#1
CHAIN SET, DRIVE (RK50 112-120L) (RK EXCEL) (STANDARD LINK 110L) (NA USE ALT:40540-MZ1-317)
06405-MZ1-P11
|
$252.23 | ||
|
Unavailable |
|||
|
#2
CASE, DRIVE CHAIN
40510-MBG-000
|
$118.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, RR. BRAKE AIR
40515-MBG-000
|
$38.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER LINK (DID)
40535-MZ1-316
Superseded by 40545-MCF-003
|
$11.13 | ||
|
Unavailable |
|||
|
#4
MASTER LINK (RK EXCEL)
40535-MZ1-317
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER LINK (DID)
40545-MCF-003
|
$11.13 | ||
|
Unavailable |
|||
|
#5
GUIDE, BRAKE HOSE
43350-MCP-900
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SWINGARM PIVOT
52101-MCW-D00
|
$65.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SWINGARM PIVOT
52102-MCW-D00
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, R. PIVOT (INNER)
52141-MBG-000
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, L. PIVOT DISTANCE
52143-MBB-000
|
$29.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
SLIDER, CHAIN
52170-MCW-D00
|
$92.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWINGARM SUB-ASSY.
52200-MCW-H50
|
$1,180.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, CUSHION CONNECTING ROD
52463-MAL-G00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
81312-GJ5-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X18)
90105-MY9-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (6X11)
90106-KY2-701
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (16X51)
90155-MBG-000
|
$18.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (16MM)
90559-HA8-000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, DRIVE CHAIN CASE
90684-MBG-003
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BEARING, NEEDLE (KOYO)
91071-KV3-005
|
$30.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BEARING, NEEDLE
91071-MR7-003
|
$31.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (20X37X9)
91072-MR7-003
|
$21.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUST SEAL (28X37X4)
91202-MR7-003
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (27X37X5)
91257-KY4-900
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (27X34X4)
91261-KZ3-861
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP (INNER) (37MM)
94520-37000
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
