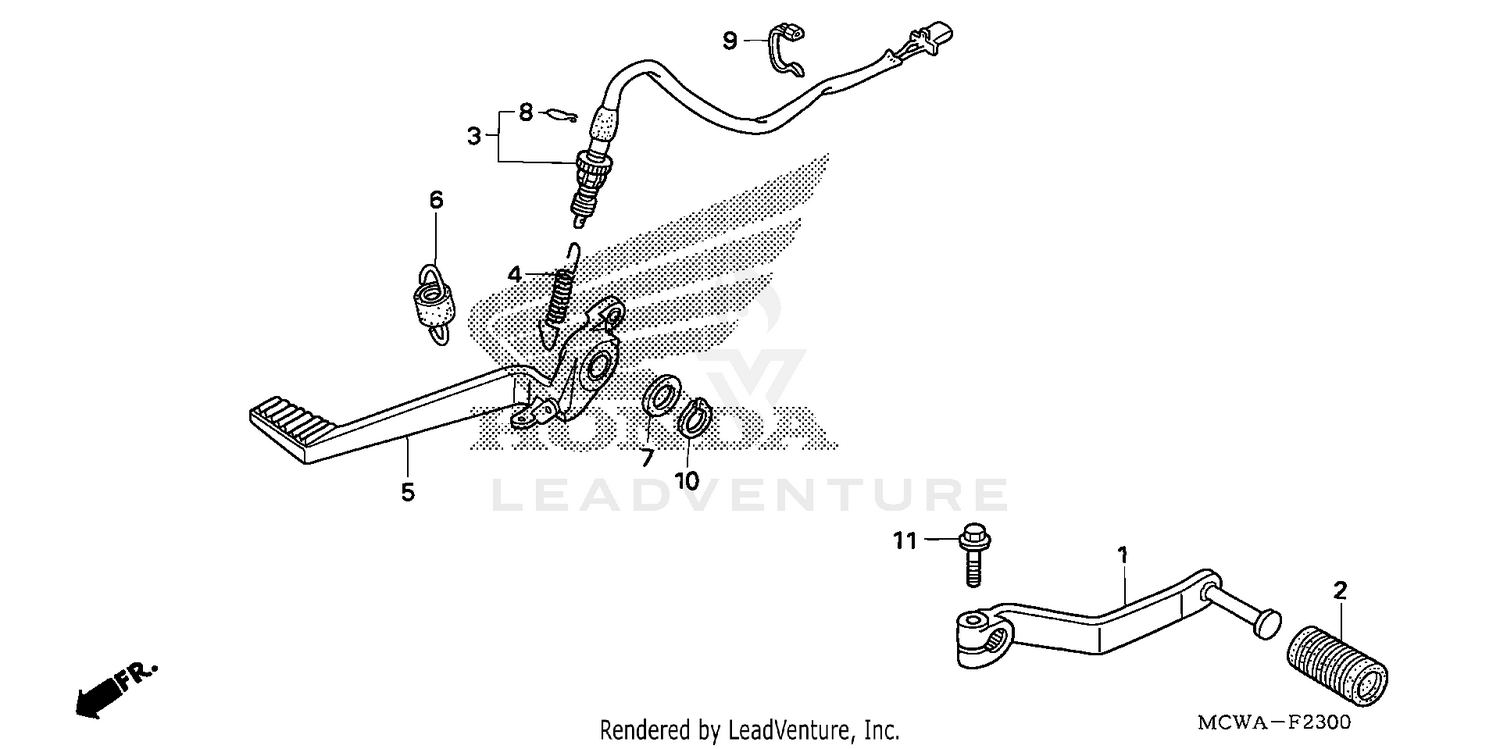

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT (COO)
24701-MCW-D60
Superseded by 24701-MJM-305
|
$85.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, GEARSHIFT PEDAL
24781-KR3-770
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., RR. STOP
35350-MCW-D00
Superseded by 35350-MCW-D01
|
$17.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., RR. STOP
35350-MCW-D01
|
$17.25 | ||
|
Unavailable |
|||
|
#4
SPRING, STOP SWITCH
35357-KY1-000
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
PEDAL, RR. BRAKE
46500-MCW-D60
|
$172.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING ASSY., BRAKE PEDAL
46515-MV9-000
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER (15.2X25)
90557-230-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, SWITCH COVER
90601-KAF-003
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, WIRE (Honda Code 2687788)
90650-KV6-003
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP (OUTER) (15MM)
94511-15000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
