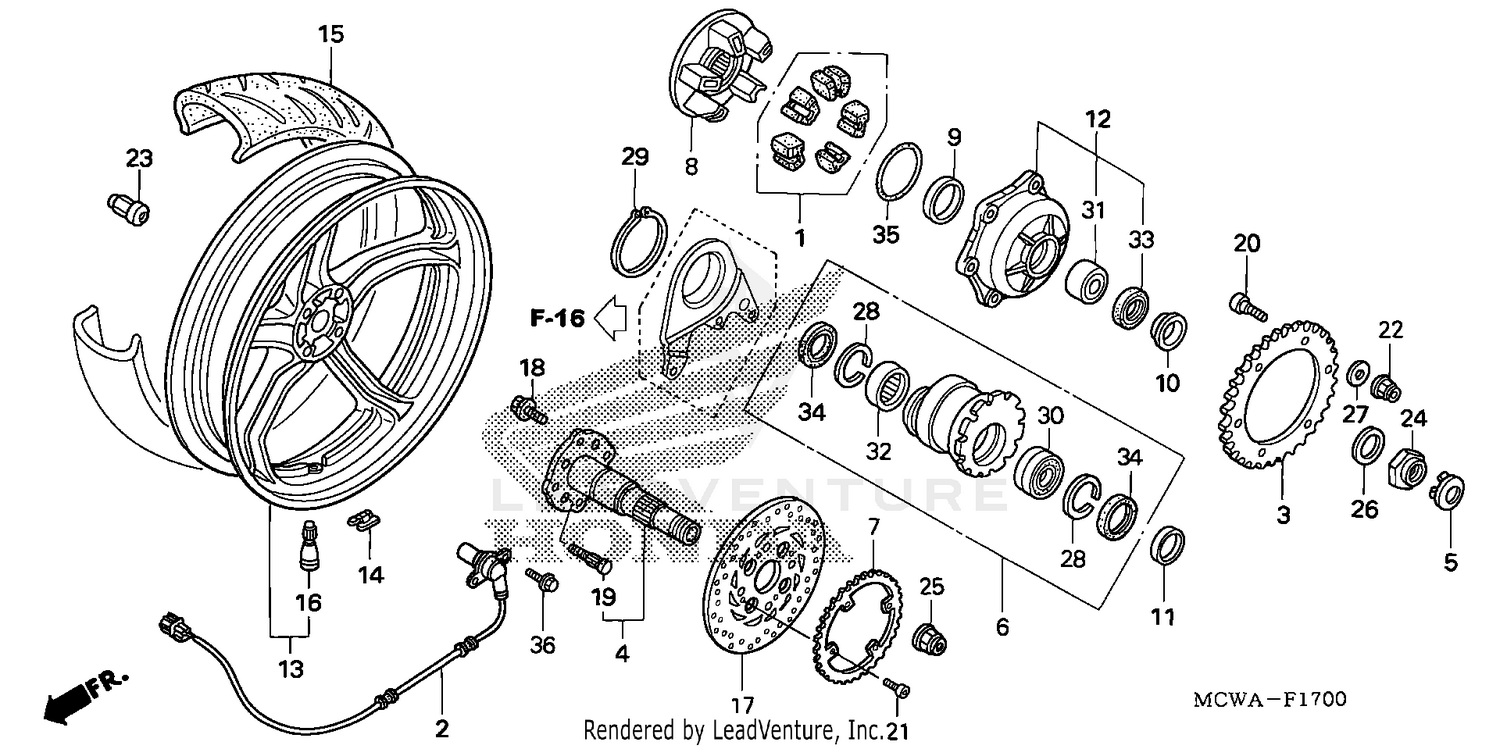

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER SET, WHEEL
06410-MBG-000
|
$44.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
SENSOR, RR. WHEEL SPEED
38510-MCW-D11
|
$218.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, FINAL DRIVEN (43T)
41201-MCW-D00
|
$136.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
AXLE, RR.
42300-MFN-D00
|
$330.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, RR. AXLE
42303-MT4-000
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, BEARING
42500-MCW-D00
|
$361.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, PULSER (RR)
42515-MCW-D11
|
$346.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, FINAL DRIVEN
42605-MBG-000
|
$162.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, RR. AXLE DISTANCE
42621-MT4-000
|
$22.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, RR. AXLE SIDE
42622-MT4-000
|
$25.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, RR. AXLE
42623-MBG-000
|
$25.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
HUB ASSY., SPROCKET
42630-MCW-H50
|
$225.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
WHEEL SUB-ASSY., RR. (TYPE3)
42650-MCW-D00ZC
|
$818.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)
42704-MCF-D60
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
WEIGHT, BALANCE (20) WEIGHT, BALANCE (30G)
42705-MCF-D60
|
$17.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WEIGHT, BALANCE (30) WEIGHT, BALANCE (10G)
42706-MCF-D60
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
TIRE, RR. (180/55ZR17) (M/C) (METZELER) (NOT AVAILABLE)
42711-MCW-D03
|
$223.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
TIRE, RR. (180/55ZR17) (M/C) (BS)
42711-MCW-D04
|
$294.94 | ||
|
Available to order. Add to View Price |
|||
|
#15
TIRE (180/55ZR17)
42711-MCW-D05
Superseded by 42711-MCW-D08
|
$294.94 | ||
|
Available to order. Add to View Price |
|||
|
#15
TIRE (180/55ZR17)
42711-MCW-D07
Superseded by 42711-MCW-D08
|
$294.94 | ||
|
Unavailable |
|||
|
#15
TIRE (180/55ZR17)
42711-MCW-D08
|
$294.94 | ||
|
Unavailable |
|||
|
#16
VALVE, RIM (PIRELLI) (NOT AVAILABLE)
42753-MCF-008
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, RIM (BS) VALVE, RIM (MICHELIN)
42753-ML7-003
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, RIM (DUNLOP)
42753-ML7-004
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
DISK, RR. BRAKE
43251-MCW-D11
|
$381.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X19)
90102-MW4-000
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, WHEEL (ROCKNEL FASTENER)
90113-SA0-025
Superseded by 90113-SM1-005
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, WHEEL (ROCKNEL FASTENER)
90113-SM1-005
|
$3.35 | ||
|
Unavailable |
|||
|
#20
BOLT (10X30)
90121-MCF-000
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, TORX (5X10)
90131-KPB-751
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, U (10MM)
90304-KAE-871
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, WHEEL (FUSE RASHI)
90304-SF0-751
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, LOCK (35MM)
90306-MFN-D00
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#26
WASHER, CONICAL SPRING (35)
90501-MBG-003
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER (10MM)
90502-MCF-000
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP (INNER) (62MM)
90651-ML0-731
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP (OUTER) (75MM)
90652-ML0-731
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (6908LU)
91061-ML0-731
|
$57.64 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, RADIAL BALL (35X55X10)
91061-MT4-003
|
$107.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, RR. AXLE NEEDLE
91062-MR7-003
|
$51.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
DUST SEAL (45X55X5) (ARAI)
91258-ML7-003
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
DUST SEAL (50X62X5)
91284-MR7-003
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING, SPROCKET HUB (52X2)
91352-MN8-003
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
