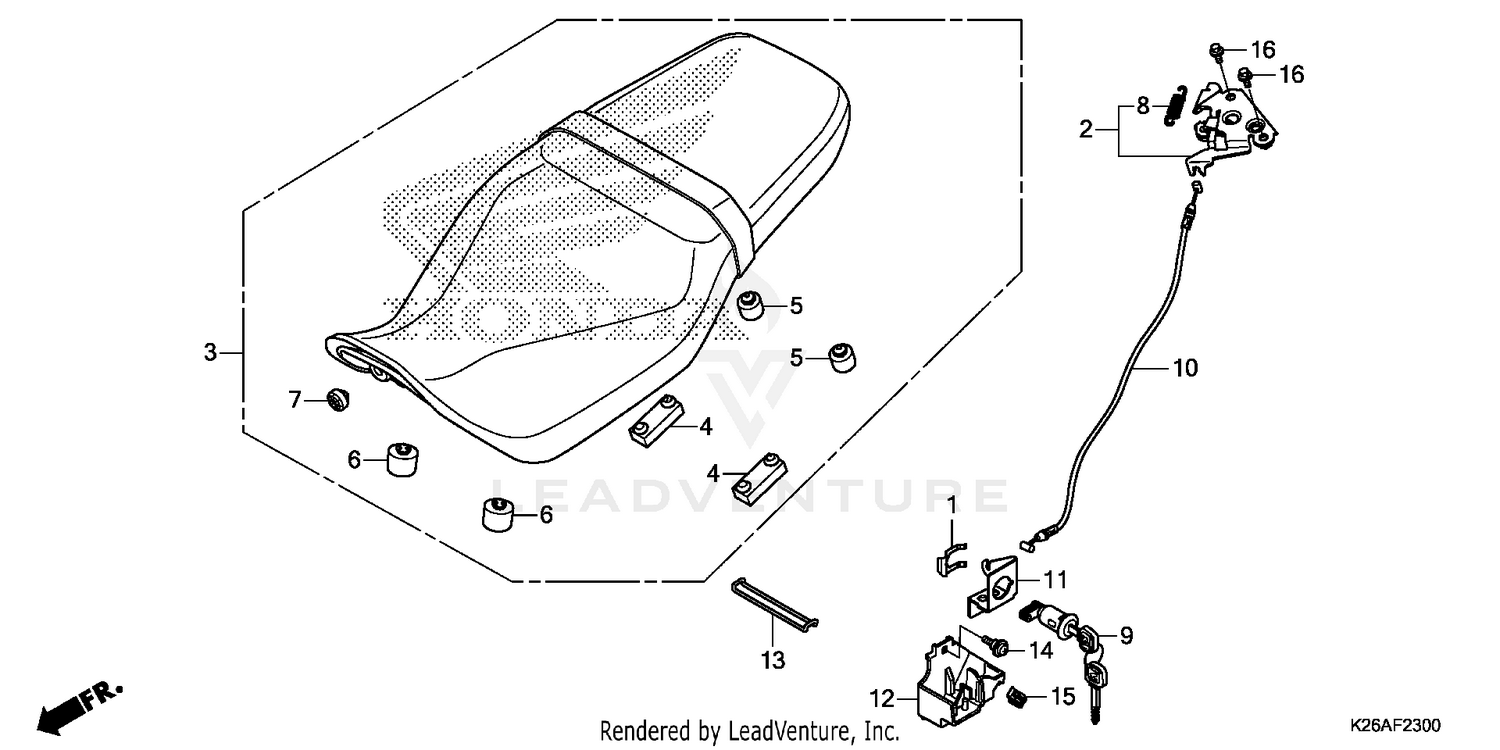

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, LOCK KEY SETTING
75581-673-000
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SEAT LOCK
77160-K26-B00
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAT ASSY., DOUBLE (TYPE1)
77200-K26-B00ZA
|
$107.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, SEAT SETTING
77205-MFE-670
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, SEAT CUSHION
77206-KPK-900
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, SEAT CUSHION
77206-KPP-T00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER C, SEAT SETTING
77215-KW7-900
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SEAT LOCK
77234-KRJ-900
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY, SEAT LOCK
77239-KVB-900
|
$57.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, SEAT LOCK
77240-K26-B00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, SEAT LOCK CABLE
77582-K26-900
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, SEAT LOCK
83556-K26-B00
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, TOOL
89012-KZL-930
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (5X13)
90117-KVG-A20
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CLIP (5MM)
90677-KAN-T00
|
$0.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X12)
95801-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
