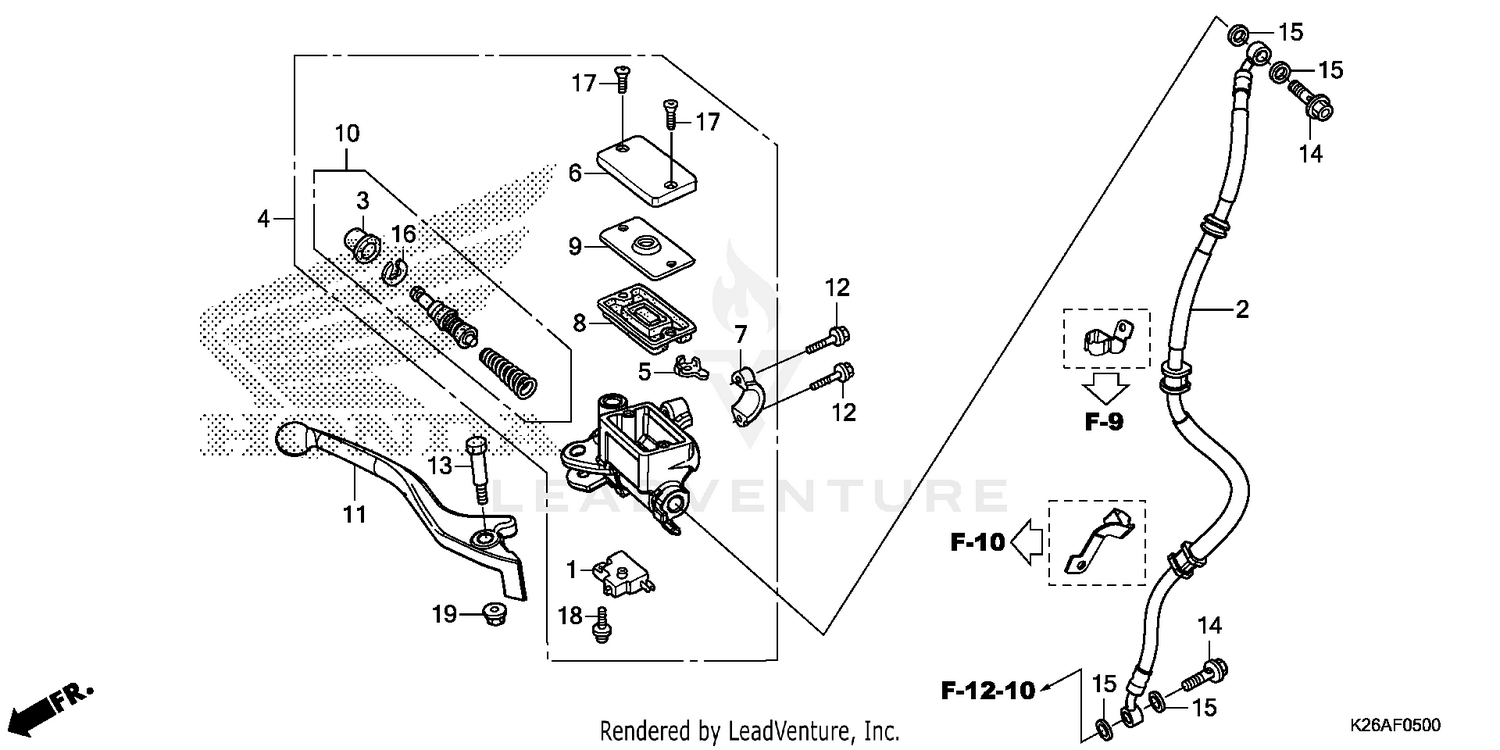

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, FR. BRAKE
45125-K26-B11
|
$24.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
45510-K26-305
|
$132.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, MASTER CYLINDER
45513-HA2-006
|
$33.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM
45520-GE2-006
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, DIAPHRAGM
45521-K21-901
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
MASTER CYLINDER SET
45530-471-831
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, R. HANDLEBAR (COO)
53175-K26-305
|
$19.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X22)
90013-GHB-660
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HANDLE LEVER PIVOT
90114-KGH-900
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#18
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
