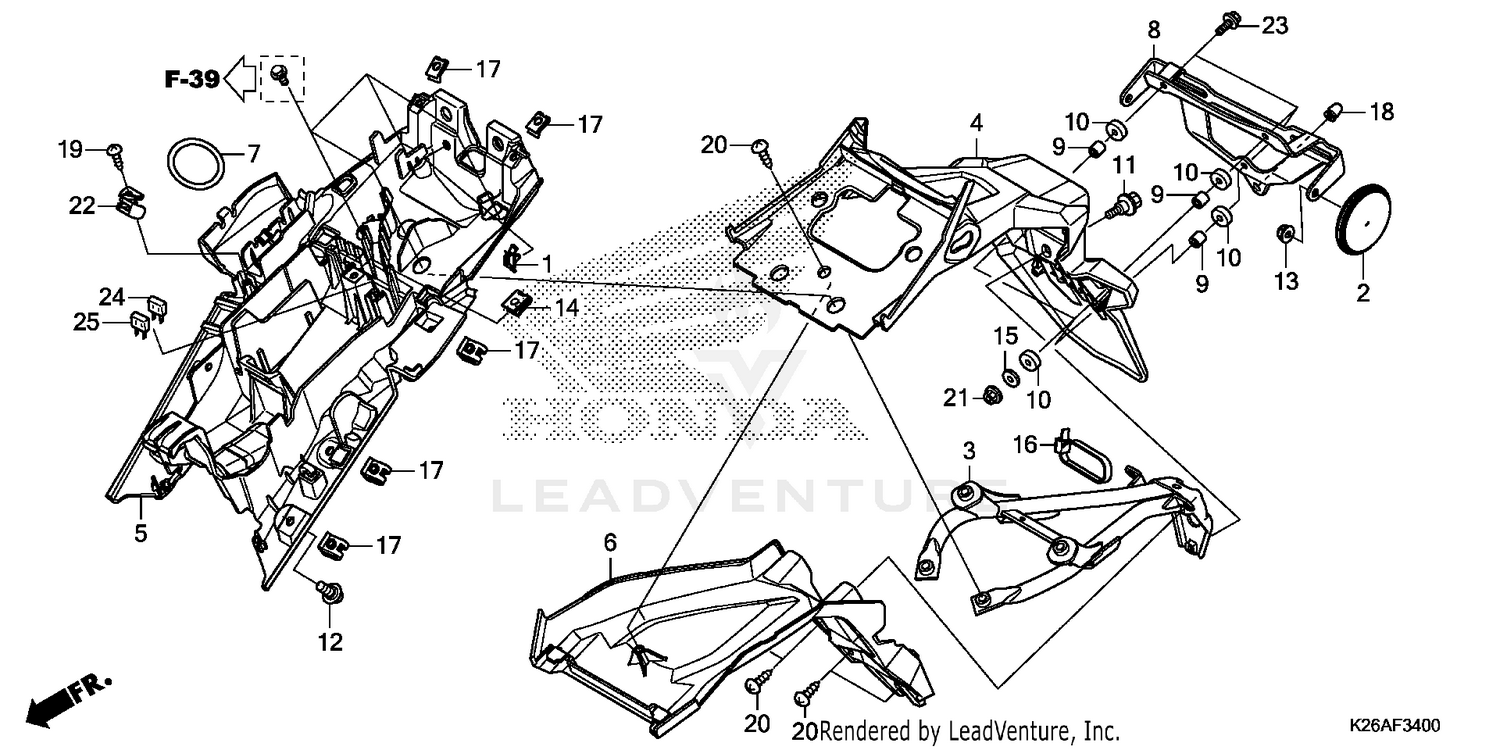

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, WIRE HARNESS
32161-393-003
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
REFLECTOR, RR. REFLEX (RED)
33741-HB9-641
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, RR. FENDER
50188-K26-B00
|
$75.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER SET A, RR. (TYPE1) (WL)
80100-K26-B10ZA
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER B, RR.
80101-K26-B00
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
FENDER, RR. (INNER)
80102-K26-B00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, TOOL
80124-K26-900
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, NUMBER PLATE
84701-K26-910
|
$63.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, NUMBER BRACKET
84702-K26-950
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, NUMBER BRACKET
84703-K26-950
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6MM)
90103-K26-B00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN (5X13)
90117-KVG-A20
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U (6MM) (FUJI SEIMITSU)
90301-KGH-901
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SPRING (6MM)
90320-MM5-000
|
$3.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER (6MM)
90485-286-000
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, WIRE (Honda Code 2687788)
90650-KV6-003
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CLIP (5MM)
90677-KAN-T00
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, CONE TYPE
90899-422-610
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TAPPING (4X12)
93903-24310
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (5X16)
93903-25380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CLIP, WIRE (2X78)
94591-27000
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X25)
95801-06025-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUSE, MINI (15A) (Honda Code 4853438)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
