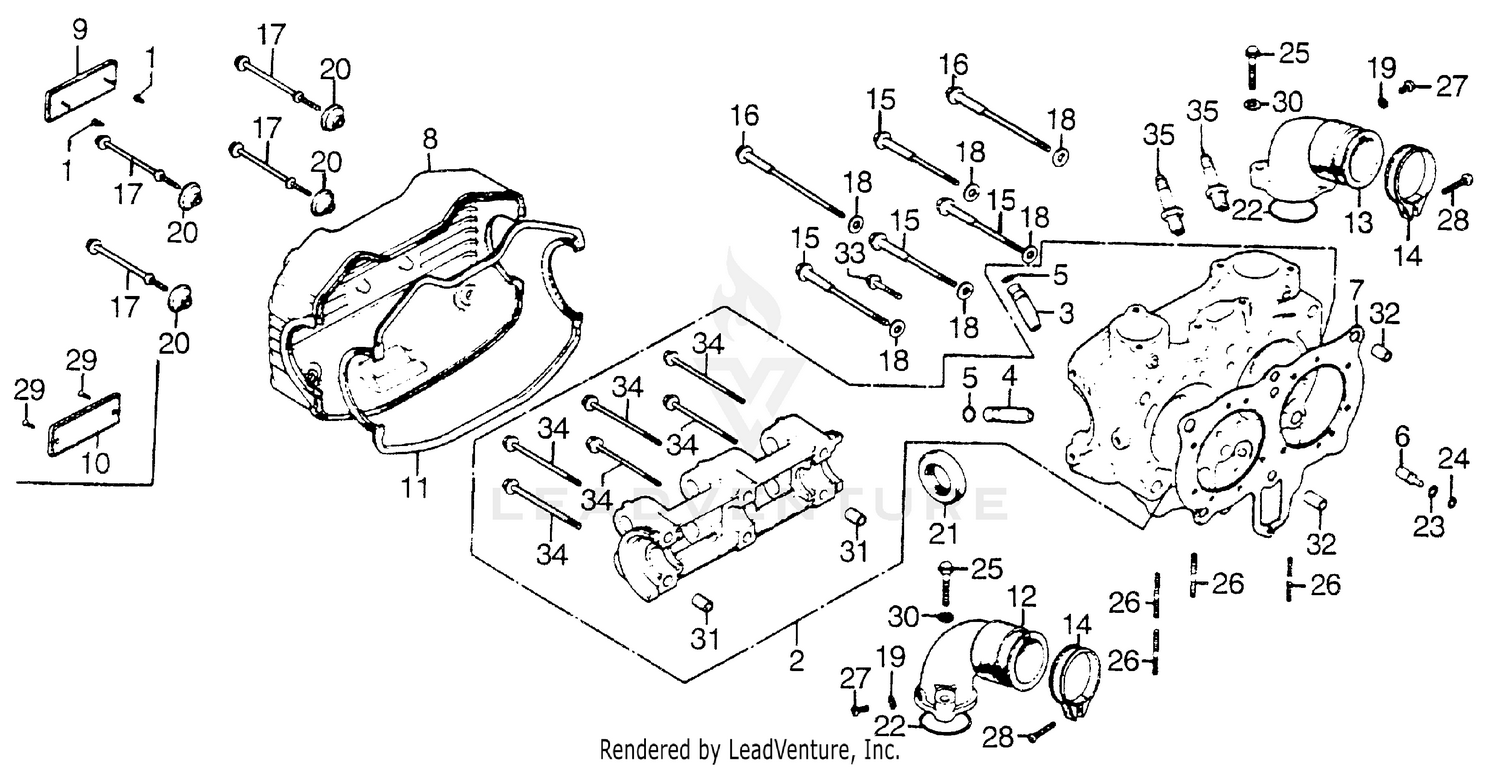

Right Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CYLINDER HEAD (NOT AVAILABLE)
12200-371-010
|
$410.36 | ||
|
Unavailable |
|||
|
#3
GUIDE, VALVE
12204-371-305
|
$16.63 | ||
|
Unavailable |
|||
|
#4
GUIDE, VALVE
12204-371-305
|
$16.63 | ||
|
Unavailable |
|||
|
#4
GUIDE, VALVE
12205-371-305
Superseded by 12204-371-305
|
$16.63 | ||
|
Unavailable |
|||
|
#5
CLIP, VALVE GUIDE
12211-250-310
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
ORIFICE, OIL CONTROL
12238-371-000
|
$7.03 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER HEAD
12251-371-003
Superseded by 12251-371-306
|
$75.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, CYLINDER HEAD
12251-371-306
|
$75.69 | ||
|
Unavailable |
|||
|
#8
COVER, CYLINDER HEAD (NOT AVAILABLE)
12311-371-010
|
$250.94 | ||
|
Unavailable |
|||
|
#10
EMBLEM, HEAD COVER (NOT AVAILABLE)
12312-371-611
|
$17.32 | ||
|
Unavailable |
|||
|
#11
GASKET, HEAD COVER
12328-371-000
|
$30.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
MANIFOLD A, IN. (NOT AVAILABLE)
17110-371-000
|
$71.25 | ||
|
Unavailable |
|||
|
#13
MANIFOLD B, IN. (NOT AVAILABLE)
17120-371-000
|
$82.69 | ||
|
Unavailable |
|||
|
#14
BAND, AIR CLEANER CONNECTING TUBE (54)
17255-371-000
Superseded by 95018-54250
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, AIR CLEANER CONNECTING TUBE (54)
95018-54250
|
$6.45 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (10X90)
90001-371-003
Superseded by 90001-371-013
|
$10.06 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (10X90)
90001-371-013
|
$10.06 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (10X115)
90002-371-003
Superseded by 90002-371-013
|
$11.37 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (10X115)
90002-371-013
|
$11.37 | ||
|
Unavailable |
|||
|
#17
BOLT, SPECIAL (6X63.2)
90018-371-000
Superseded by 90018-679-000
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SPECIAL (6X63.2)
90018-679-000
|
$14.82 | ||
|
Unavailable |
|||
|
#18
WASHER (21X11X2.3)
90438-634-000
|
$4.34 | ||
|
Unavailable |
|||
|
#19
WASHER, SEALING (5MM)
90452-323-000
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
RUBBER, SETTING
90541-371-000
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (27X43X9)
91209-371-003
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (40X2.6)
91301-371-003
Superseded by 91301-371-005
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (40X2.6)
91301-371-005
|
$5.84 | ||
|
Unavailable |
|||
|
#23
O-RING (6.5X1.5)
91305-371-003
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
O-RING (4.1X1.5)
91308-371-003
|
$6.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, CAP (6X32)
92500-06032-0B
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, STUD (8X43)
90035-371-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (5X8)
93500-05008-0A
|
$0.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SCREW, PAN (5X20)
93500-05020-0G
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, OVAL (3X6)
93700-03006-0B
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#30
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#31
PIN A, DOWEL (10X16)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
PIN A, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X28)
95700-06028-00
|
$1.90 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BOLT, FLANGE (8X70)
95700-08070-00
Superseded by 95701-08070-00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (8X70)
95701-08070-00
|
$3.02 | ||
|
Unavailable |
|||
|
#35
SPARK PLUG (D8EA) (NGK)
98069-38710
Superseded by 98069-58717
|
$2.70 | ||
|
Unavailable |
|||
|
#35
SPARK PLUG (D8EA) (NGK)
98069-58717
|
$2.70 | ||
|
Unavailable |
|||
|
#35
SPARK PLUG (D8EA) (NGK)
98069-58717-S
Superseded by 98069-58717
|
$2.70 | ||
|
Unavailable |
|||
|
#35
SPARK PLUG (D8EA) (NGK)
98069-58720
Superseded by 98069-58717
|
$2.70 | ||
|
Unavailable |
|||
|
#35
SPARK PLUG (D8EA) (NGK)
98069-58721
Superseded by 98069-58717
|
$2.70 | ||
|
Unavailable |
|||
|
#35
SPARK PLUG (D8EA) (NGK)
98079-58721
Superseded by 98069-58717
|
$2.70 | ||
|
Unavailable |
|||
|
#35
SPARK PLUG (X24ES-U) (DENSO)
98069-58727
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
