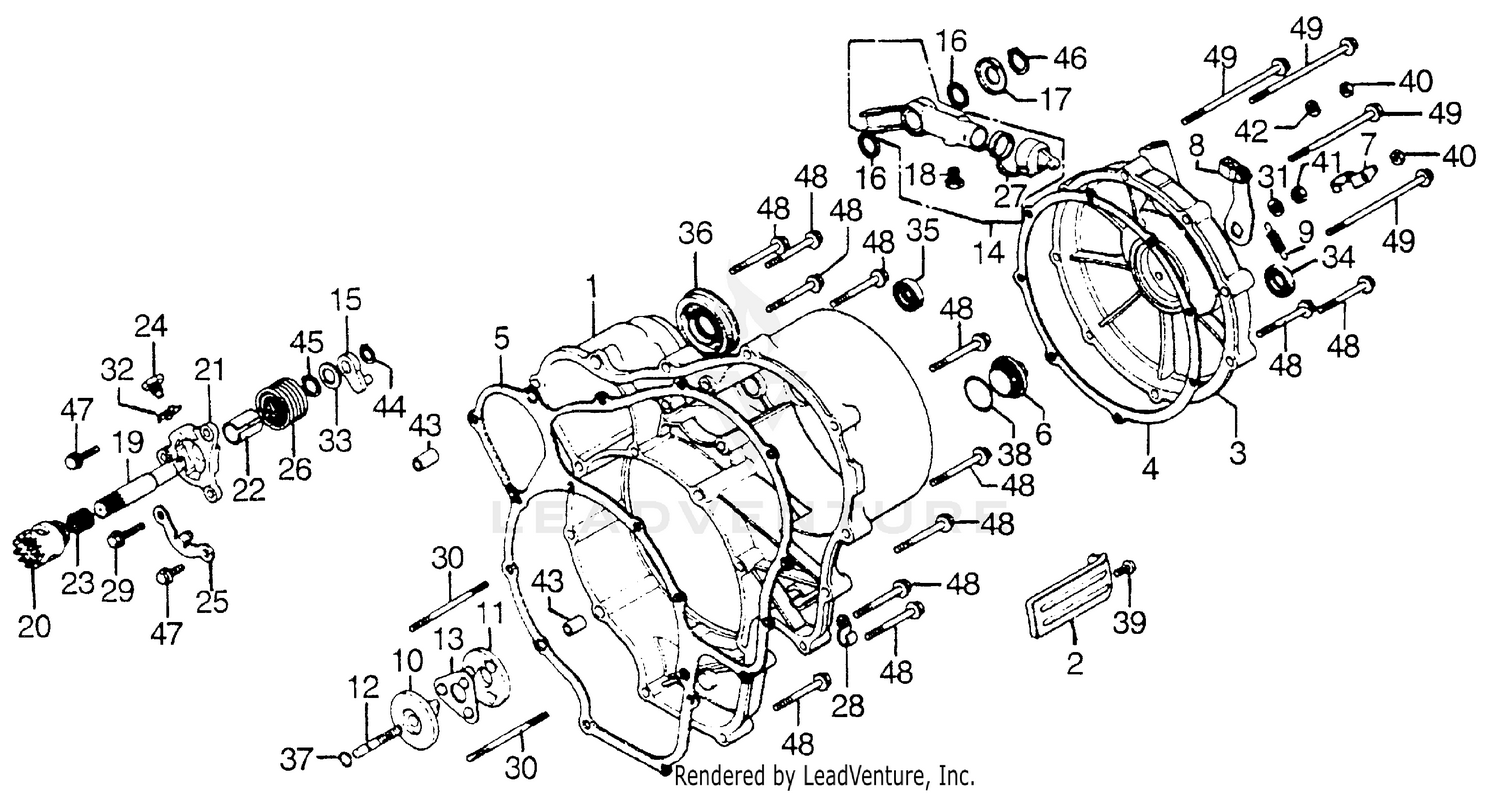

Kick Starter + Clutch Cover + Rear Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, RR.
11310-371-010
|
$398.00 | ||
|
Unavailable |
|||
|
#2
INSULATOR, HEAT
11315-371-010
Superseded by 11315-463-000
|
$46.20 | ||
|
Unavailable |
|||
|
#2
INSULATOR, HEAT
11315-463-000
|
$46.20 | ||
|
Unavailable |
|||
|
#3
COVER, CLUTCH
11342-371-000
|
$216.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CLUTCH COVER
11393-371-000
Superseded by 11393-371-306
|
$14.39 | ||
|
Unavailable |
|||
|
#4
GASKET, CLUTCH COVER
11393-371-306
|
$14.39 | ||
|
Unavailable |
|||
|
#5
GASKET, R. CRANKCASE COVER
11394-371-000
Superseded by 11394-371-306
|
$46.80 | ||
|
Unavailable |
|||
|
#5
GASKET, R. CRANKCASE COVER
11394-371-306
|
$46.80 | ||
|
Unavailable |
|||
|
#6
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#6
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#7
CLIP, OIL DRAIN TUBE (NOT AVAILABLE)
15707-371-000
|
$5.18 | ||
|
Unavailable |
|||
|
#8
LEVER, CLUTCH (NOT AVAILABLE)
22810-371-000
|
$8.34 | ||
|
Unavailable |
|||
|
#9
SPRING, CLUTCH LEVER
22815-300-000
|
$4.14 | ||
|
Unavailable |
|||
|
#10
SHAFT, CLUTCH RELEASE (NOT AVAILABLE)
22820-371-000
|
$44.72 | ||
|
Unavailable |
|||
|
#11
CAM, CLUTCH LIFTER (NOT AVAILABLE)
22830-371-000
|
$20.43 | ||
|
Unavailable |
|||
|
#12
BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)
22841-300-000
|
$8.32 | ||
|
Unavailable |
|||
|
#13
RETAINER, CLUTCH BALL
22860-300-006
|
$10.56 | ||
|
Unavailable |
|||
|
#14
JOINT ASSY., KICK (NOT AVAILABLE)
28240-371-000
|
$119.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
ARM, KICK STARTER (NOT AVAILABLE)
28242-371-000
|
$25.83 | ||
|
Unavailable |
|||
|
#16
DUST SEAL, JOINT (NOT AVAILABLE)
28246-371-000
|
$1.82 | ||
|
Unavailable |
|||
|
#17
CAP, DUST SEAL (NOT AVAILABLE)
28247-371-000
|
$2.65 | ||
|
Unavailable |
|||
|
#18
BOLT ASSY. (10MM) (NOT AVAILABLE)
28248-371-000
|
$11.37 | ||
|
Unavailable |
|||
|
#19
SHAFT, KICK STARTER (NOT AVAILABLE)
28251-371-000
|
$58.04 | ||
|
Unavailable |
|||
|
#20
RATCHET A, STARTER (NOT AVAILABLE)
28252-371-000
|
$92.75 | ||
|
Unavailable |
|||
|
#21
FLANGE, RATCHET (NOT AVAILABLE)
28254-371-000
|
$91.78 | ||
|
Unavailable |
|||
|
#22
COLLAR, KICK SHAFT
28255-371-000
|
$9.50 | ||
|
Unavailable |
|||
|
#23
SPRING, KICK RETURN (NOT AVAILABLE)
28256-371-000
|
$2.52 | ||
|
Unavailable |
|||
|
#24
BOLT, KICK GUIDE
28257-371-000
|
$9.25 | ||
|
Unavailable |
|||
|
#25
PLATE, KICK GUIDE (NOT AVAILABLE)
28258-371-000
|
$2.88 | ||
|
Unavailable |
|||
|
#26
SPRING, KICK STARTER
28261-371-000
|
$12.22 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP, KICK JOINT (NOT AVAILABLE)
28302-371-000
|
$7.00 | ||
|
Unavailable |
|||
|
#28
CLAMP A, CABLE (NOT AVAILABLE)
32117-371-000
|
$3.23 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X28)
90006-371-000
Superseded by 95700-06028-00
|
$1.90 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X28)
90144-371-980
Superseded by 95700-06028-00
|
$1.90 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X28)
95700-06028
Superseded by 95700-06028-00
|
$1.90 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X28)
95700-06028-00
|
$1.90 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, STUD (6X93) (NOT AVAILABLE)
90028-371-004
|
$2.56 | ||
|
Unavailable |
|||
|
#31
WASHER, HEAD (8MM)
90402-822-000
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, KICK BOLT (NOT AVAILABLE)
90416-371-000
|
$1.70 | ||
|
Unavailable |
|||
|
#33
WASHER (18MM)
90451-357-000
|
$4.04 | ||
|
Unavailable |
|||
|
#33
WASHER (18MM)
90453-286-003
Superseded by 90451-357-000
|
$4.04 | ||
|
Unavailable |
|||
|
#34
OIL SEAL (14X24X5)
91202-KFL-841
|
$6.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
OIL SEAL (14X24X5)
91202-216-003
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#34
OIL SEAL (14X24X5)
91202-302-000
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#34
OIL SEAL (14X24X5)
91202-302-010
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#34
OIL SEAL (14X24X5)
91205-HB2-771
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#34
OIL SEAL (14X24X5)
91205-HB2-772
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#34
OIL SEAL (14X24X5)
91205-035-303
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#35
OIL SEAL (18X29X7)
91204-286-003
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#36
OIL SEAL (25X54X7)
91204-371-005
|
$33.05 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (4.9X2.5)
91301-283-005
Superseded by 91301-426-010
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (4.9X2.5)
91301-393-000
Superseded by 91301-426-010
|
$4.53 | ||
|
Unavailable |
|||
|
#37
O-RING (4.9X2.5)
91301-426-010
|
$4.53 | ||
|
Unavailable |
|||
|
#38
O-RING (30.8MM)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
SCREW, PAN (6X8)
93500-06008
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, PAN (6X8)
93500-06008-0A
|
$1.15 | ||
|
Unavailable |
|||
|
#39
SCREW, PAN (6X8)
90053-371-980
Superseded by 93500-06008-0H
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
SCREW, PAN (6X8)
93500-06008-0H
|
$1.15 | ||
|
Unavailable |
|||
|
#39
SCREW, PAN (6X8)
93500-06008-1H
Superseded by 93500-06008-0H
|
$1.15 | ||
|
Unavailable |
|||
|
#40
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#41
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#42
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#43
PIN A, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
CIRCLIP (OUTER) (16MM)
94510-16000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#45
CIRCLIP (OUTER) (18MM)
94510-18000
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#46
CIRCLIP (OUTER) (20MM)
94510-20000
|
$1.38 | ||
|
Unavailable |
|||
|
#47
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95700-06018-00
Superseded by 95701-06018-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.70 | ||
|
Unavailable |
|||
|
#48
BOLT, FLANGE (6X35)
95700-06035-00
Superseded by 95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Unavailable |
|||
|
#49
BOLT, FLANGE (6X85)
95700-06085-00
Superseded by 95701-06085-00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, FLANGE (6X85)
95701-06085-00
|
$1.96 | ||
|
Unavailable |
|||
