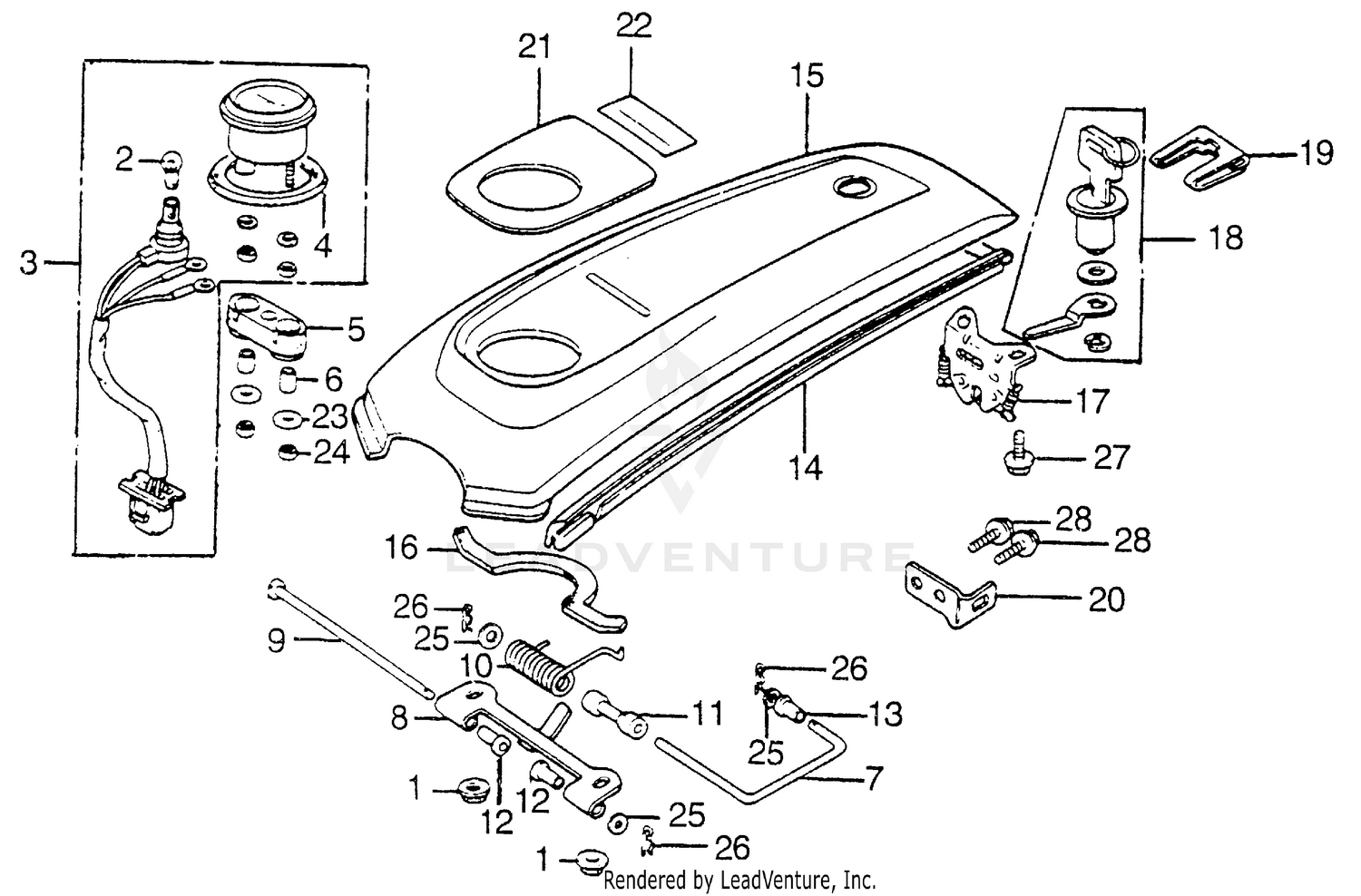

Fuel Meter + Top Shelter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT, FLANGE (6MM)
18362-720-000
Superseded by 94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
Unavailable |
|||
|
#2
BULB, DASH (12V3.4W) (IMASEN)
34902-259-000
|
$2.73 | ||
|
Unavailable |
|||
|
#3
METER ASSY., FUEL (NIPPON SEIKI) (NOT AVAILABLE)
37300-371-661
|
$84.89 | ||
|
Unavailable |
|||
|
#4
RUBBER, FUEL METER GUIDE (NIPPON SEIKI) (NOT AVAILABLE)
37305-371-008
|
$20.30 | ||
|
Unavailable |
|||
|
#5
RUBBER, FUEL METER MOUNT (NOT AVAILABLE)
37806-371-000
|
$3.37 | ||
|
Unavailable |
|||
|
#6
COLLAR, FUEL METER MOUNT (NOT AVAILABLE)
37807-371-000
|
$1.71 | ||
|
Unavailable |
|||
|
#7
ROD, STOPPER (NOT AVAILABLE)
50413-371-000
|
$2.43 | ||
|
Unavailable |
|||
|
#8
HINGE, TOP SHELTER
50414-371-000
|
$11.60 | ||
|
Unavailable |
|||
|
#9
PIN, TOP SHELTER HINGE (NOT AVAILABLE)
50416-371-000
|
$3.71 | ||
|
Unavailable |
|||
|
#10
SPRING, TOP SHELTER (NOT AVAILABLE)
50417-371-000
|
$9.23 | ||
|
Unavailable |
|||
|
#11
COLLAR, SHELTER MOUNT (NOT AVAILABLE)
50421-371-000
|
$2.17 | ||
|
Unavailable |
|||
|
#12
BUSH, TOP HINGE (NOT AVAILABLE)
50424-371-000
|
$4.39 | ||
|
Unavailable |
|||
|
#13
BUSH, STOPPER ROD (NOT AVAILABLE)
50426-371-000
|
$0.74 | ||
|
Unavailable |
|||
|
#14
WEATHERSTRIP, SHELTER (NOT AVAILABLE)
50428-371-000
|
$35.54 | ||
|
Unavailable |
|||
|
#15
SHELTER, TOP *R6CS* (CANDY ANTARES RED SPECIAL)
50430-371-000ZA
|
$290.79 | ||
|
Unavailable |
|||
|
#15
SHELTER, TOP *NH1* (BLACK) (NOT AVAILABLE)
50430-371-000ZD
|
$244.54 | ||
|
Unavailable |
|||
|
#15
SHELTER, TOP *PB6CS* (CANDY SIRIUS BLUE SPECIAL) (NOT AVAILABLE)
50430-371-000ZE
|
$244.54 | ||
|
Unavailable |
|||
|
#16
SEAL, TOOL TRAY (NOT AVAILABLE)
50432-371-300
|
$7.99 | ||
|
Unavailable |
|||
|
#17
LOCK, TOP SHELTER (NOT AVAILABLE)
50436-371-003
|
$19.47 | ||
|
Unavailable |
|||
|
#18
CYLINDER, TOP (HONDALOCK) (NOT AVAILABLE)
50437-371-007
|
$25.92 | ||
|
Unavailable |
|||
|
#19
SPRING, DOOR LOCK KEY SETTING (NOT AVAILABLE)
75581-605-004
|
$3.96 | ||
|
Unavailable |
|||
|
#20
STRIKER, SHELTER
83121-371-000
|
$4.92 | ||
|
Unavailable |
|||
|
#21
EMBLEM, TOP SHELTER (NOT AVAILABLE)
87128-371-000
|
$8.44 | ||
|
Unavailable |
|||
|
#22
MARK, DRIVE CAUTION (TYPEW)
87560-375-680A
Superseded by 87560-375-680ZF
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
MARK, DRIVE CAUTION (TYPEW)
87560-375-680ZA
Superseded by 87560-375-680ZF
|
$5.07 | ||
|
Unavailable |
|||
|
#22
MARK, DRIVE CAUTION (TYPEW)
87560-375-680ZF
|
$5.07 | ||
|
Unavailable |
|||
|
#23
WASHER, SPECIAL (4MM) (NOT AVAILABLE)
90555-357-000
|
$1.67 | ||
|
Unavailable |
|||
|
#24
NUT, HEX. (4MM)
94001-04000-0S
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN (4MM)
94101-04000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, LOCK (4MM)
94251-04000
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X10)
95700-06010-08
|
$1.68 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
