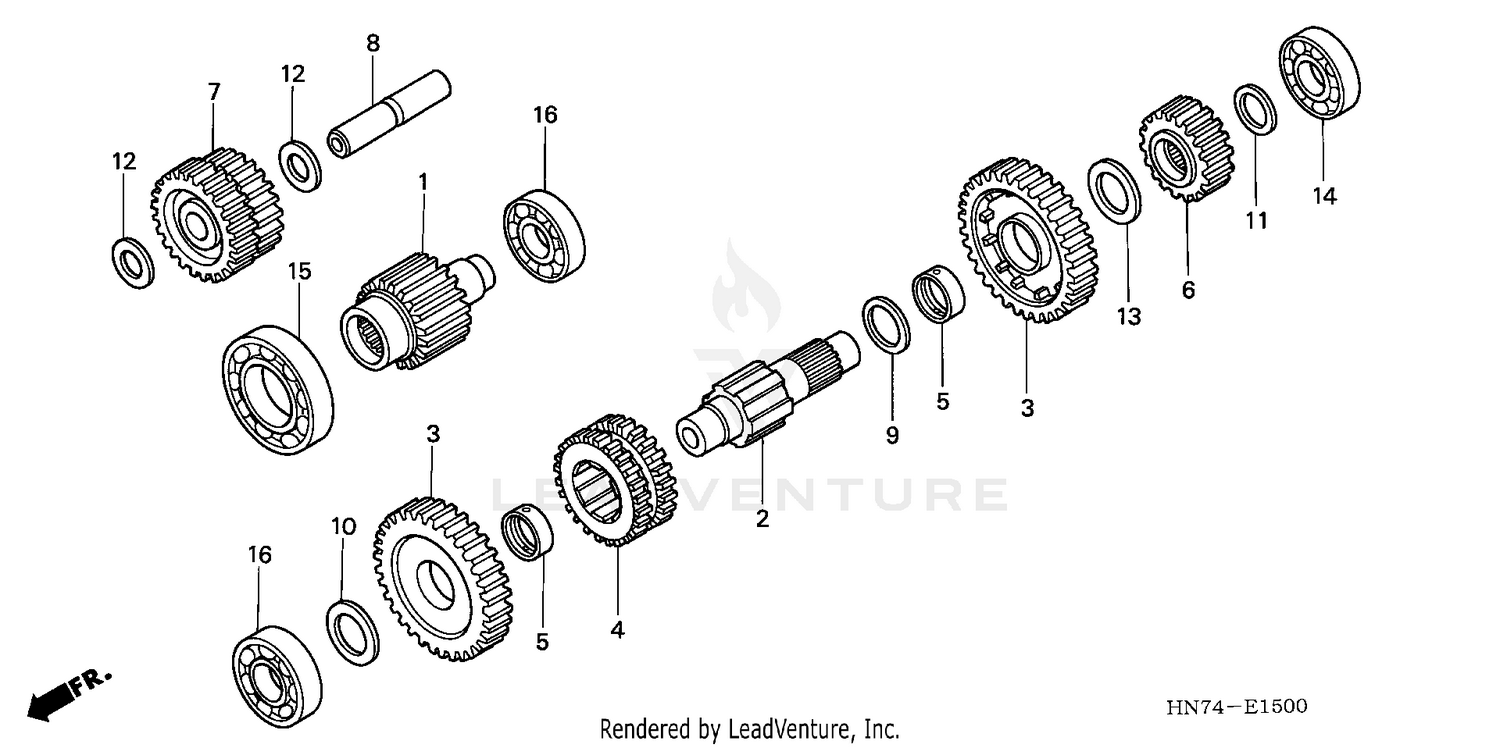

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (19T)
23211-HN7-000
|
$95.38 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION
23221-HN7-000
|
$97.19 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (32T)
23411-HN7-000
|
$97.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIFTER, REVERSE DRIVE GEAR
23412-HN7-000
|
$48.90 | ||
|
Unavailable |
|||
|
#5
BUSH (18X21X8.6)
23414-HN7-000
|
$6.10 | ||
|
Unavailable |
|||
|
#6
GEAR, FINAL DRIVE (18T)
23621-HN7-000
|
$26.60 | ||
|
Unavailable |
|||
|
#7
GEAR, REVERSE IDLE (20T/24T)
23720-HN7-000
|
$102.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, REVERSE IDLE
23731-HN7-010
|
$15.97 | ||
|
Unavailable |
|||
|
#9
WASHER (18MM)
90401-149-000
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPECIAL (17MM)
90403-HN8-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, THRUST (15MM)
90412-187-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER, THRUST (12MM)
90451-GK4-720
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, THRUST (18MM)
90452-701-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL SPECIAL (6302)
91004-HA0-004
|
$23.71 | ||
|
Unavailable |
|||
|
#15
BEARING, RADIAL BALL (6006) (TOYO)
91005-965-681
|
$72.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, RADIAL BALL (6203) (KOYO)
91012-HC5-004
|
$26.35 | ||
|
Available to order. Add to View Price |
|||
