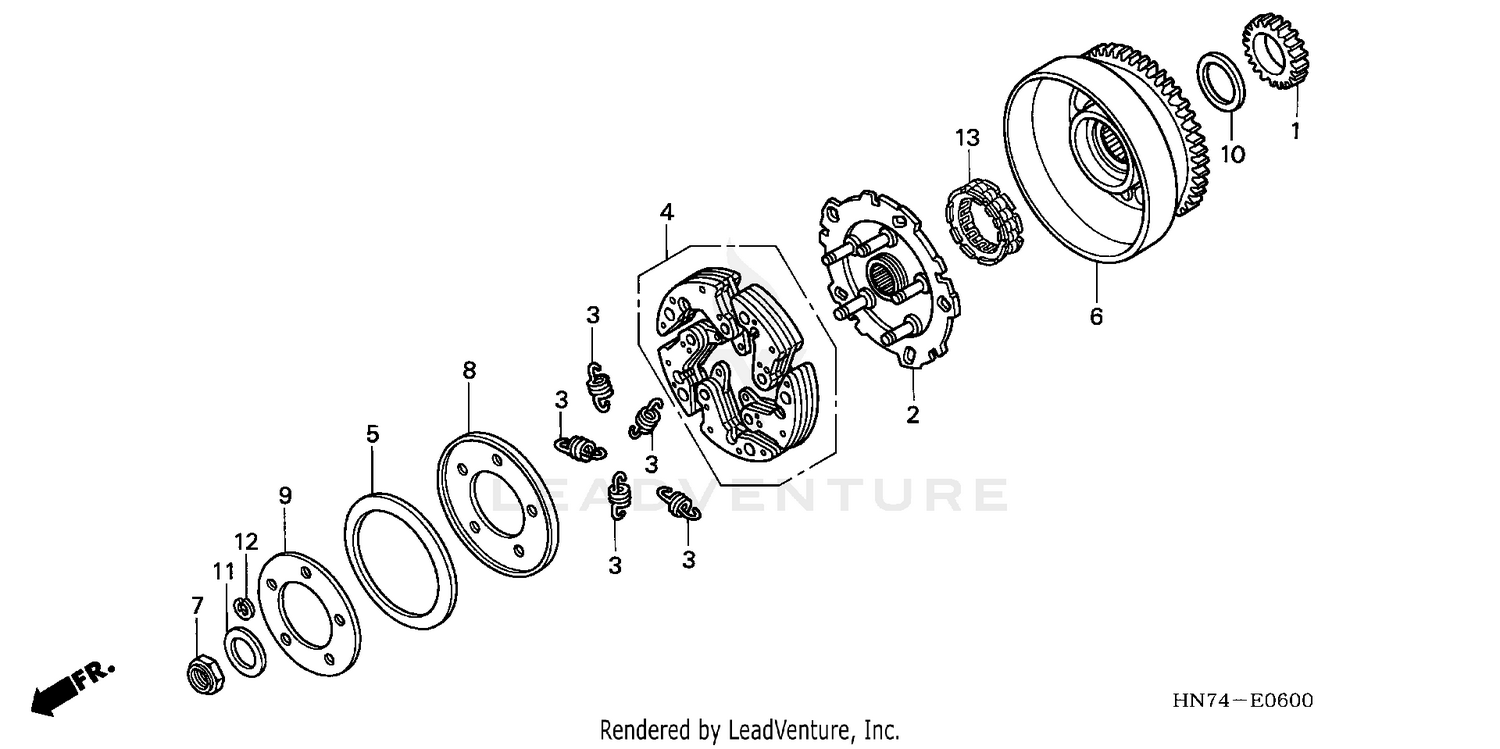

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, OIL PUMP DRIVE (20T)
15130-HN7-000
|
$44.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, DRIVE
22350-HN7-000
|
$81.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, CLUTCH DRIVE
22451-HM7-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
WEIGHT SET, CLUTCH
22535-HN7-305
|
$72.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CONDENSER DISK
22714-HA0-010
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLUTCH (OUTER)
23110-HN7-000
|
$179.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, LOCK (20MM)
90235-HM7-000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (64X122X1.0)
90406-HN0-670
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (64X105X1.6)
90407-HN0-670
|
$8.66 | ||
|
Unavailable |
|||
|
#10
WASHER, THRUST (27X40)
90457-HC4-000
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, THRUST (20MM)
90459-KB4-670
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP (7MM)
90605-166-720
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CLUTCH, ONE-WAY
91101-HN2-003
|
$68.20 | ||
|
Available to order. Add to View Price |
|||
