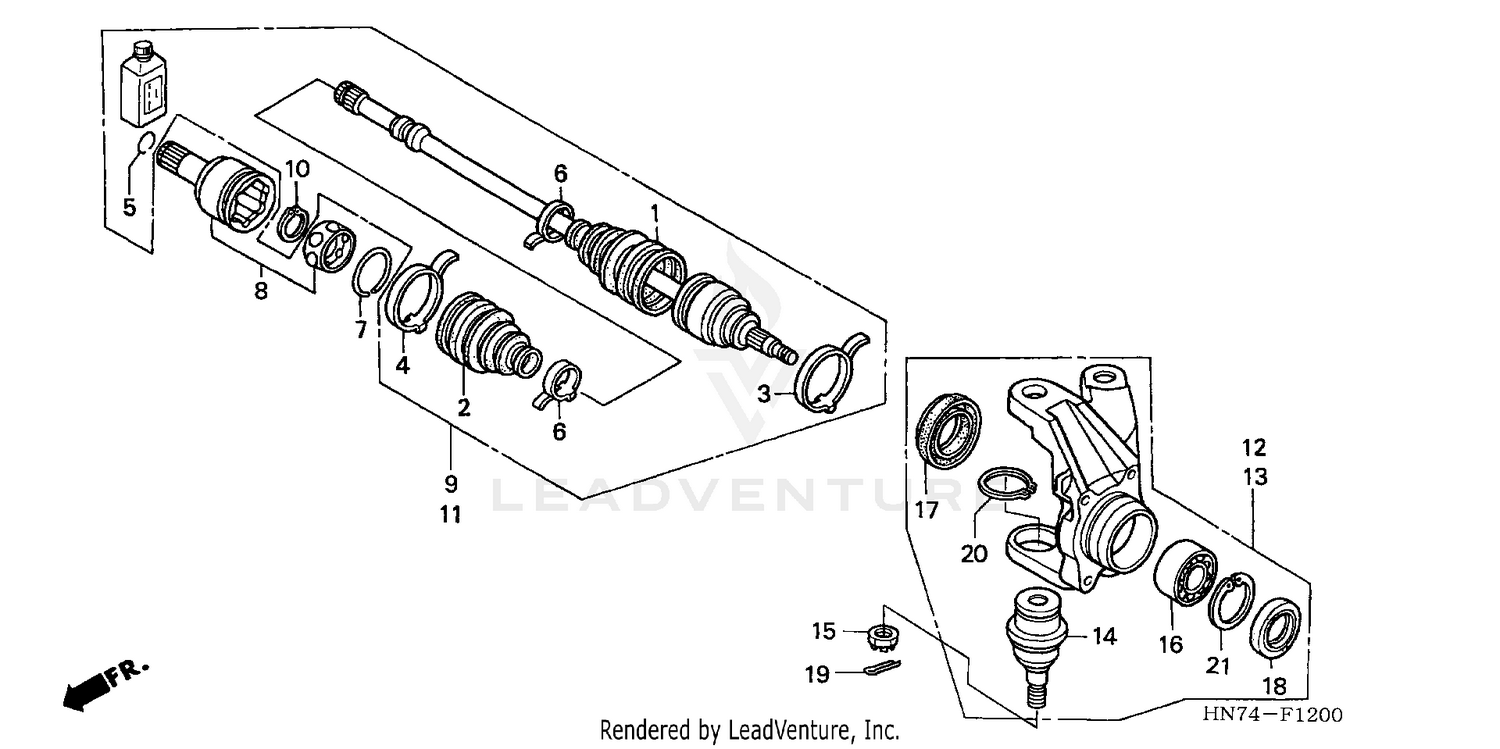

Knuckle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOOT, OUTBOARD
42202-HC5-003
|
$35.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOOT, INBOARD
42203-HM7-003
|
$35.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAND A
42204-HC5-003
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND B
42205-HM7-003
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, SNAP
42206-HA7-671
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND C
42206-HC5-003
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, SNAP
42206-HM7-003
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, INBOARD
42220-HM7-003
|
$206.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT SET, R. FR. DRIVE
44250-HN7-003
|
$263.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
44338-SD5-013
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT SET, L. FR. DRIVE
44350-HN7-003
|
$262.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
KNUCKLE ASSY., R.
51200-HN7-000
|
$513.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
KNUCKLE ASSY., L.
51250-HN7-000
|
$277.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT A, ARM BALL
51355-HM5-A81
Superseded by 51355-HP5-601
|
$22.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, ANGULAR (30X50X20) (TOYO)
91051-HC5-003
|
$85.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
DUST SEAL (40X58X9)
91209-HN5-671
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (38X50X7)
91256-HC5-003
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, SPLIT (3.0X18)
94201-30180
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CIRCLIP (OUTER) (32MM)
94514-32000
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP (INNER) (50MM)
94520-50000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
