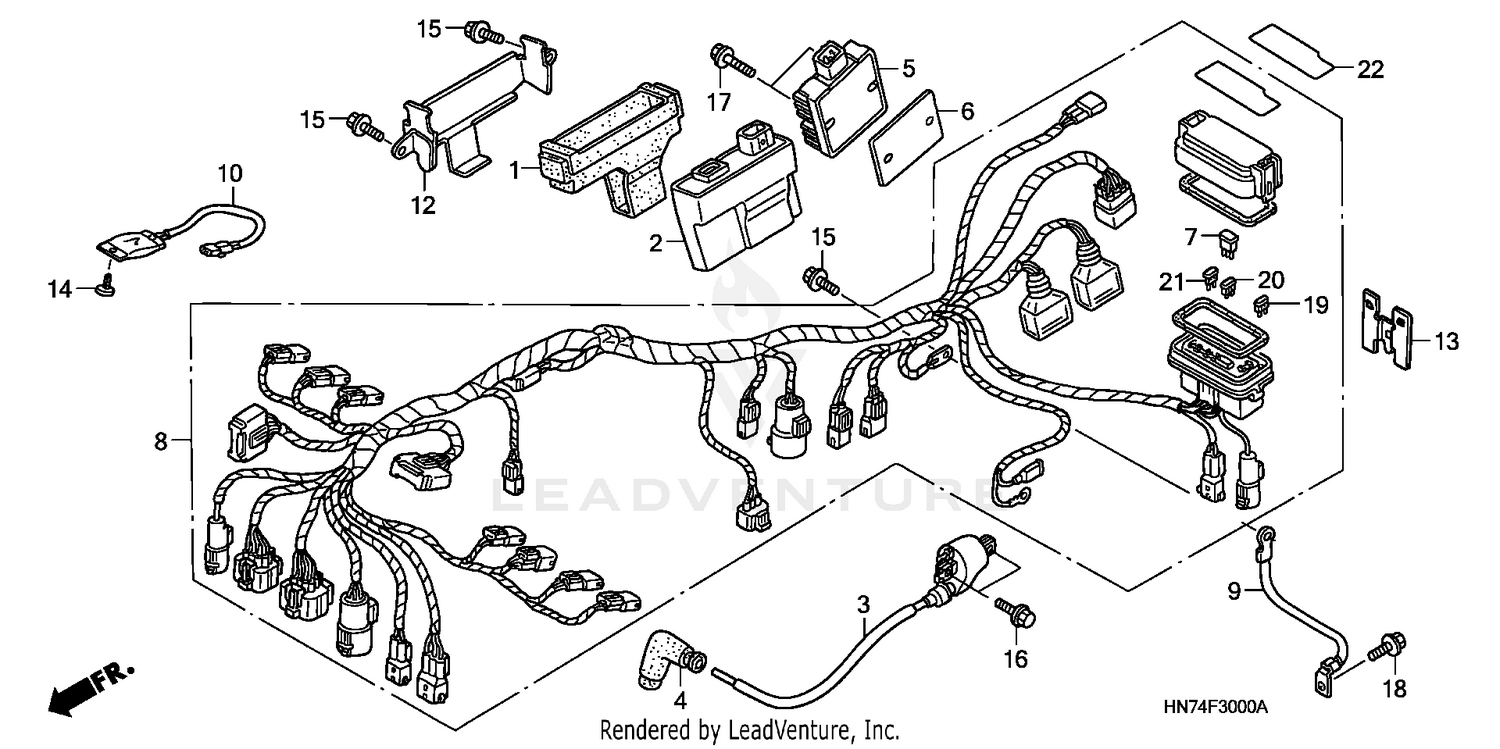

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUSPENSION, CONTROL UNIT
30401-HN7-000
|
$28.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONTROL UNIT, C.D.I. & HONDAMATIC
30410-HN7-013
|
$257.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
COIL ASSY., IGNITION
30500-HN7-003
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY,NOISE (S
30700-MA0-163
Superseded by 30700-MA0-004
|
$27.04 | ||
|
Unavailable |
|||
|
#4
CAP ASSY,NOISE (S
30700-965-013
Superseded by 30700-MA0-004
|
$27.04 | ||
|
Unavailable |
|||
|
#5
RECTIFIER, REGULATE
31600-HN7-A21
|
$127.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, REGULATE RECTIFIER
31601-HN7-000
|
$31.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
WIRE HARNESS
32100-HN7-000
|
$1,371.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, FRAME GROUND
32603-HN7-000
|
$7.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., THERMOSTAT
35250-HN4-670
|
$58.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, ENGINE CONTROL UNIT
50269-HN7-000
|
$8.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, FUSE CONNECTOR
50328-HN2-000
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, WASHER MOUTH
91504-SD5-901
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE, MINI (15A)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
|
#21
FUSE, MINI (30A)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
