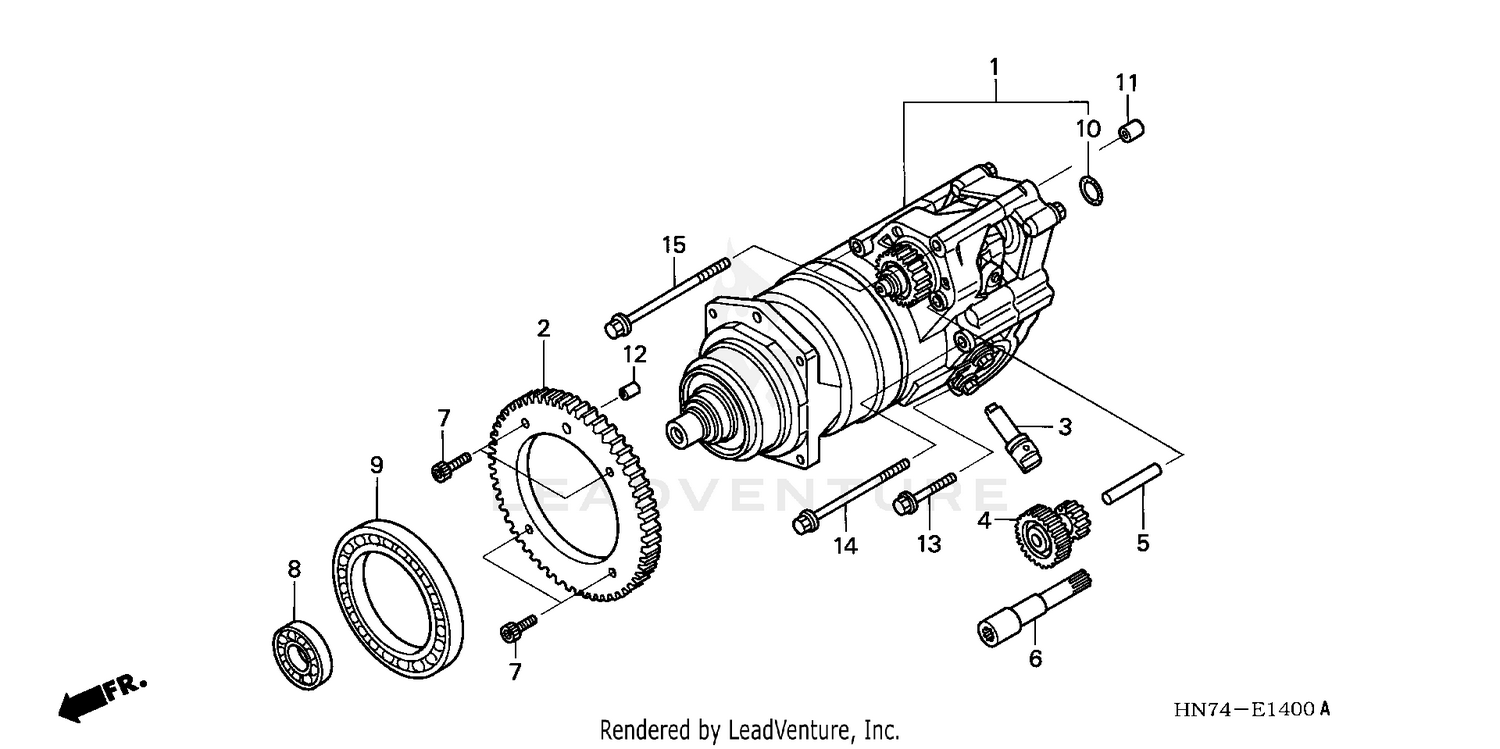

Hondamatic Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HONDAMATIC UNIT
26000-HN7-000
|
$2,797.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PRIMARY DRIVEN (65T)
26221-HN7-000
|
$100.35 | ||
|
Unavailable |
|||
|
#3
SHAFT, ANGLE SENSOR
27430-HN7-000
|
$40.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, MOTOR DRIVE (56T/17T)
27511-HN7-000
|
$43.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, MOTOR DRIVE
27526-HN7-003
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, HONDAMATIC CONTROL
27530-HN7-000
|
$44.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SOCKET (6MM)
90002-HN5-670
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, RADIAL BALL (22X52X13)
91014-HN2-003
|
$22.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, RADIAL BALL (6813) (NTN)
91007-HN2-004
|
$86.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (19.20X1.90) (NOK)
91301-P7X-003
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN, DOWEL (7X12)
94303-07120
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X80)
95701-06080-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X105)
95701-06105-00
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
