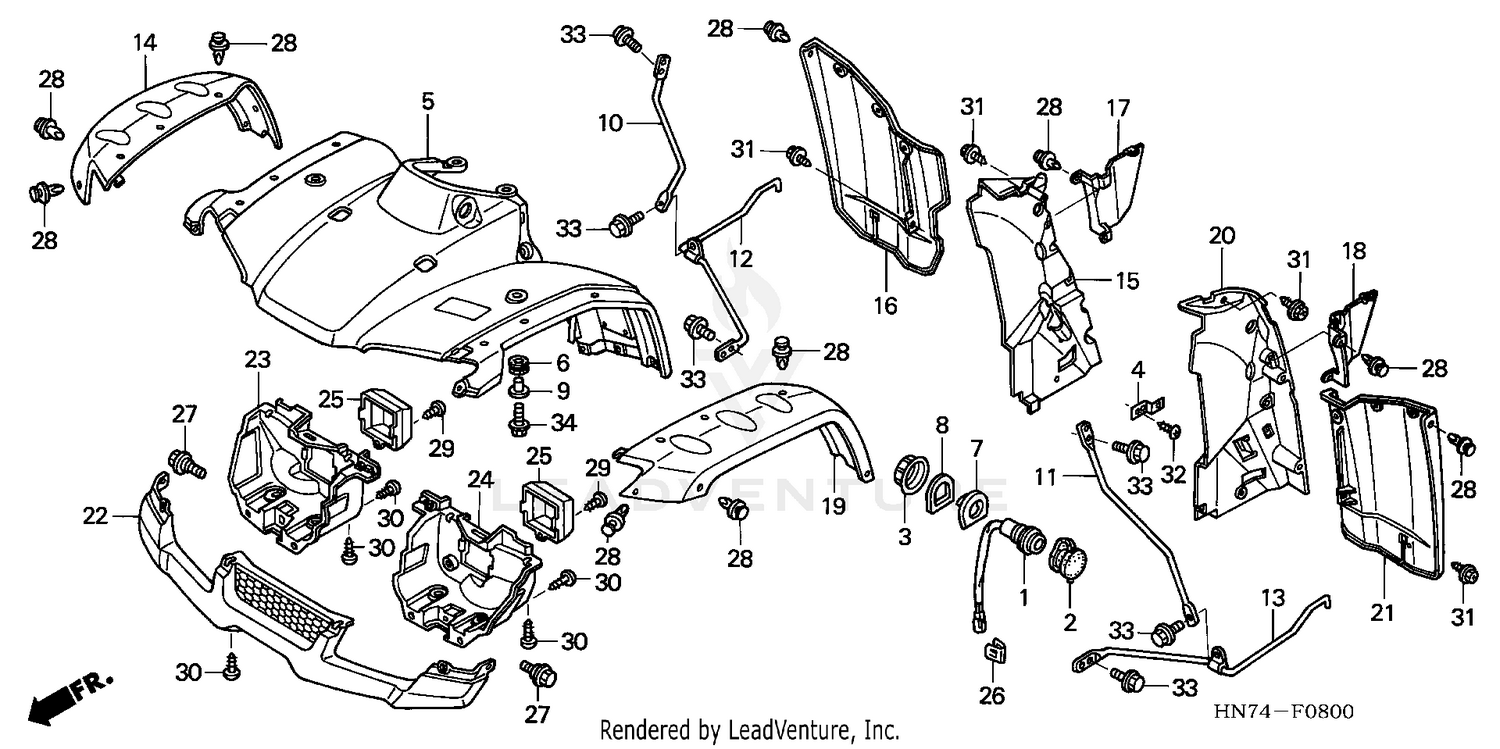

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SOCKET, ACCESSORY
31651-HN5-671
|
$60.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP
31652-HN0-A01
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
31653-HN0-A01
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY A, CONNECTOR
50327-HN5-670
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, FR. *G152* (ADVENTURE GREEN)
61100-HN7-000ZA
|
$234.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, FR. *R232* (PATRIOT RED)
61100-HN7-000ZB
|
$235.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
RUBBER, FR. FENDER MOUNTING
61103-HM5-850
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, ACCESSORY SOCKET (OUTER) *NH1* (BLACK)
61103-HN5-670ZB
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER, ACCESSORY SOCKET INSIDE *NH1* (BLACK)
61104-HN5-670ZA
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, FR. ORNAMENT
61104-MC8-000
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, R. FR. FENDER
61105-HN7-000
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, L. FR. FENDER
61106-HN7-000
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, R. SPLASH GUARD CENTER
61107-HN7-000
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, L. SPLASH GUARD CENTER
61108-HN7-000
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPLASH GUARD, R. FR. SIDE *NH1* (BLACK)
61861-HN7-000ZA
|
$75.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
FENDER, R. (INNER)
61862-HN7-000
|
$30.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPLASH GUARD, R. FR. (LOWER) *NH1* (BLACK)
61863-HN7-000ZA
|
$66.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE, R. ENGINE AIR
61864-HN7-000
|
$27.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, L. ENGINE AIR
61865-HN7-000
|
$17.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPLASH GUARD, L. FR. SIDE *NH1* (BLACK)
61866-HN7-000ZA
|
$72.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
FENDER, L. (INNER)
61867-HN7-000
|
$31.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPLASH GUARD, L. FR. (LOWER) *NH1* (BLACK)
61868-HN7-000ZA
|
$66.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
GRILLE, FR. *NH1* (BLACK)
66300-HN7-000ZA
|
$101.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, R. HEADLIGHT
66301-HN7-010
|
$41.51 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, L. HEADLIGHT
66302-HN7-010
|
$41.51 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP, HEADLIGHT TAIL
66303-HN5-670
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP, WIRE HARNESS
80106-HB7-000
|
$4.23 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SCREW, TAPPING (4X12)
93903-24320
|
$0.95 | ||
|
Unavailable |
|||
|
#30
SCREW, TAPPING (5X12)
93903-25220
|
$0.95 | ||
|
Unavailable |
|||
|
#31
SCREW, TAPPING (6X16)
93904-26210
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, TAPPING (4X12) (PO)
93913-24280
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
