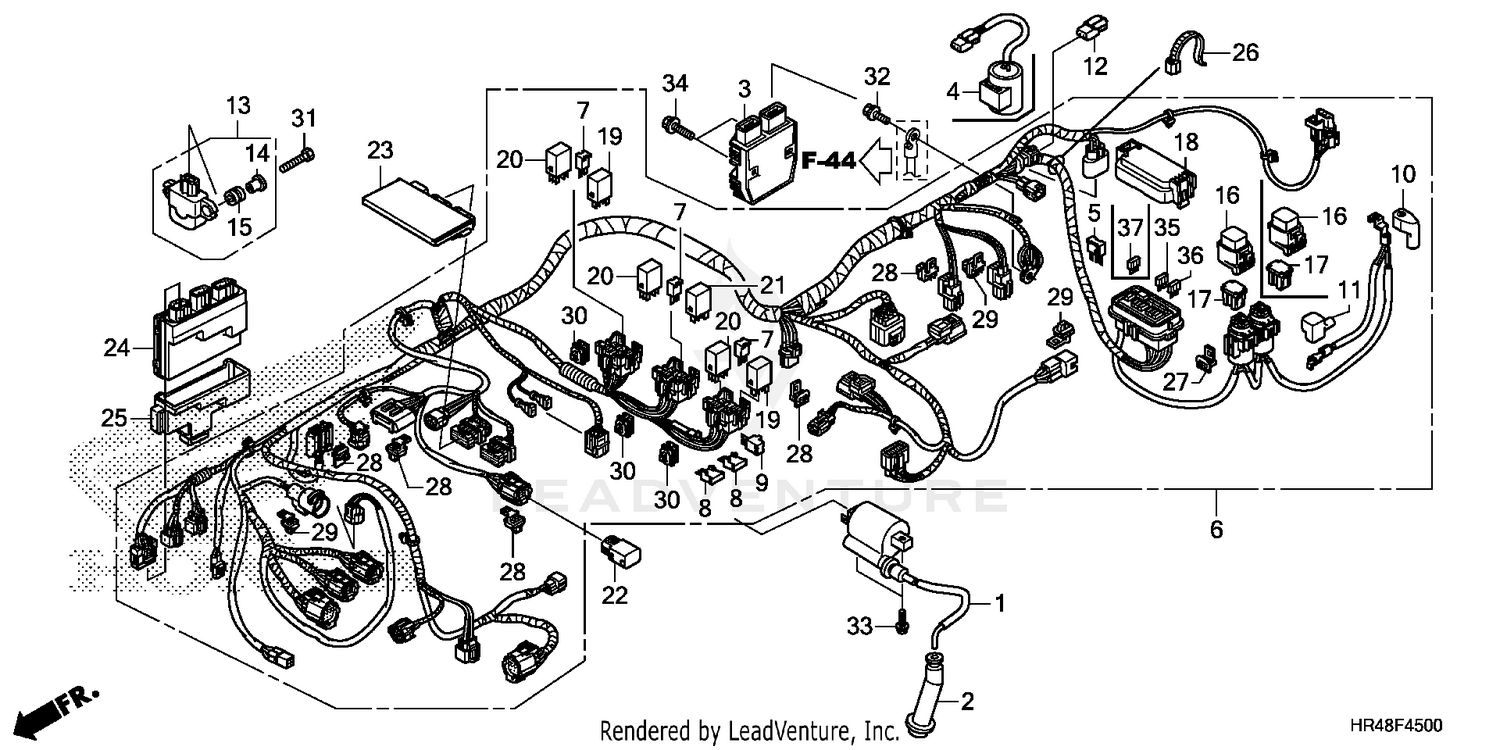

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION
30510-HR3-A21
|
$95.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-MBN-671
|
$33.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
RECTIFIER ASSY., REGULATOR
31600-MGZ-J01
|
$227.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE HARNESS
32100-HR4-650
|
$1,880.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR, DIODE (2P)
32146-SH3-003
|
$22.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIODE (3P)
32146-SJ4-003
|
$21.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTOR, DIODE (2P) (3A)
32146-S84-003
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, BATTERY TERMINAL
32405-MEC-000
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER A, TERMINAL
32412-HW1-670
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
CONNECTOR, DUMMY (2P 090 F) (BLACK)
32605-HR6-A60
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR ASSY., BANK ANGLE
35160-HR0-F01
|
$111.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
35162-MGC-003
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
35163-MGC-003
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER ASSY., FUSE (40A)
38205-HP0-B11
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE, BLOCK (40A)
38211-SNA-A21
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER SET, FUSE
38230-HR4-A40
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
RELAY, POWER (MICRO ISO 4P)
38501-MCS-G01
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
RELAY, POWER (MICRO ISO 5P)
38502-MCS-G01
|
$12.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
RELAY, POWER (MICRO ISO 4P)
38503-MCA-A61
|
$17.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
RELAY, DIFFLOCK PULLBACK
38580-HR4-A21
|
$54.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
PGM-FI UNIT
38770-HR4-BD1
|
$298.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
EPS UNIT
39980-HR4-A52
|
$506.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
CUSHION, EPS UNIT
39981-HN2-B70
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, CONNECTOR (NATURAL)
91533-STK-003
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP, CONNECTOR (DARK BLUE)
91535-STK-003
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, RELAY HOLDER (NATURAL)
91536-STK-003
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEX. (6X25) BOLT-WASHER (6X25)
92101-06025-0A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#35
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#36
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#37
FUSE, MINI (30A) (Honda Code 5359666)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
