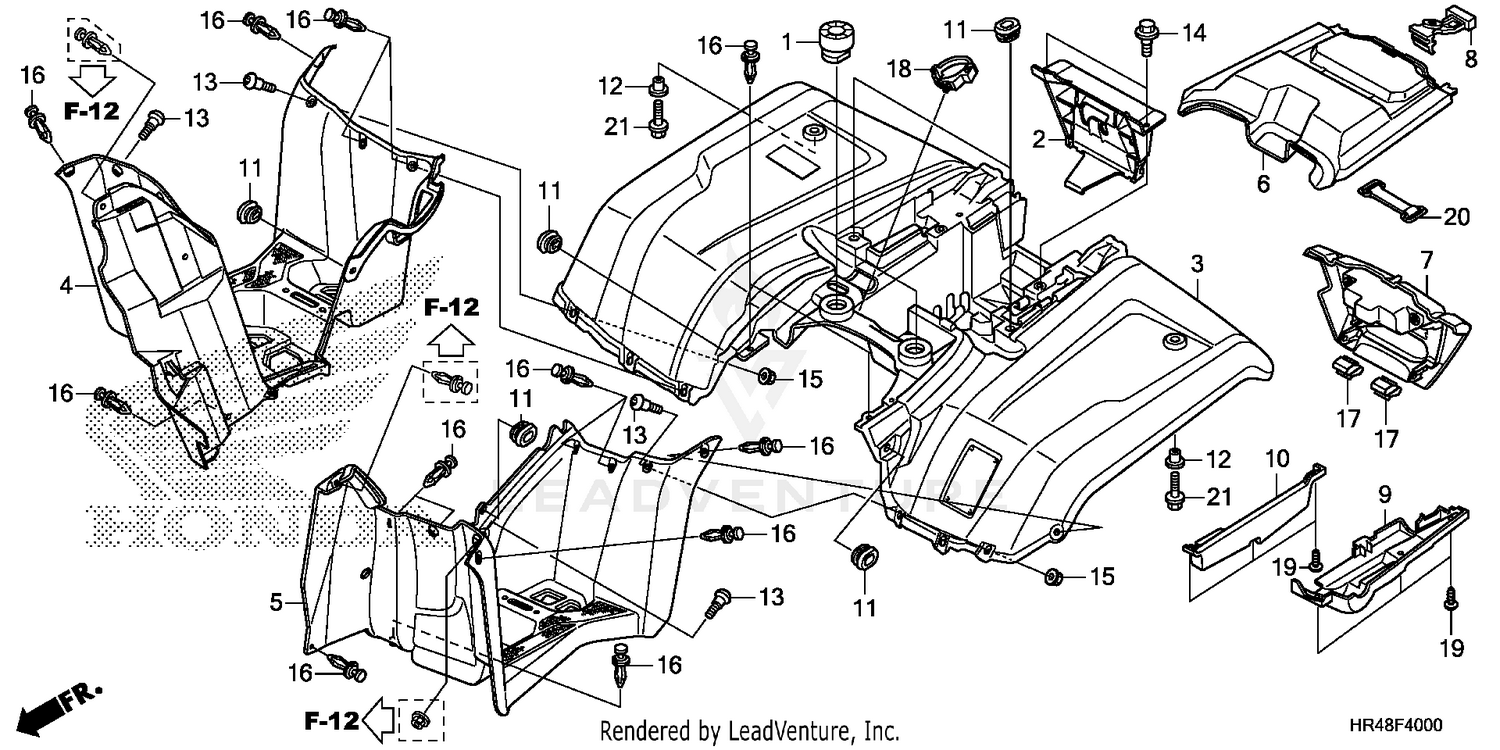

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, SEAT MOUNTING
77207-HA0-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, BATTERY
80101-HR3-A20
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SET ILLUST *YRA05L*
80110-HR4-B40ZA
Superseded by 80110-HR4-B41ZA
|
$644.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPLASH GUARD, R. CENTER *NH1* (BLACK)
80121-HR3-A20ZA
|
$93.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPLASH GUARD, L. CENTER *NH1* (BLACK)
80122-HR3-A20ZA
|
$56.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, RR. FENDER *NH1* (BLACK)
80210-HR3-A20ZA
|
$73.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
LID, TOOL BOX *NH1* (BLACK)
80211-HR3-A20ZA
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, TOOL BOX
80214-HM5-850
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR, RR. MUFFLER
80222-HR3-A20
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR, BATTERY (RR)
80223-HR3-A20
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET, SIDE COVER
83551-MA6-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, NUMBER BRACKET SETTING
84706-GB0-900
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW, SPECIAL (6X8)
90102-HN5-670
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6MM)
90111-147-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE (6MM)
90302-187-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLIP, CORD
90660-SB2-000
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, WIRE HARNESS (BLACK)
91556-SK7-003
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TAPPING (5X12)
93903-25220
|
$0.95 | ||
|
Unavailable |
|||
|
#20
BAND B2, BATTERY
95012-13001
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
