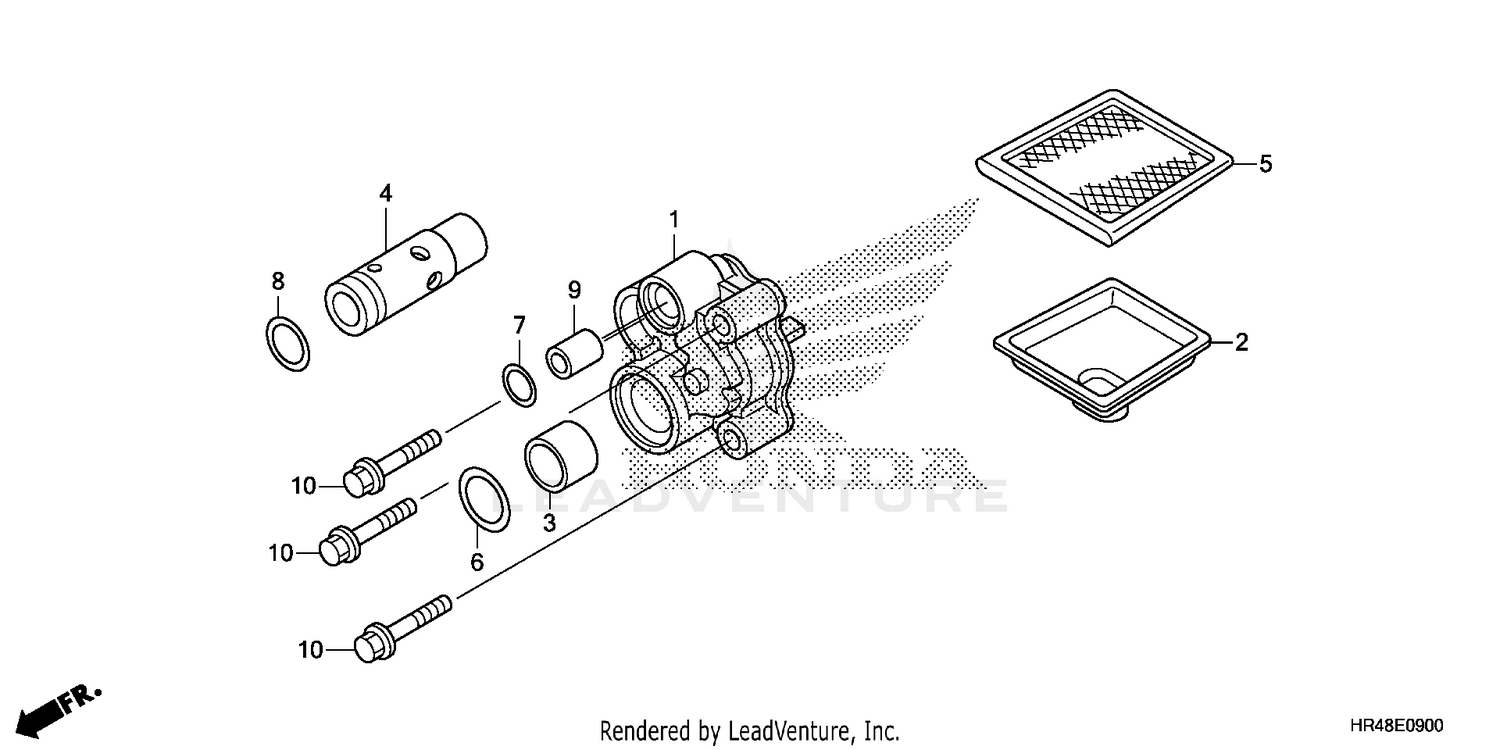

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., OIL
15100-HP5-600
|
$72.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
STRAINER, OIL
15153-HR0-F00
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, O-RING
15155-HP0-A00
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE ASSY., RELIEF
15220-HP5-600
|
$31.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREEN, OIL FILTER
15421-HR3-A40
|
$14.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING (15X2.5) (Honda Code 0386995)
91302-377-000
|
$6.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
O-RING (10X2) (ARAI)
91304-HA5-003
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (14.8X2.2)
91313-MB0-003
Superseded by 91313-MG7-004
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (14.8X2.2) (Honda Code 3353620)
91313-MG7-004
|
$4.62 | ||
|
Unavailable |
|||
|
#9
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X35)
95801-06035-00
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
