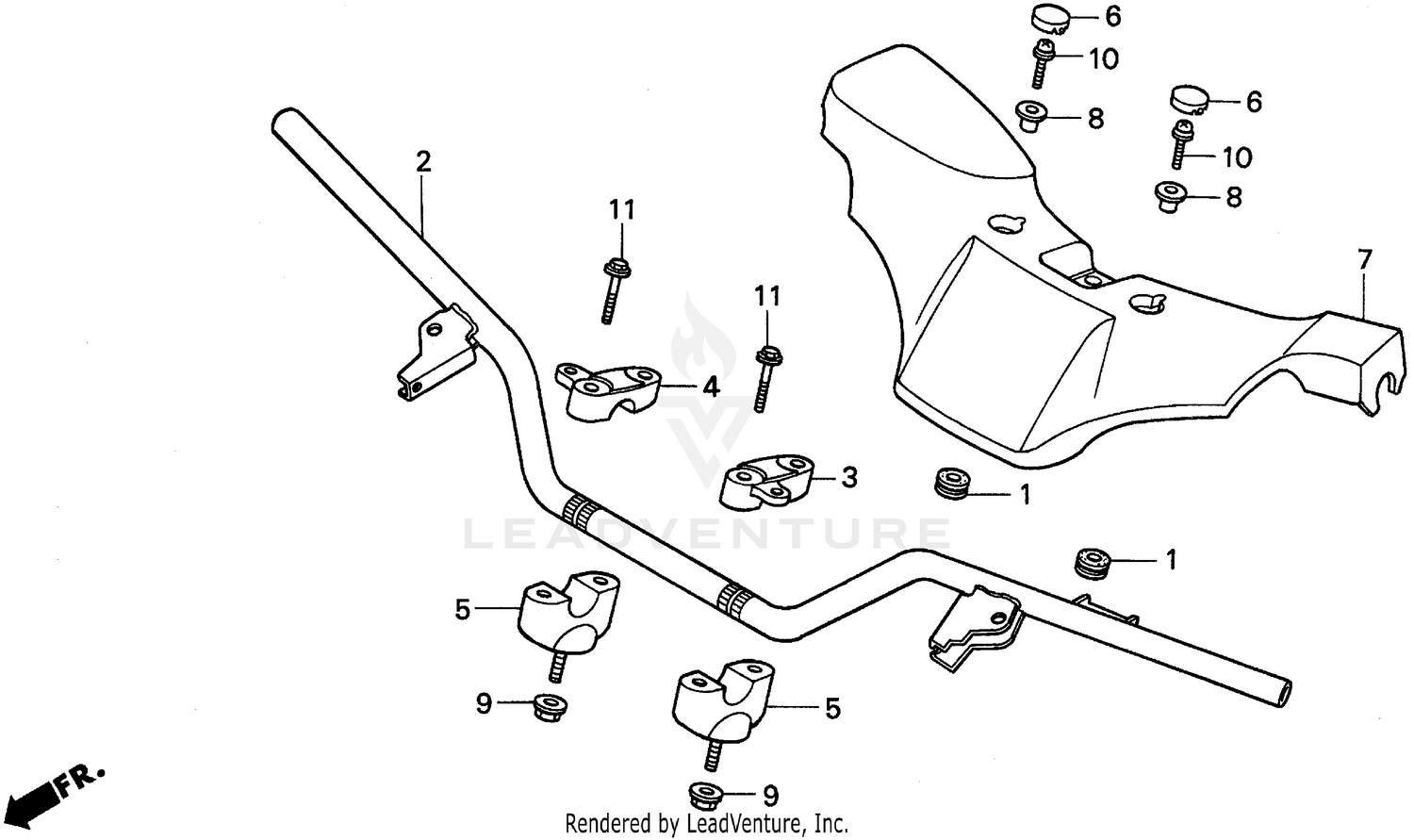

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, TAILLIGHT
33712-KT1-670
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
HANDLEBAR
53100-HF7-000
|
$66.43 | ||
|
Unavailable |
|||
|
#3
HOLDER, R. HANDLE (UPPER)
53111-HC3-000
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, L. HANDLE (UPPER)
53121-HC3-000
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, HANDLE (LOWER)
53130-HA0-680
|
$25.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, HANDLE COVER *R134* (FIGHTING RED)
53203-HC0-670ZB
|
$4.23 | ||
|
Unavailable |
|||
|
#6
CAP, HANDLE COVER *G152* (ADVENTURE GREEN) (NOT AVAILABLE)
53203-HC0-670ZD
|
$6.61 | ||
|
Unavailable |
|||
|
#7
COVER, HANDLE *R134* (FIGHTING RED)
53205-HF7-000ZA
|
$72.61 | ||
|
Unavailable |
|||
|
#7
COVER, HANDLE *G152* (ADVENTURE GREEN) (NOT AVAILABLE)
53205-HF7-000ZC
|
$74.07 | ||
|
Unavailable |
|||
|
#8
COLLAR, COVER SETTING
83601-357-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-WASHER (6X20)
93891-06020-08
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X35)
95701-08035-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
