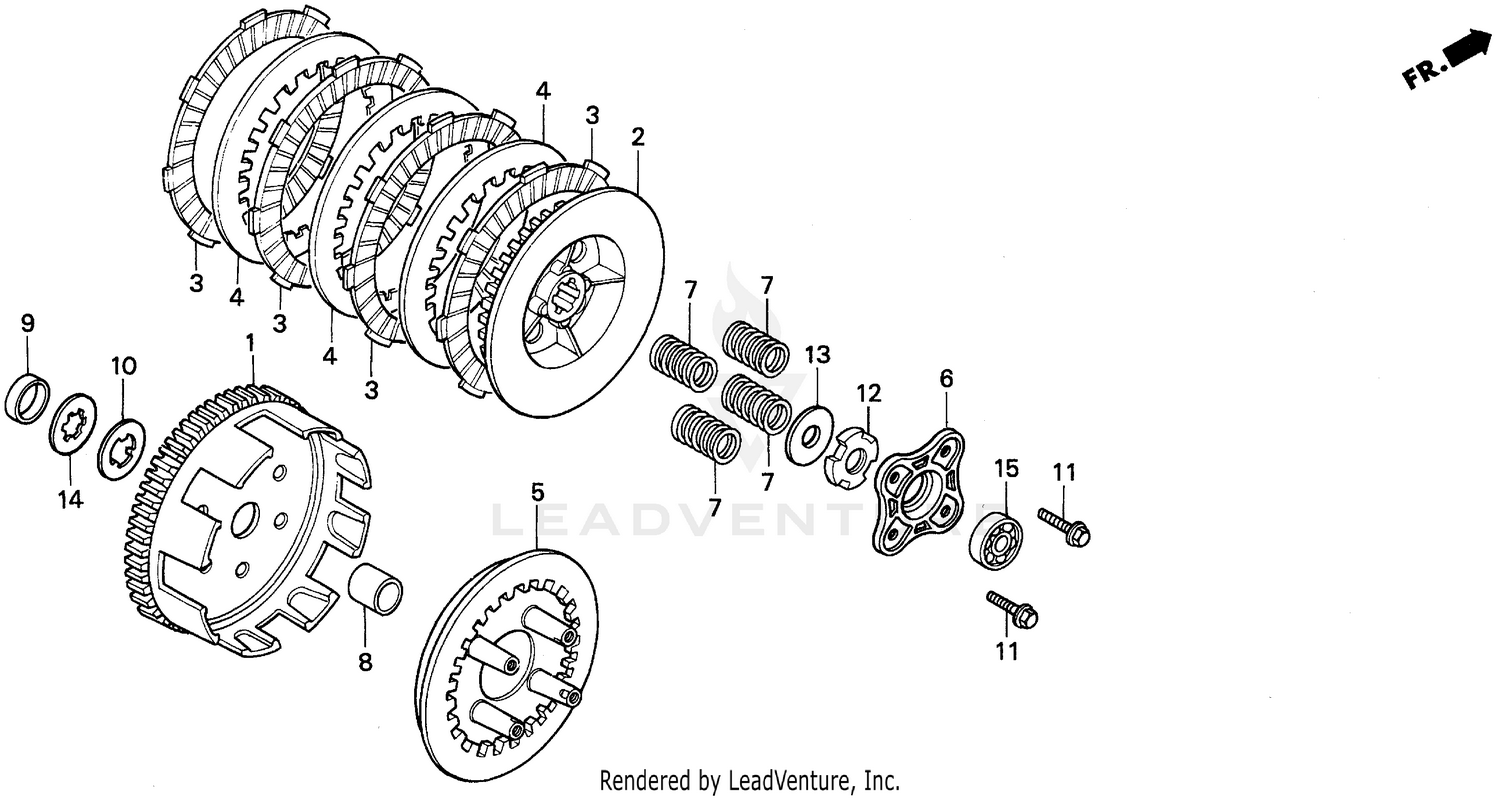

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH (OUTER)
22110-GN5-910
|
$258.65 | ||
|
Unavailable |
|||
|
#2
CENTER, CLUTCH
22120-GN5-910
|
$56.75 | ||
|
Unavailable |
|||
|
#3
DISK, CLUTCH FRICTION
22201-GN8-920
Superseded by 22201-MR8-000
|
$17.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
DISK, CLUTCH FRICTION
22201-GS2-000
Superseded by 22201-MR8-000
|
$17.93 | ||
|
Unavailable |
|||
|
#3
DISK, CLUTCH FRICTION
22201-MR8-000
|
$17.93 | ||
|
Unavailable |
|||
|
#4
PLATE, CLUTCH
22311-KN4-680
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, CLUTCH
22311-107-000
Superseded by 22311-KN4-680
|
$7.93 | ||
|
Unavailable |
|||
|
#5
PLATE, CLUTCH PRESSURE
22350-115-020
|
$49.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH LIFTER
22361-GN8-920
|
$18.85 | ||
|
Unavailable |
|||
|
#7
SPRING, CLUTCH
22401-GN5-910
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, CLUTCH
22401-GN8-920
Superseded by 22401-GN5-910
|
$6.56 | ||
|
Unavailable |
|||
|
#8
COLLAR, CLUTCH CENTER
23112-GN5-910
|
$21.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, DISTANCE
23216-GN5-910
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
SET-RING (17MM)
23217-GN5-910
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SPECIAL FLANGE (6X22)
90050-357-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT B, LOCK (14MM)
90231-198-000
Superseded by 90231-198-010
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT B, LOCK (14MM)
90231-198-010
|
$5.98 | ||
|
Unavailable |
|||
|
#13
WASHER B, LOCK
90432-086-000
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER B, SPLINE (17MM)
90462-GN5-910
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (6000)
96100-60000-00
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
