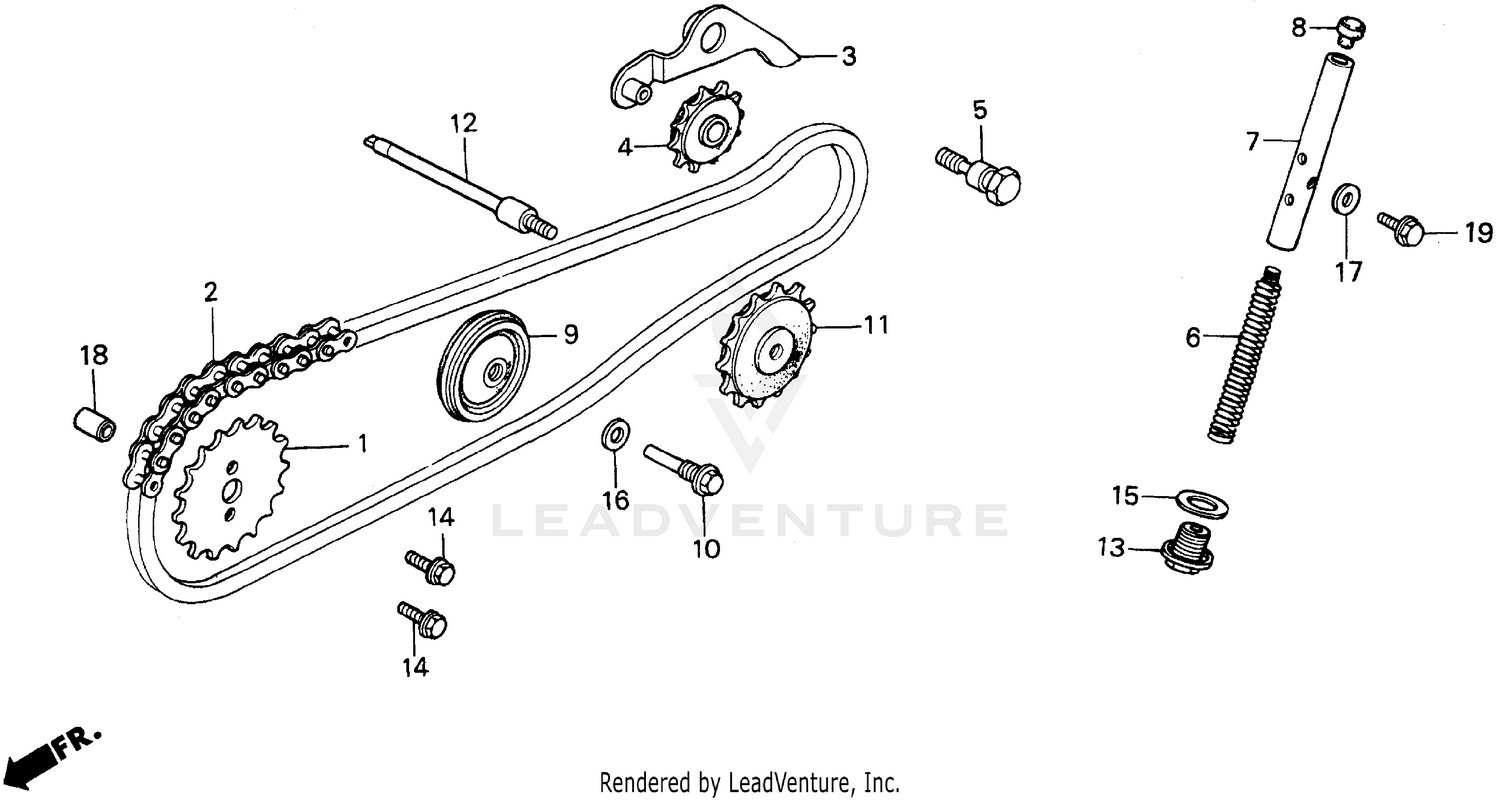

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, CAM (28T)
14321-GBG-900
|
$13.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, CAM (84L) (DAIDO)
14401-178-003
|
$53.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM, CAM CHAIN TENSIONER
14500-035-020
|
$33.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROLLER, CAM CHAIN TENSIONER
14502-086-000
|
$19.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIVOT, CAM CHAIN TENSIONER
14531-035-000
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, CAM CHAIN TENSIONER
14541-GB4-681
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, TENSIONER PUSH
14550-GB0-911
|
$25.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
HEAD, CAM CHAIN TENSIONER PUSH ROD
14566-086-030
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROLLER, CAM CHAIN GUIDE
14610-086-010
|
$24.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, CAM CHAIN GUIDE ROLLER
14615-035-010
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET, CAM CHAIN GUIDE (25T)
14670-GBJ-M30
|
$28.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET, CAM CHAIN GUIDE (25T)
14670-035-030
Superseded by 14670-GBJ-M30
|
$28.27 | ||
|
Unavailable |
|||
|
#12
SPINDLE, CAM CHAIN GUIDE SPROCKET
14675-178-000
|
$33.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SEALING (14MM)
90081-035-000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, KNOCK (5MM)
90083-GB6-911
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SEALING (14MM)
90441-035-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SEALING (6.2X12X1.2)
90461-357-000
Superseded by 90463-KRM-840
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SEALING (6.2X12X1.2)
90463-KRM-840
|
$1.43 | ||
|
Unavailable |
|||
|
#17
WASHER (8MM)
90481-035-000
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN A, DOWEL (8X12)
90702-GB6-910
Superseded by 94301-08120
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN A, DOWEL (8X12)
94301-08120
|
$2.40 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
