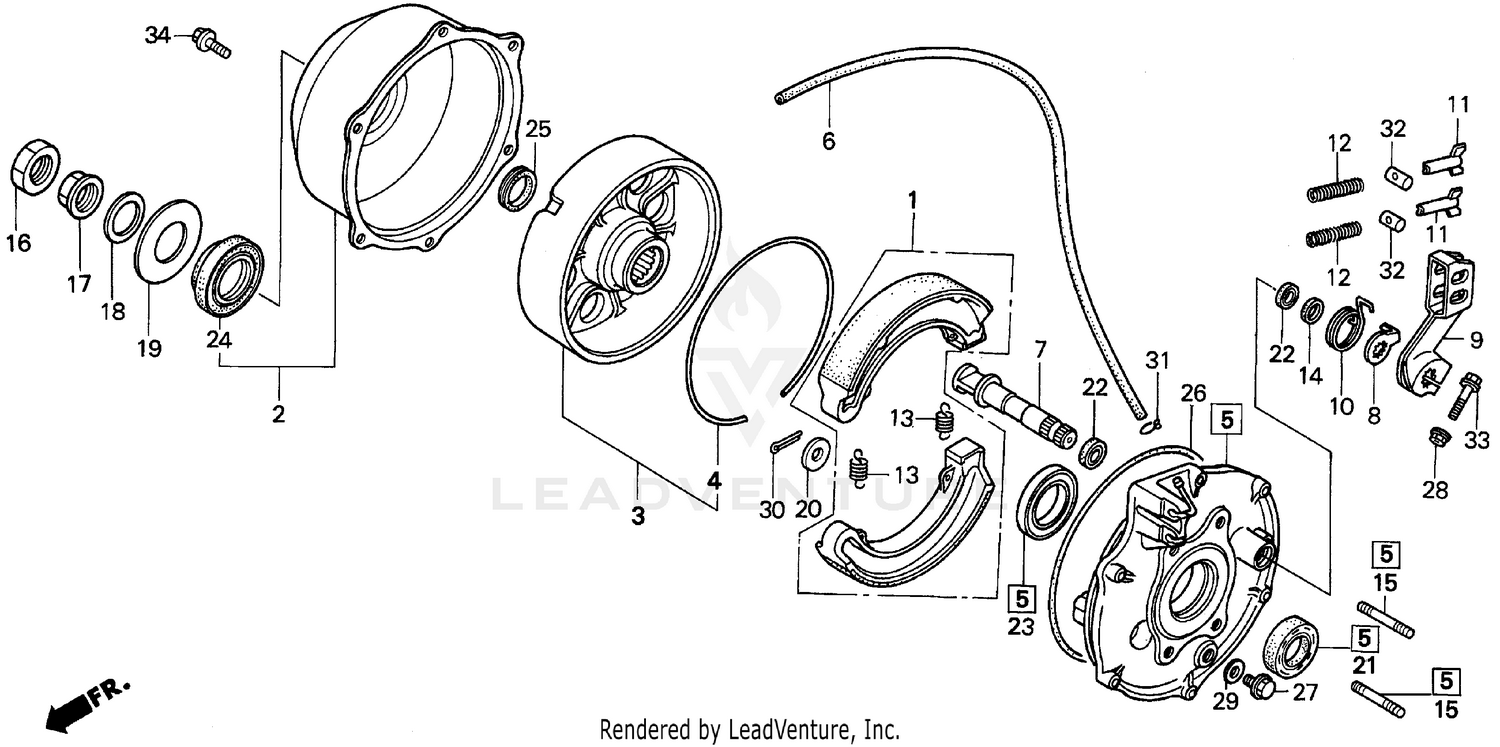

Rear Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOE SET, RR. BRAKE
06430-HM5-A80
|
$44.58 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHOE SET, RR. BRAKE
06430-HM5-T00
|
$42.98 | ||
|
Unavailable |
|||
|
#2
COVER ASSY., DRUM
40520-HM5-930
|
$75.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
DRUM ASSY., RR. BRAKE
42620-HC4-670
|
$386.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, DAMPER
42624-HC4-000
|
$31.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
PANEL SET, RR. BRAKE
43010-HM5-A10
|
$200.87 | ||
|
Unavailable |
|||
|
#5
PANEL SET, RR. BRAKE
43010-HM5-850
Superseded by 43010-HM5-A10
|
$200.87 | ||
|
Unavailable |
|||
|
#6
TUBE, BREATHER (3.5X1320)
43132-HC5-970
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM, RR. BRAKE
43141-HC5-670
|
$47.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
INDICATOR, RR. BRAKE
43145-HC4-000
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM, RR. BRAKE
43410-HC4-000
|
$38.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, RR. BRAKE ARM
43415-HC4-000
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, BRAKE ADJUSTING
43459-HM5-A10
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, RR. BRAKE ROD (NA USE ALT:95014-73100)
43467-HA0-000
|
$2.19 | ||
|
Unavailable |
|||
|
#13
SPRING, FR. BRAKE SHOE
45133-329-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUST SEAL, BRAKE CAM
45134-250-000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (10X25)
90137-HA7-770
|
$7.42 | ||
|
Unavailable |
|||
|
#15
BOLT, STUD (10X25)
90151-HC4-300
Superseded by 90137-HA7-770
|
$7.42 | ||
|
Unavailable |
|||
|
#16
NUT, RR. AXLE
90307-HM5-930
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT A, RR. AXLE
90308-HM5-930
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, TAPER
90481-HC4-000
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (32X86X1.5)
90501-HB3-000
|
$31.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6007)
91052-HB3-771
|
$53.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6007)
91054-HC4-003
|
$63.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUST SEAL (14X20X4) (NOK)
91208-HF7-005
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (44X62X9)
91252-HB3-003
Superseded by 91252-HM5-630
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL B (44X62X9)
91252-HM5-630
|
$20.22 | ||
|
Unavailable |
|||
|
#24
DUST SEAL (45X76X19)
91253-HC4-003
|
$19.22 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING, SEAL
91351-HB3-004
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (181X3.1) (ARAI)
91355-HC4-003
|
$19.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PIN, COTTER (2.0X22)
94201-20200
Superseded by 94201-29220
|
$1.08 | ||
|
Unavailable |
|||
|
#30
PIN, SPLIT (2.0X22)
94201-20220
|
$1.08 | ||
|
Unavailable |
|||
|
#30
PIN, COTTER (2.0X35)
94201-20250
Superseded by 94201-20350
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PIN, COTTER (2.0X35)
94201-20280
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#30
PIN, COTTER (2.0X35)
94201-20320
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#30
PIN, SPLIT (2.0X35)
94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#30
PIN, COTTER (2.0X22)
94201-29220
|
$1.08 | ||
|
Unavailable |
|||
|
#31
CLIP, TUBE (C6.5)
95002-35000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#32
JOINT B, BRAKE ARM
95015-32001
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X16)
96001-06016-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
