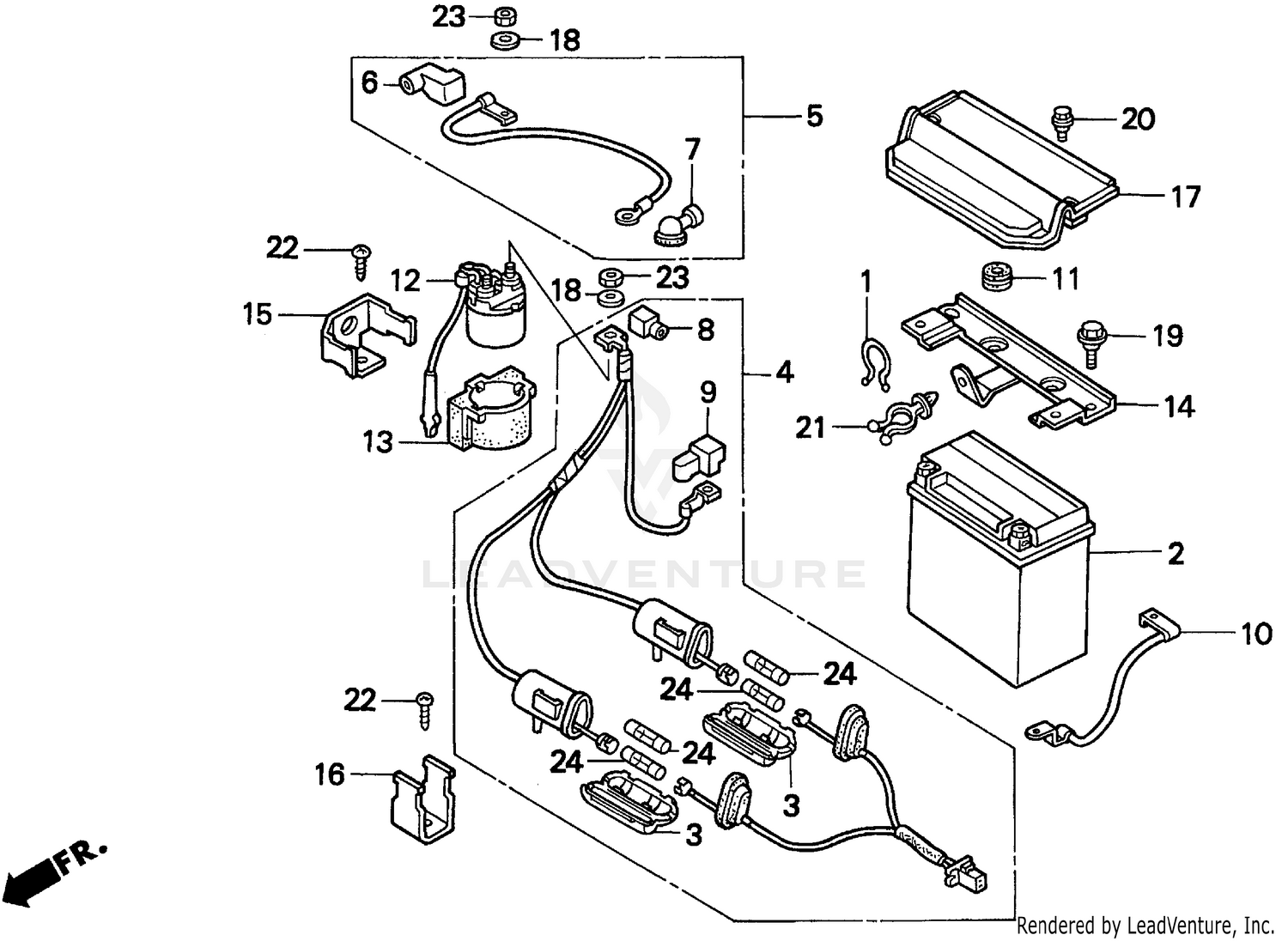

Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, TUBE (26)
17916-PE1-671
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
BATTERY YTX14-BS
31500-HC4-726
Superseded by 31500-HL5-F62AH
|
$135.02 | ||
|
Unavailable |
|||
|
#2
BATTERY (YTX14-BS) (YUASA) (MSDS)
31500-HC4-726AH
|
$135.02 | ||
|
Unavailable |
|||
|
#2
BATTERY YTX14-BS
31500-HM5-631
Superseded by 31500-HL5-F62AH
|
$135.02 | ||
|
Unavailable |
|||
|
#3
CASE, FUSE (15A)
32120-465-770
|
$6.23 | ||
|
Unavailable |
|||
|
#4
CABLE, BATTERY RELAY (NOT AVAILABLE)
32401-HC4-000
|
$100.18 | ||
|
Unavailable |
|||
|
#5
CABLE, STARTER MOTOR
32402-HM5-730
|
$19.25 | ||
|
Unavailable |
|||
|
#6
COVER A, STARTING MAGNETIC
32404-HM5-730
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, TERMINAL
32411-473-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, MAGNETIC SWITCH TERMINAL
32412-HB6-000
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER A, BATTERY TERMINAL
32414-MM9-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, BATTERY GROUND
32601-HM5-730
|
$17.28 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, TAILLIGHT MOUNTING
33715-965-000
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
SW, STARTER MAGNETIC
35850-HC4-000
Superseded by 35850-HC4-003
|
$134.00 | ||
|
Unavailable |
|||
|
#13
RUBBER, MAGNETIC SHOCK
35856-425-000
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, BATTERY HOLDER (NOT AVAILABLE)
50311-HC4-670
|
$22.40 | ||
|
Unavailable |
|||
|
#15
STAY, STARTER MAGNETIC
50326-HC4-000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, FUSE (NOT AVAILABLE)
50327-HC4-000
|
$5.25 | ||
|
Unavailable |
|||
|
#17
COVER, BATTERY BOX *G152* (ADVENTURE GREEN)
80311-HM4-A10ZA
|
$43.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, BATTERY BOX *YR176* (HARVEST BEIGE)
80311-HM4-A10ZD
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, BATTERY BOX *R232* (PATRIOT RED)
80311-HM4-A10ZC
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING (6MM)
90052-ZA0-800
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6MM)
90111-KM1-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6MM)
90111-147-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP, HARNESS
90119-HA7-670
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TAPPING (5X12)
93903-25220
|
$0.95 | ||
|
Unavailable |
|||
|
#23
NUT, HEX. (6MM)
94002-06390-0S
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE B (15A)
98200-21500
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
