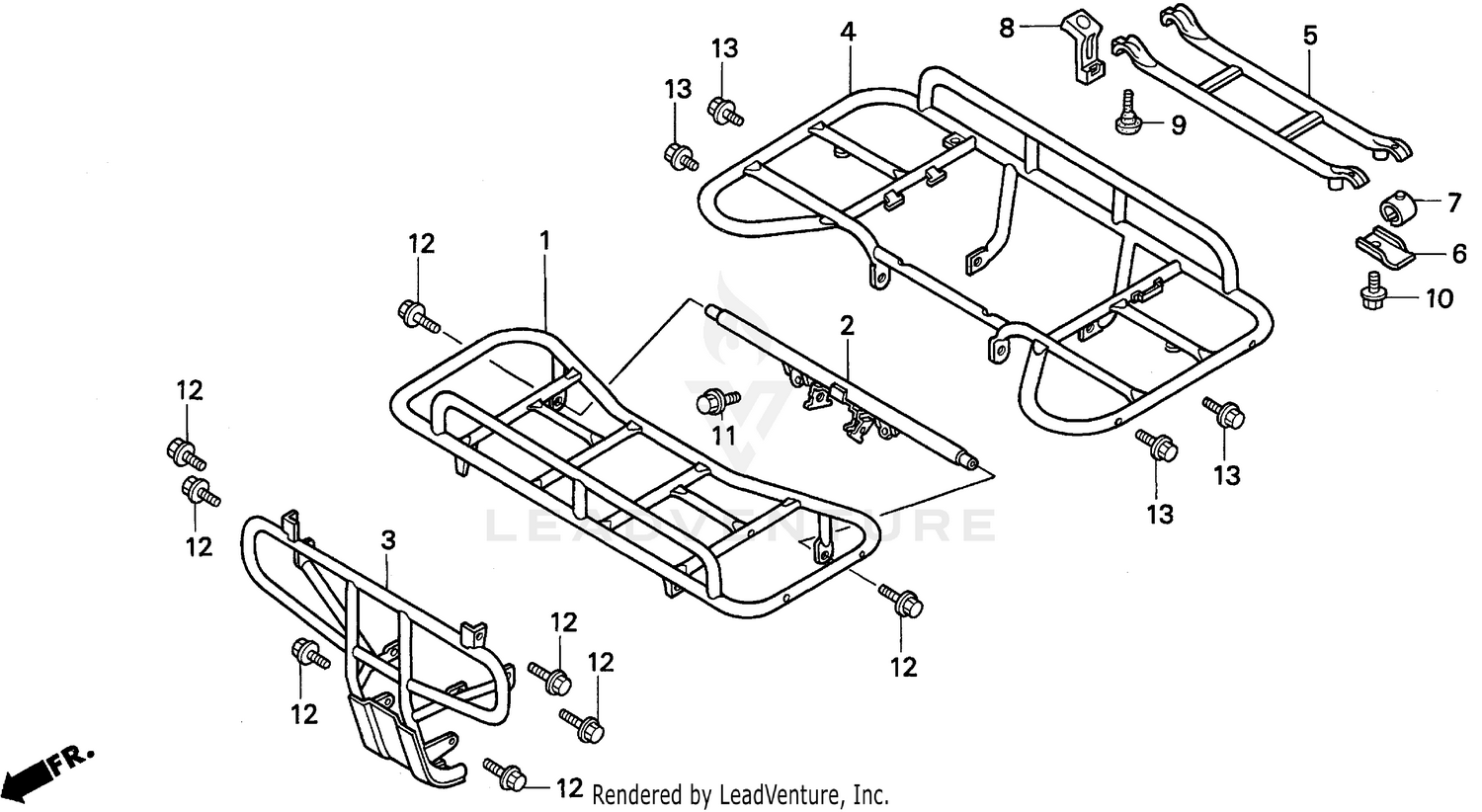

Carrier Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARRIER, FR. LUGGAGE
81100-HM5-850
|
$343.59 | ||
|
Unavailable |
|||
|
#2
STAY, FR. CARRIER
81110-HC5-970
|
$44.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, FR. CARRY
81150-HC5-970
|
$175.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARRIER, RR. LUGGAGE
81300-HM5-850
|
$298.69 | ||
|
Unavailable |
|||
|
#5
SUB-CARRIER, LUGGAGE
81306-HC4-900
|
$146.14 | ||
|
Unavailable |
|||
|
#6
BRACKET, SUB-CARRIER
81307-HM5-850
Superseded by 81307-958-680
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, SUB-CARRIER
81307-958-680
|
$10.35 | ||
|
Unavailable |
|||
|
#7
SPACER, SUB-CARRIER
81308-958-680
|
$11.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BAND, SUB-CARRIER
81309-HF1-750
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, SUB-CARRIER
81310-HA0-680
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X14)
95701-06014-07
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X14)
95701-08014-07
|
$1.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (10X16)
95701-10016-07
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
