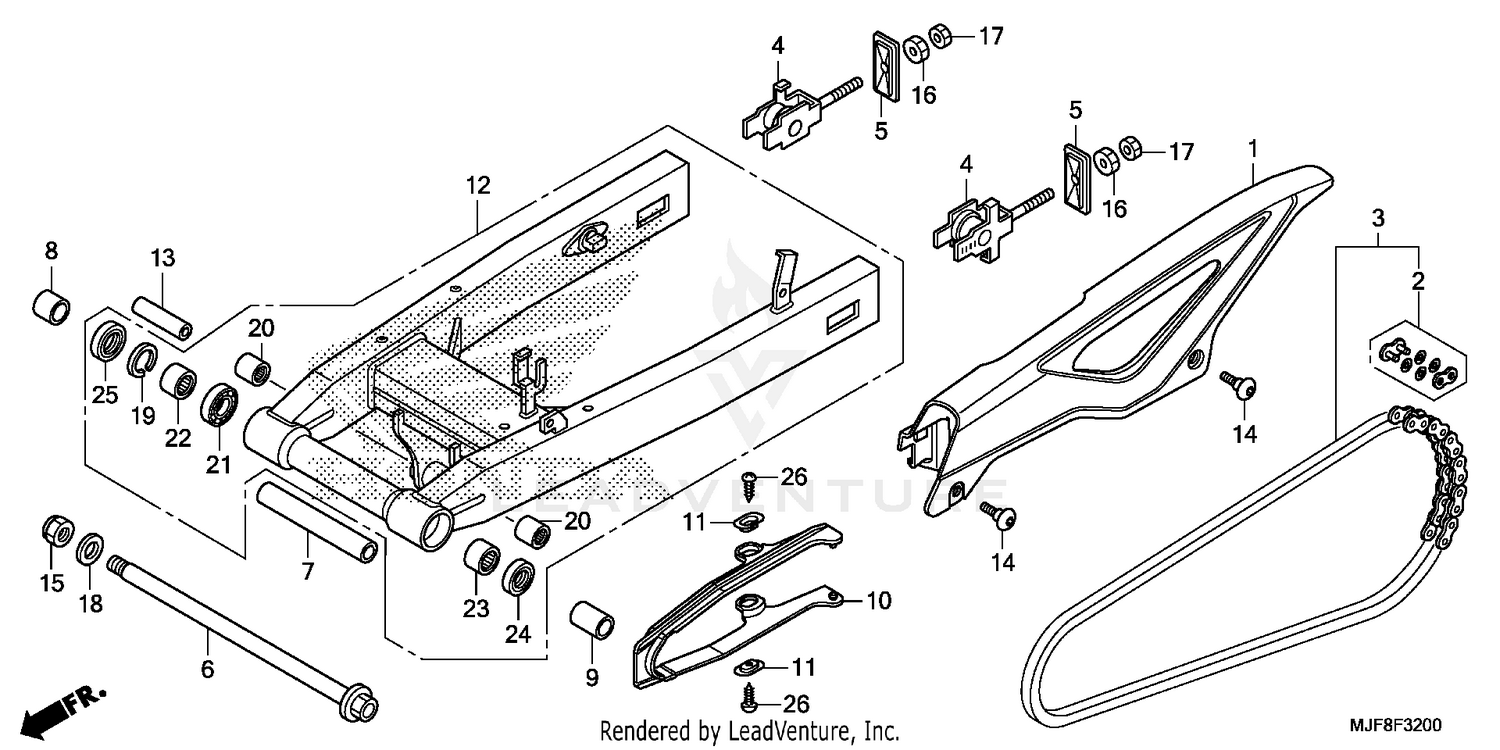

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, DRIVE CHAIN
40510-MGS-D30
|
$131.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK (RK EXCEL)
40531-MJF-A02
|
$15.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK (DAIDO)
40545-MGS-D31
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)
40540-MGS-D31
|
$264.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, DRIVE (RK520KHO-120LJFZ) (RK EXCEL) (STANDARD LINK 112L) (STANDARD LINK 114L)
40540-MJF-A02
|
$260.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
ADJUSTER, CHAIN
40543-MGS-D30
|
$38.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, SWINGARM END
40546-MGS-D30
|
$24.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SWINGARM PIVOT
52101-MGS-D30
|
$45.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, PIVOT DISTANCE CENTER
52141-MGS-D10
|
$39.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, R. PIVOT DISTANCE
52142-MGS-D10
|
$21.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, L. PIVOT DISTANCE
52143-MGS-D10
|
$22.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
SLIDER, CHAIN
52170-MGS-D30
|
$51.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SWINGARM SUB-ASSY., RR.
52200-MGS-D71
|
$1,323.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR B, CUSHION ARM
52463-MGS-D10
|
$15.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (6X14)
90106-KBV-000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U (18MM)
90301-MJF-A01
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (8MM)
90302-MBZ-G00
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. (8MM)
90303-MBZ-G00
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (20X31.5X2)
90401-MAS-000
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP (INNER) (37)
90651-MEW-920
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (17X24X30)
91052-MGS-D31
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (20X37X9)
91054-MGS-D31
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, NEEDLE (30X37X20)
91055-MGS-D31
|
$21.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE
91071-MR7-003
|
$31.11 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (28X37X4)
91202-MR7-003
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUST SEAL (30X37X4)
91253-KZ3-861
|
$10.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SCREW, TAPPING (5X12)
93901-25280
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
