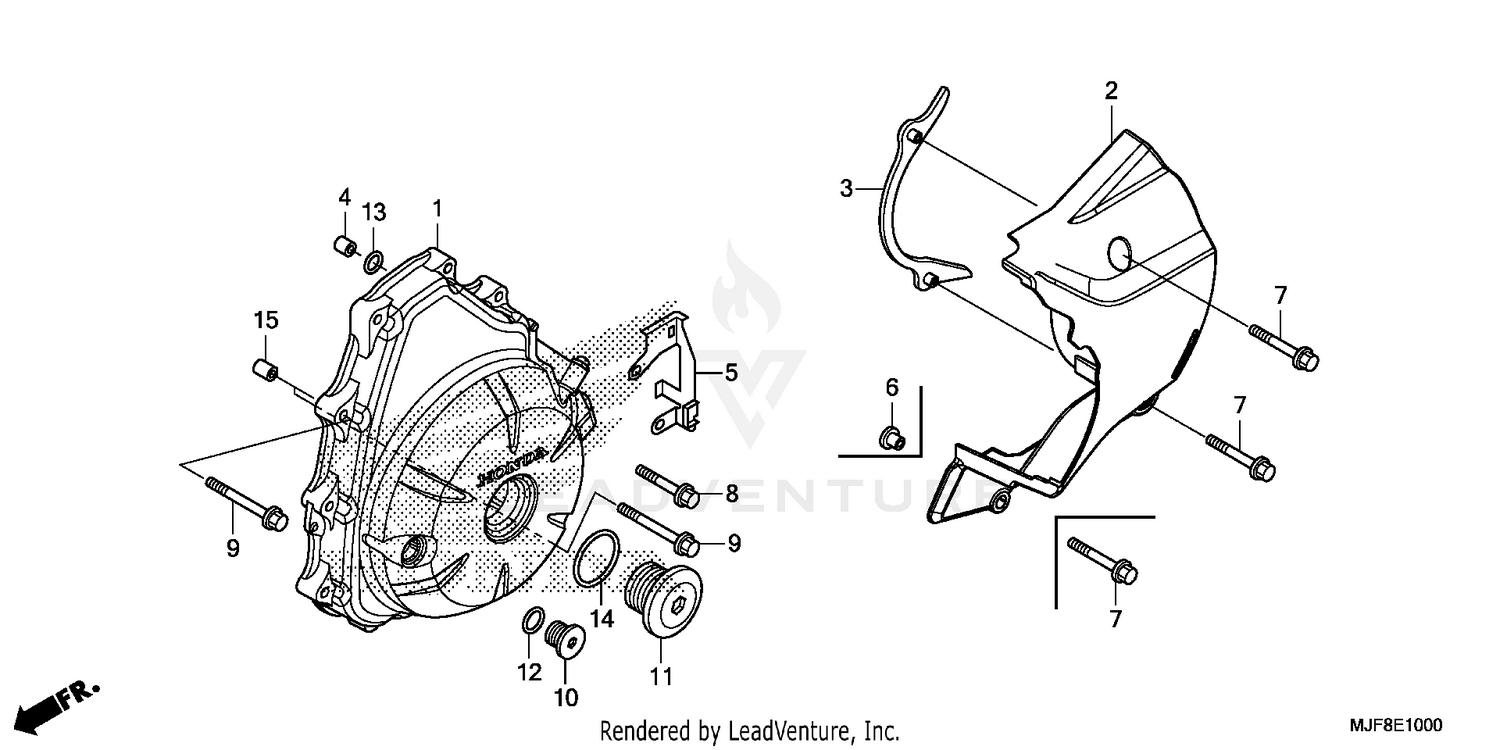

Alternator Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, ALTERNATOR
11320-MKA-D50
|
$227.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. RR.
11351-MJF-A20
|
$88.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, DRIVE CHAIN GUIDE
11355-MGS-D30
|
$22.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
ORIFICE (0.8MM)
15516-MGS-D30
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, L. RR. COVER
32153-MGS-D30
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X25) (NSHF)
90006-GHB-670
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X28) (NSHF)
90006-GHB-680
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X35) (NSHF)
90006-GHB-700
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP (14MM)
90084-MN8-010
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP (30MM)
90087-MR1-000
|
$24.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SEAL, PLUG (11.5X7) O-RING (4.9X1.9) O-RING (7.8X2.2)
91301-PC9-003
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (7.7X2.3) (ARAI)
91308-283-000
Superseded by 91301-PC9-003
|
$3.50 | ||
|
Unavailable |
|||
|
#13
O-RING (7.7X2.3) (ARAI)
91313-393-003
Superseded by 91301-PC9-003
|
$3.50 | ||
|
Unavailable |
|||
|
#14
O-RING (29X2.4) (NOK)
91344-PC9-004
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
