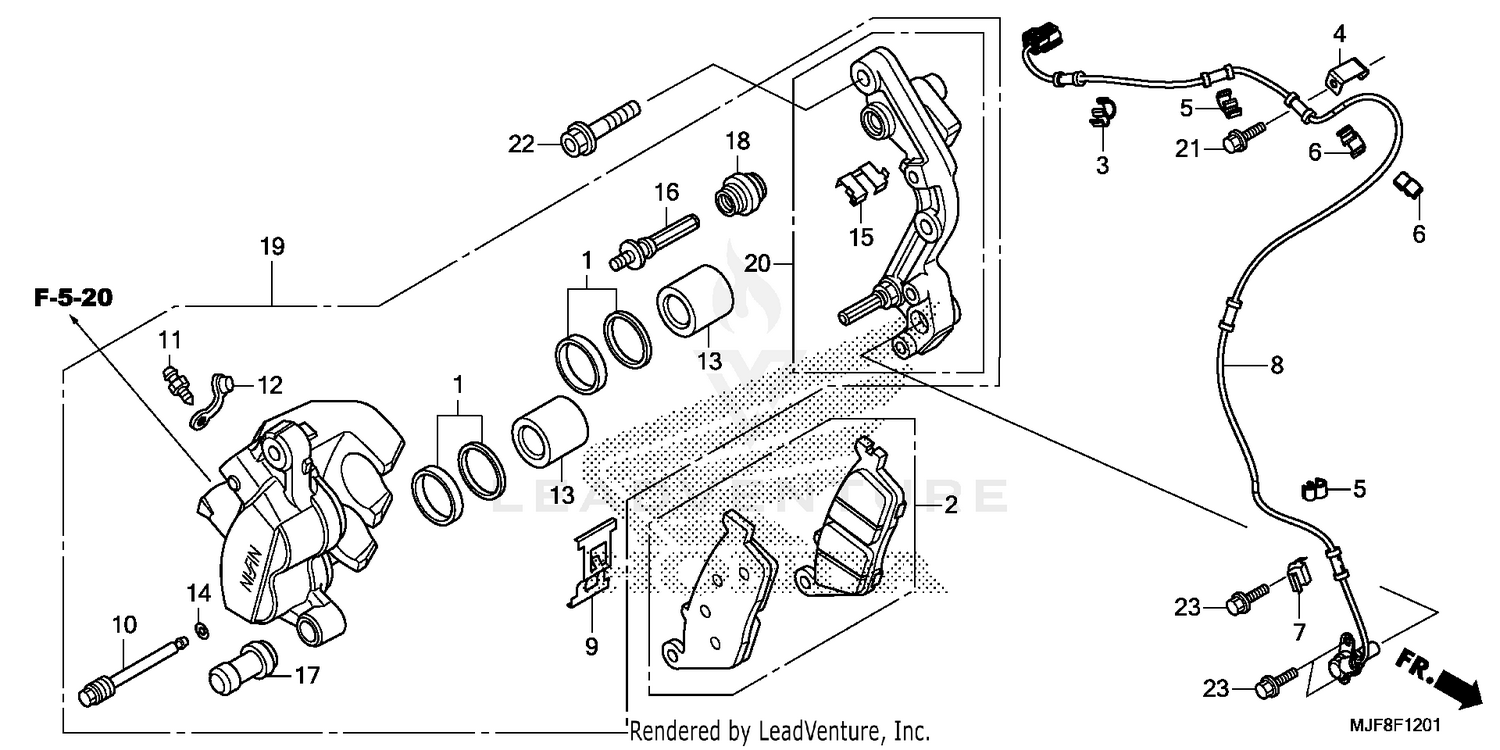

Front Brake Caliper (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (RIGHT SIDE, QTY-1)
06431-MA3-405
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, FR.
06455-MGS-D32
|
$60.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, PIPE
11152-KS4-003
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, SENSOR WIRE
38514-MJF-C10
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, ABS WIRE (D8.5)
38516-MGE-003
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, ABS WIRE (D12)
38517-MGE-003
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, SENSOR WIRE
38517-MGS-D80
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR, FR. WHEEL SPEED
38520-MJF-C11
|
$257.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, PAD
43108-MCT-006
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, HANGER
43215-KZ4-J41
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON (NISSIN)
45107-ML4-006
|
$45.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, STOPPER
45111-MAJ-G41
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
RETAINER
45112-ML7-921
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT A, PIN (NISSIN)
45131-ML7-921
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CALIPER SUB-ASSY., R. FR. (NISSIN)
45250-MGZ-J11
|
$201.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET SUB-ASSY., R. FR.
45290-MGZ-J11
|
$57.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X18)
90112-MEL-000
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X32) (SAGA)
90131-KBV-003
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X16)
96001-06016-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
