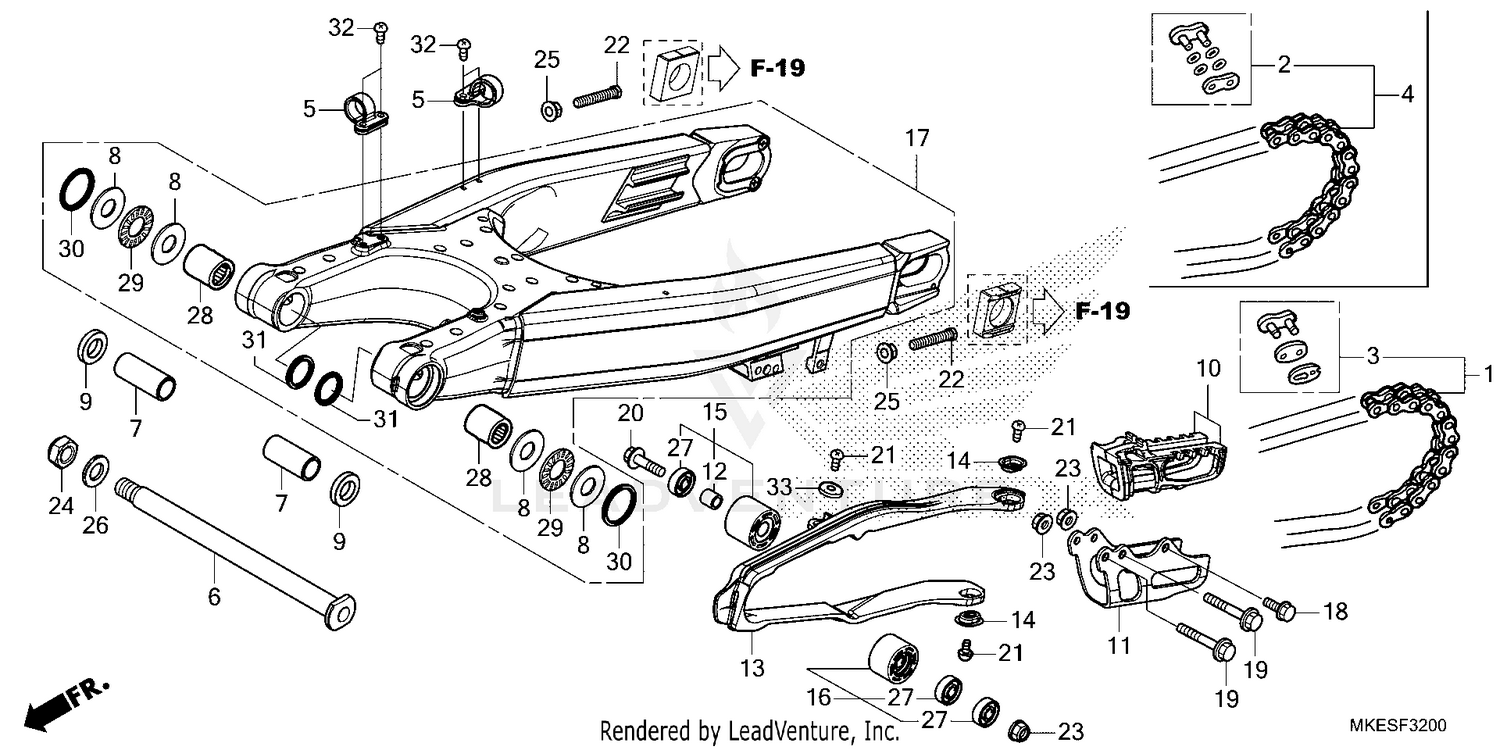

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
MASTER LINK (RK)(SEAL TYPE)
40531-MKE-A12
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN, DRIVE (RK520EXU-120-LJFZ) (RK) (STANDARD LINK 114L)
40540-MKE-A12
|
$230.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE A, BRAKE HOSE
43468-KRN-C90
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, SWINGARM PIVOT
52101-KZ4-J40
|
$31.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, SWINGARM (47MM)
52141-MKE-A70
|
$25.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SWINGARM SIDE THRUST
52143-MEN-A30
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, SWINGARM PIVOT SIDE
52143-MKE-A60
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE SET, CHAIN
52146-MKE-A01
|
$38.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CHAIN GUIDE
52147-MEN-J00
|
$57.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, CHAIN TENSIONER
52160-MEN-000
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLIDER, CHAIN
52170-K95-AG0
|
$45.25 | ||
|
Unavailable |
|||
|
#14
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
ROLLER, CHAIN (34MM)
52175-MKE-A00
|
$61.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROLLER, CHAIN (LOWER) (34MM)
52176-MKE-A00
|
$61.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWINGARM SUB, RR.
52200-K95-AG0
|
$806.67 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (6X12)
90020-GHB-620
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X45)
90020-GHB-750
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X32)
90101-MEN-A70
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (5X8)
90101-MKE-A70
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (8X47.5)
90105-MEN-000
|
$3.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT, U HEX. (14MM)
90305-KZ3-B01
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (10MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER (26X14X2.8)
90501-GAH-000
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (26X14X2.8)
90501-GBL-730
Superseded by 90501-GAH-000
|
$8.33 | ||
|
Unavailable |
|||
|
#27
BEARING, RADIAL BALL (608UU)
91051-KRN-A31
|
$15.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, NEEDLE (THOMPSON)
91071-MJ0-003
Superseded by 91071-MJ0-004
|
$44.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, NEEDLE (THOMPSON)
91071-MJ0-004
|
$44.65 | ||
|
Unavailable |
|||
|
#29
BEARING, NEEDLE THRUST
91072-KZ3-861
|
$16.31 | ||
|
Available to order. Add to View Price |
|||
|
#30
DUST SEAL (30X37X3)
91251-MKE-A01
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#31
DUST SEAL (22X29X3)
91252-MKE-A01
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN (5X8)
93500-05008-0G
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN (5MM)
94103-05700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
