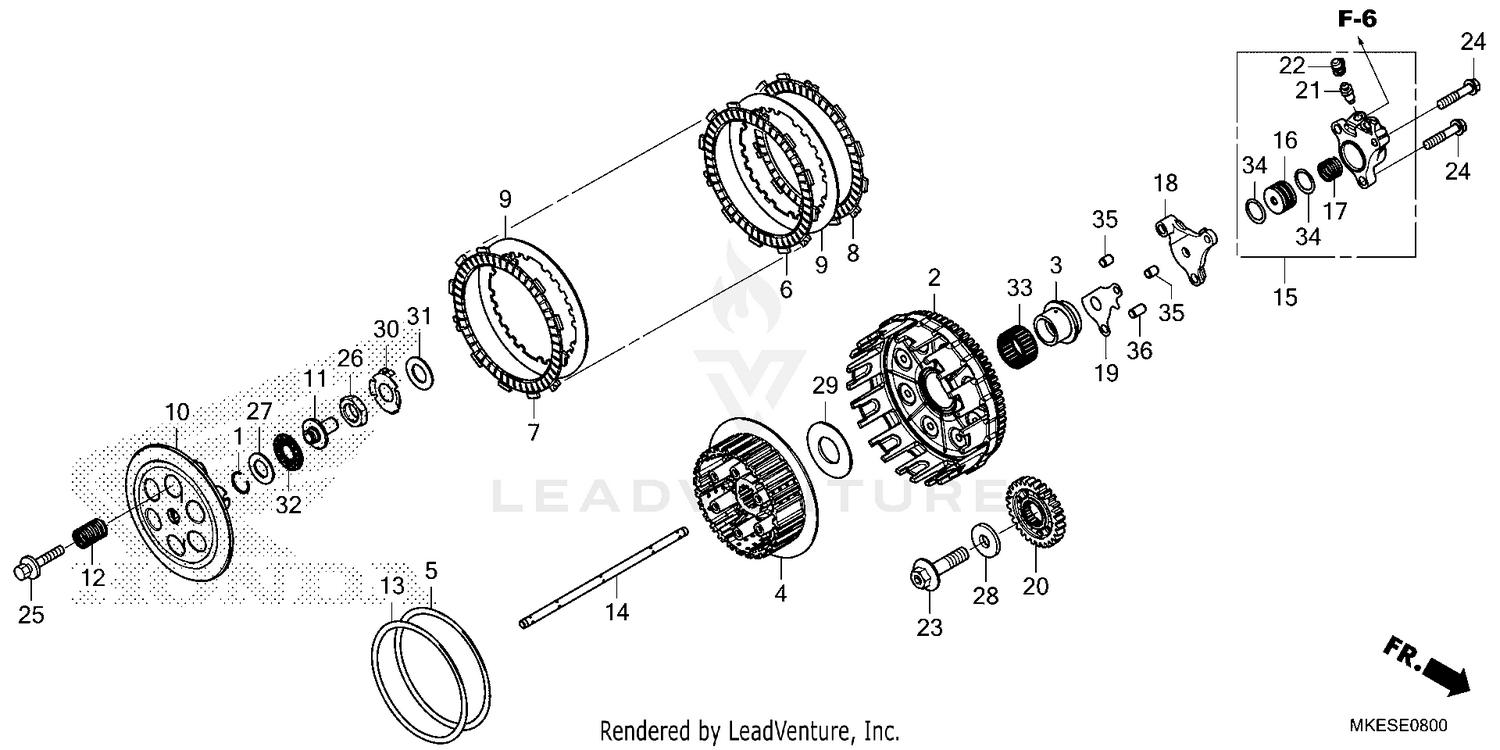

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, PISTON PIN (10MM)
13115-147-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH OUTER
22100-MKE-BD0
|
$293.22 | ||
|
Unavailable |
|||
|
#3
GUIDE, CLUTCH (OUTER)
22116-MKE-AF0
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
CENTER, CLUTCH
22120-MKE-AF0
|
$123.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT, JUDDER SPRING
22125-MBN-670
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK B, CLUTCH FRICTION
22201-MEN-670
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
DISK, CL FRICTION
22202-MKE-BD0
|
$12.22 | ||
|
Unavailable |
|||
|
#8
DISK B, CL FRICTION
22203-MKE-BD0
|
$12.22 | ||
|
Unavailable |
|||
|
#9
PLATE B, CLUTCH
22321-KZ3-690
|
$19.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH PRESSURE
22351-MKE-A70
|
$71.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, CLUTCH LIFTER
22352-MKE-A70
|
$49.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, CLUTCH
22401-MKE-AF0
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, JUDDER
22402-MBN-670
|
$25.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, CLUTCH LIFTER
22850-MKE-BD0
|
$49.15 | ||
|
Unavailable |
|||
|
#15
CYLINDER ASSY., SLAVE
22860-MKE-AF1
|
$247.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
PISTON, SLAVE CYLINDER
22862-MKE-AF1
|
$59.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, SLAVE CYLINDER
22863-MKE-AF1
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER, SLAVE CYLINDER
22866-MKE-AF0
|
$34.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET B, SLAVE CYLINDER
22867-MKE-AF0
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, PRIMARY DRIVE (28T)
23121-MKE-A00
|
$98.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SPECIAL (12X47)
90013-MEY-670
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X32)
90020-GHB-710
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT-WASHER (6X35)
90024-MEN-A70
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT (18MM)
90235-MEN-A30
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER (12.1X25X1)
90401-MKE-A70
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (12MM)
90402-KW6-960
|
$6.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER (23X43X3)
90421-MKE-A50
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, LOCK (18MM)
90461-KZ3-J10
|
$7.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER (18X32X2)
90501-ML3-910
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, NEEDLE (12MM) (NTN)
91001-147-003
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, NEEDLE (30X35X17)
91022-MB0-003
|
$42.36 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING (21.1X2.45)
91301-MKE-AF1
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
