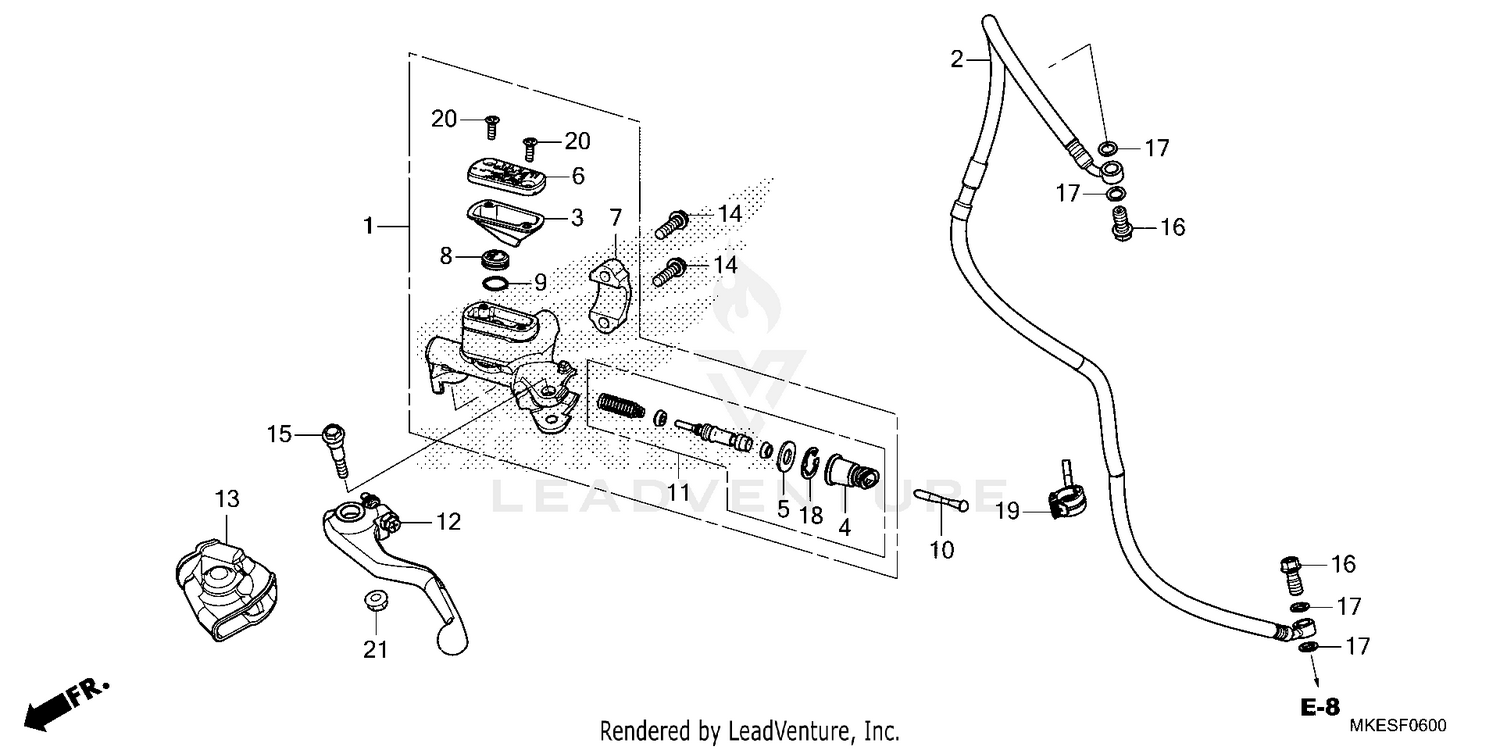

Clutch Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB-ASSY., CLUTCH
22890-MKE-AF1
|
$243.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, CLUTCH
22900-MKE-AF1
|
$66.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM
43521-MJT-E01
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
45504-MEN-J01
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, STOPPER
45512-MKE-AF1
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, MASTER CYLINDER
45513-MKE-AF1
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, MASTER CYLINDER
45517-GW0-751
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEPARATOR
45518-MEN-J01
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING
45523-KA3-731
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
PUSH ROD, CLUTCH MASTER CYLINDER
45525-MKE-AF1
|
$10.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON SET, MASTER CYLINDER
45530-MKE-AF1
|
$73.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER ASSY., L. HANDLE
53180-MKE-AF1
|
$54.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X22)
90020-GHB-670
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, LEVER PIVOT
90114-MKE-AG1
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, HARNESS (BLACK)
91559-S5A-003
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#21
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
