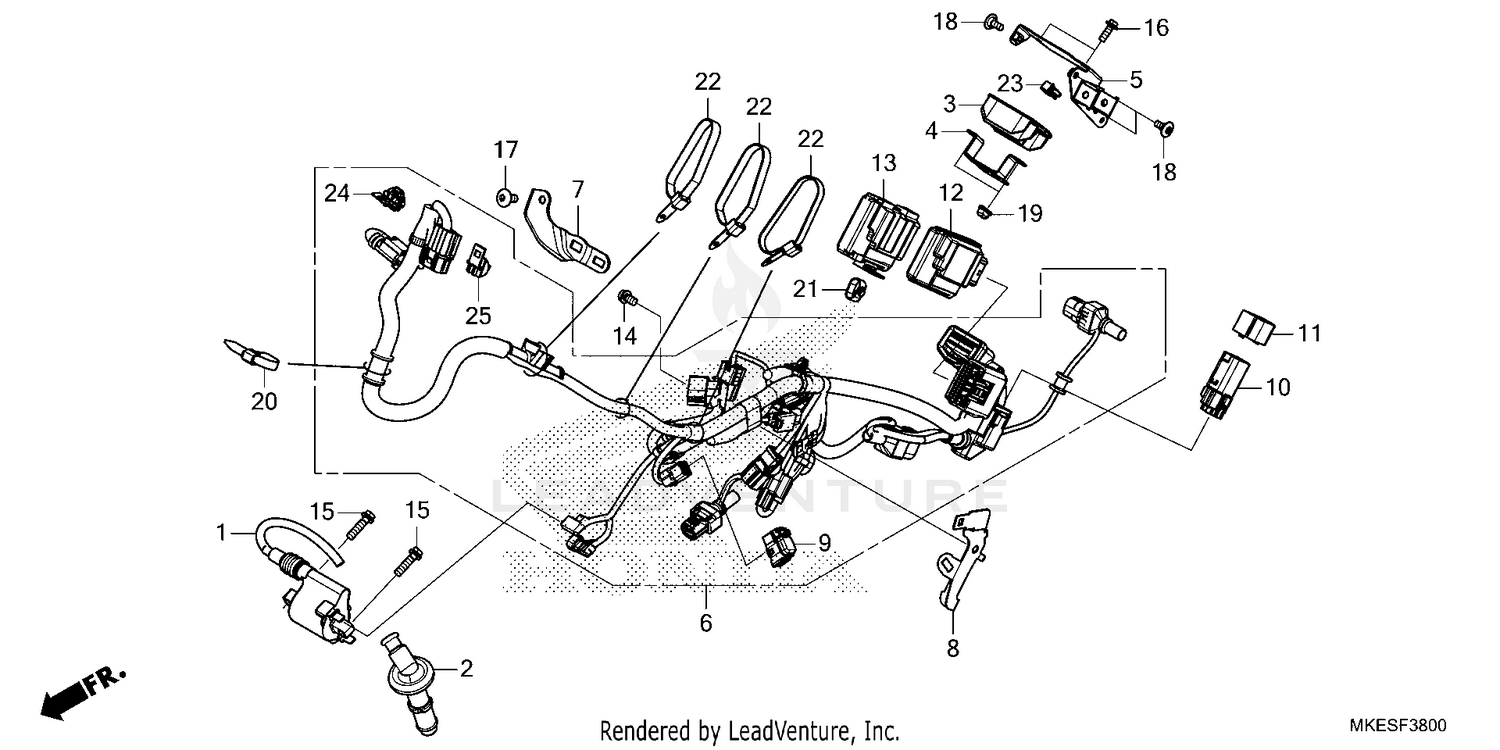

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL ASSY., IGNITION
30500-MKE-A01
|
$83.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-MKE-A01
|
$64.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
RECTIFIER ASSY., REGULATE
31600-KZL-931
|
$213.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER
31601-K95-AG0
|
$5.42 | ||
|
Unavailable |
|||
|
#5
STAY
31605-K95-AG0
|
$22.07 | ||
|
Unavailable |
|||
|
#6
WIRE HARNESS
32100-K95-AG0
|
$333.36 | ||
|
Unavailable |
|||
|
#7
STAY, FR. CONNECTOR
32110-MKE-AF0
|
$10.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, HARNESS (L)
32125-MKE-AF0
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, DUMMY (WPC 4P 090 M) (RED)
32606-K44-V01
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY (2P) (WPC)
38580-MKE-A61
|
$52.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, RELAY
38585-MKE-A11
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
PGM-FI UNIT (NOT AVAILABLE)
38770-MKE-BQ1
|
$553.65 | ||
|
Unavailable |
|||
|
#13
SUSPENSION
38771-K95-AG0
|
$11.60 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (6X10)
90020-GHB-610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X22)
90020-GHB-670
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X18)
90025-GHB-650
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (6X12)
90106-KSE-000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FR. DISK COVER (FOR RR.)
90114-MAC-780
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SELF-LOCK (6MM)
90343-ZE6-000
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, WIRE (Honda Code 2687788)
90650-KV6-003
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, RUBBER (50)
90652-MKH-D20
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)
90679-SG9-E01
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, CABLE
90682-MGS-D41
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, CONNECTOR (DARK GREEN)
91565-S0X-003
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
