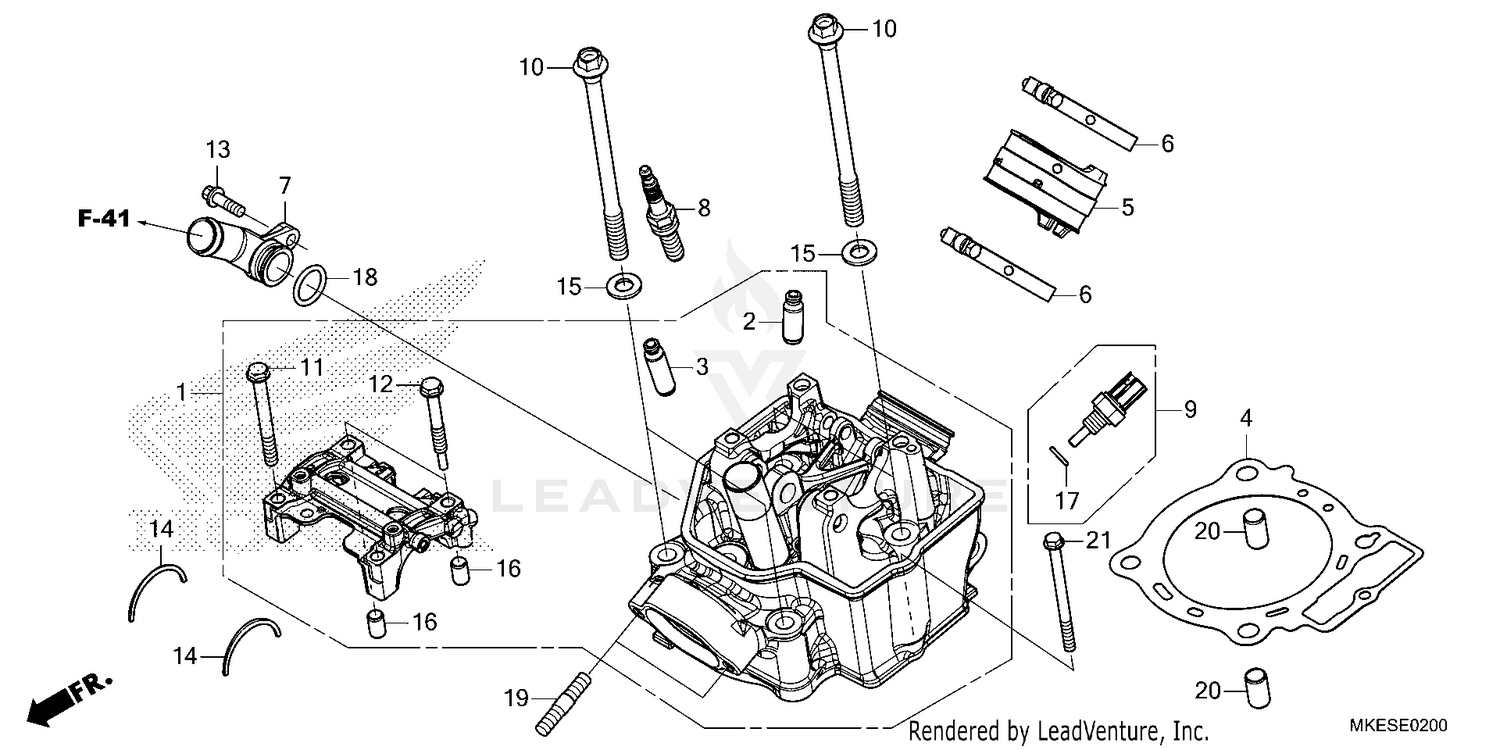

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY. (NOT AVAILABLE)
12010-MKE-BQ0
|
$759.00 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-MKE-P00
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, EX. VALVE (OVER SIZE)
12205-MEB-P00
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYL HD
12251-MKE-AS1
|
$44.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
INSULATOR, THROTTLE BODY
16211-MKE-AF0
|
$18.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, INSULATOR
16217-MKE-AF0
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, WATER
19501-MKE-A00
|
$26.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPARK PLUG (SILMAR9A9S) (NGK)
31909-MEN-A31
|
$22.13 | ||
|
Unavailable |
|||
|
#9
SENSOR ASSY., WATER TEMPERATURE
37870-KZR-601
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X143)
90001-MKE-A00
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (7X65)
90003-MKE-A00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SPECIAL (7X45)
90005-MKE-A00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X20)
90020-GHB-660
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, CAMSHAFT THRUST
90446-KRN-670
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (10MM)
90453-MKE-A00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (9X14)
90701-MR7-000
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (9.5X1.9)
91307-KZR-600
|
$1.65 | ||
|
Unavailable |
|||
|
#17
O-RING (9.5X1.9) (PANASONIC)
91307-PLC-004
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (19X3) (NOK)
91312-KE7-003
|
$2.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, STUD (8X22)
92900-08022-0B
|
$2.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PIN A, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X80) BOLT, FLANGE (6X50)
96001-06080-00
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
