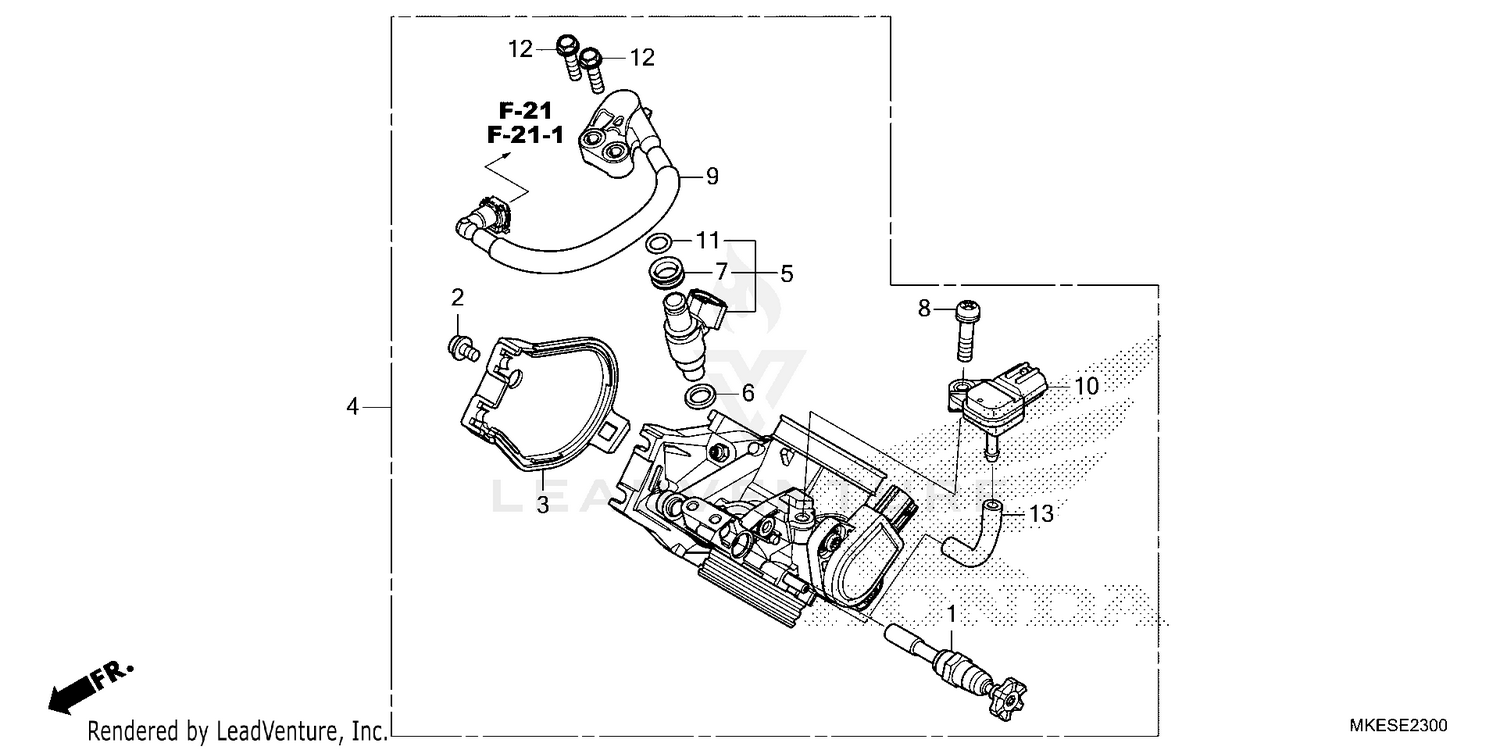

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE, STARTER
16046-MKE-AF1
|
$56.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, COVER
16080-HP1-601
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, BODY
16157-MEN-A31
|
$20.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
BODY ASSY., THROTTLE
16400-MKE-BD1
|
$584.71 | ||
|
Unavailable |
|||
|
#5
INJECTOR ASSY., FUEL
16450-MEN-A51
|
$172.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL RING, INJECTOR
16472-MCW-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION RING, INJECTOR
16473-P7A-004
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW-WASHER (6X25)
16542-MEN-A41
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, FUEL FEED
17640-MKE-AF1
|
$94.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY., MAP
37830-MKZ-J31
|
$113.07 | ||
|
Unavailable |
|||
|
#11
O-RING (7.8X1.9)
91301-P7A-004
|
$4.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT-WASHER (5X20)
93401-05020-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
