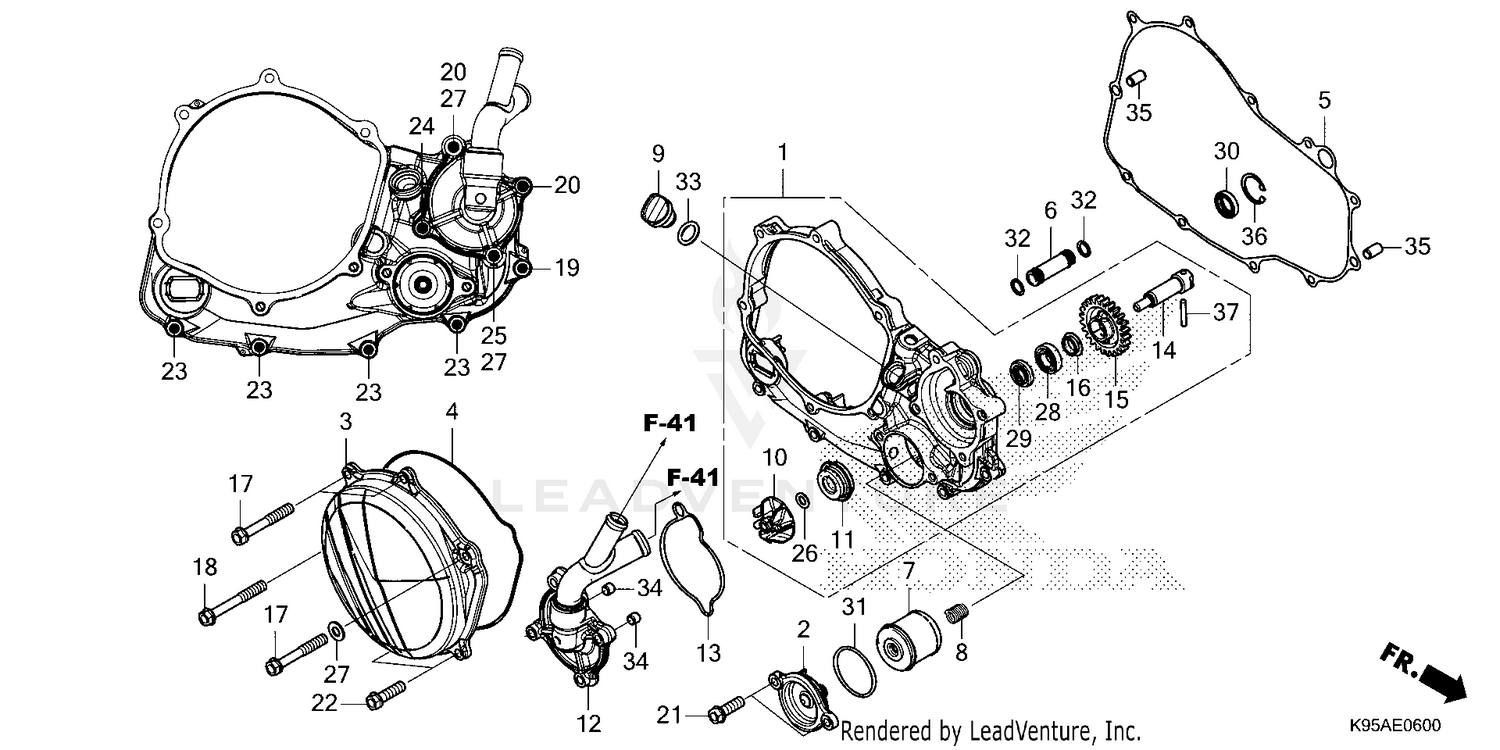

Right Crankcase Cover @water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11300-K95-AA0
|
$406.80 | ||
|
Unavailable |
|||
|
#2
COVER, OIL FILTER
11333-MKE-A00
|
$50.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, CLUTCH
11351-K95-AA0
|
$154.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CLUTCH COVER
11352-K95-A20
|
$14.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, R. COVER
11394-K95-A21
|
$34.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, OIL PASSAGE
15104-K95-A20
|
$16.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
FILTER, ENGINE OIL
15412-MEN-671
|
$9.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SPRING, OIL FILTER
15414-MEB-670
|
$3.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CAP, OIL FILLER
15611-K95-A20
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
IMPELLER, WATER PUMP
19215-K95-A20
|
$52.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, MECHANICAL
19217-KRN-A61
|
$56.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, WATER PUMP
19220-K95-A20
|
$95.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, WATER PUMP
19226-K95-A20
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, WATER PUMP
19241-K95-A20
|
$71.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, WATER PUMP DRIVEN (24T)
19242-K95-A20
|
$26.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
19243-K95-A20
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X50)
90020-GHB-760
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X55)
90020-GHB-770
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X35)
90020-GHB-720
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X45)
90020-GHB-750
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X20)
90020-GHB-660
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X20)
90020-GHB-660
|
$2.65 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X28)
90020-GHB-690
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X30)
90020-GHB-700
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X25)
90020-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SEALING (7MM)
90447-KE1-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BEARING, BALL (12X24X6)
91002-MEN-A31
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL (12X22X5)
91201-148-003
Superseded by 91201-965-000
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
OIL SEAL (12X22X5)
91201-965-000
|
$5.09 | ||
|
Unavailable |
|||
|
#30
OIL SEAL (14X22X5) (ARAI)
91201-HM3-A61
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING (39.8X2.2)
91302-PA9-003
Superseded by 91302-K0G-911
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (9.6X1.9)
91302-K95-AA1
|
$2.15 | ||
|
Unavailable |
|||
|
#33
D-RING (14X3)
91307-KRN-A41
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN, DOWEL (8X7)
91320-KE1-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CIRCLIP (INNER) (24MM)
94520-24000
|
$1.27 | ||
|
Unavailable |
|||
|
#37
ROLLER (4X23.8)
96220-40238
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
