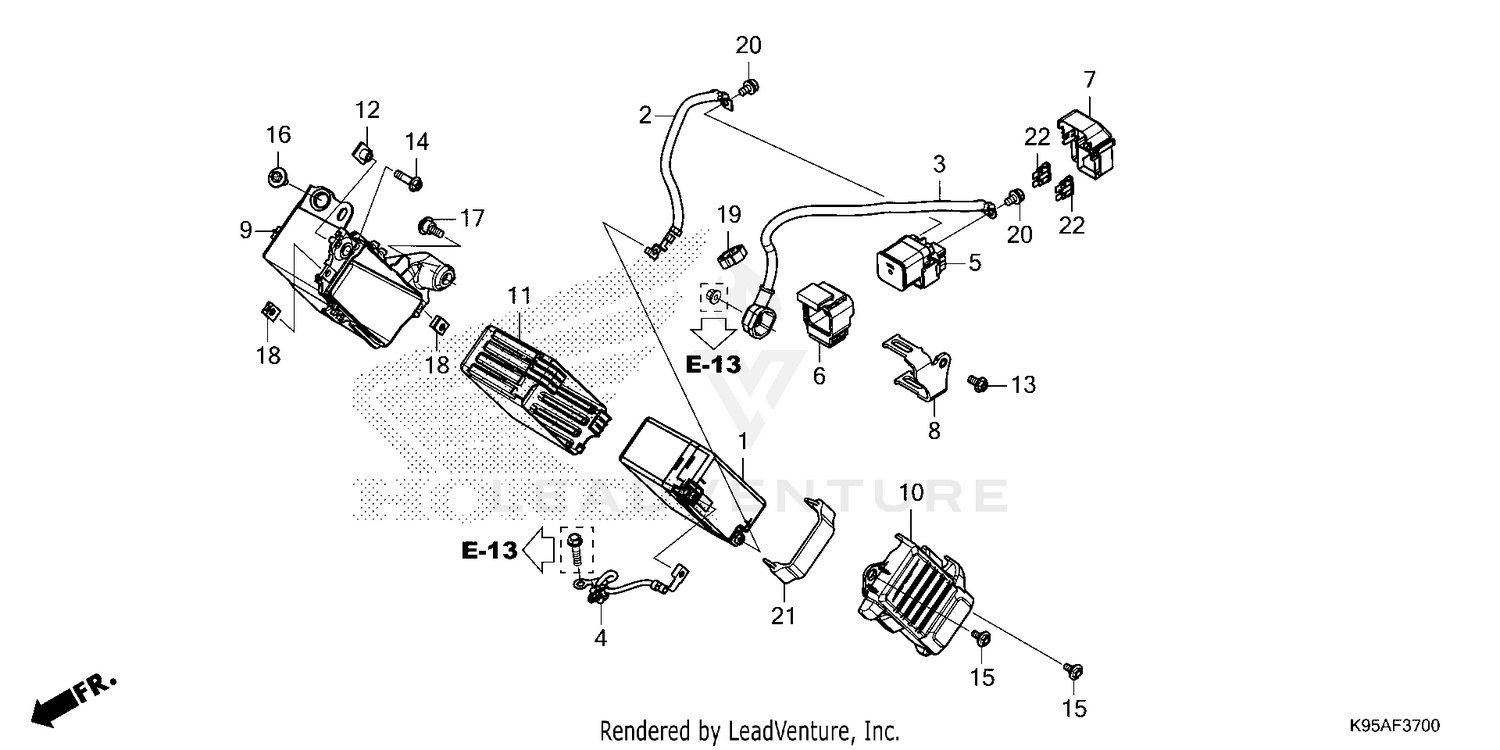

Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY (HJ12L)
31500-K95-AE1
Superseded by 31500-K95-AE4
|
$268.37 | ||
|
Available to order. Add to View Price |
|||
|
#1
BATTERY (HJ12L)
31500-K95-AE2
Superseded by 31500-K95-AE4
|
$268.37 | ||
|
Unavailable |
|||
|
#2
CABLE, STARTER BATTERY
32401-MKE-AF0
|
$24.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, STARTER MOTOR
32410-K95-AA0
|
$27.22 | ||
|
Unavailable |
|||
|
#4
CABLE
32601-K95-AA0
|
$22.80 | ||
|
Unavailable |
|||
|
#5
SWITCH, STARTER MAGNETIC
35851-MKE-A11
|
$103.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, SHOCK
35856-K95-A21
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, STARTER MAGNETIC SWITCH
35857-MKE-A11
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, STARTER MAGNETIC SWITCH
50221-MKE-AF0
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOX, BATTERY
50325-K95-AA0
|
$39.93 | ||
|
Unavailable |
|||
|
#10
LID, BATTERY BOX
50326-MKE-AF0
Superseded by 50326-MKE-AF1
|
$7.25 | ||
|
Unavailable |
|||
|
#11
RUBBER, BATTERY
50327-MKE-AF0
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, RR. FENDER
80104-KJ2-000
|
$5.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X12)
90025-GHB-620
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X22)
90027-GHB-670
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SPECIAL (5X9)
90101-MKE-AF0
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL (6MM)
90103-MKE-A00
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SPECIAL (6MM)
90126-MEN-A70
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CLIP (5MM)
90677-KRJ-900
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP, HARNESS
90690-MEF-800
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-WASHER (6X12)
93403-06012-08
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND B1, BATTERY
95012-12001
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE, BLADE (10A)
98200-31000
|
$1.37 | ||
|
Unavailable |
|||
