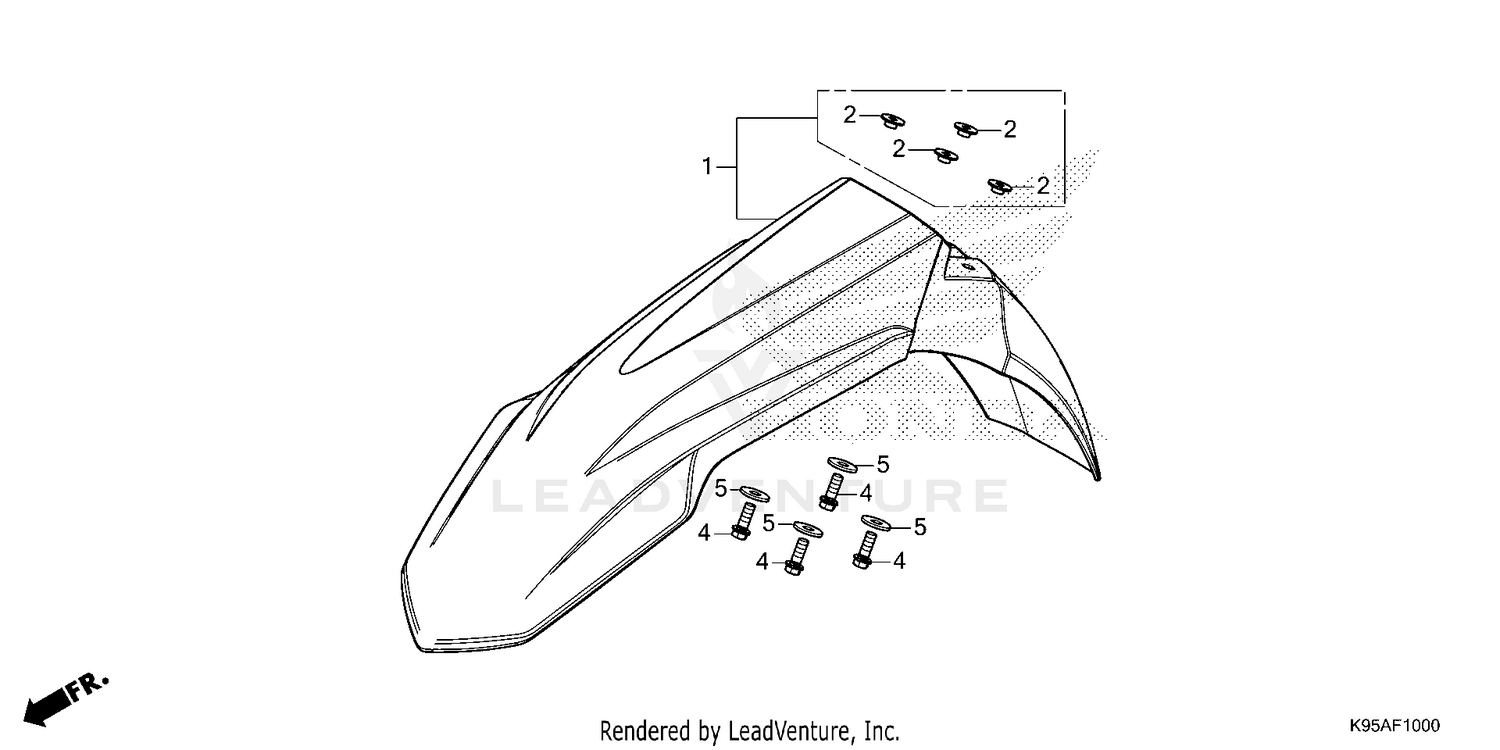

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER ASSY., FR. *R292R* (WOL) (EXTREME RED)
61110-MKE-AF0ZA
|
$105.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, FR. FENDER
90512-MKE-A00
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE (6X16)
90020-GHB-640
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, FENDER MOUNTING
90506-MEN-A30
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
