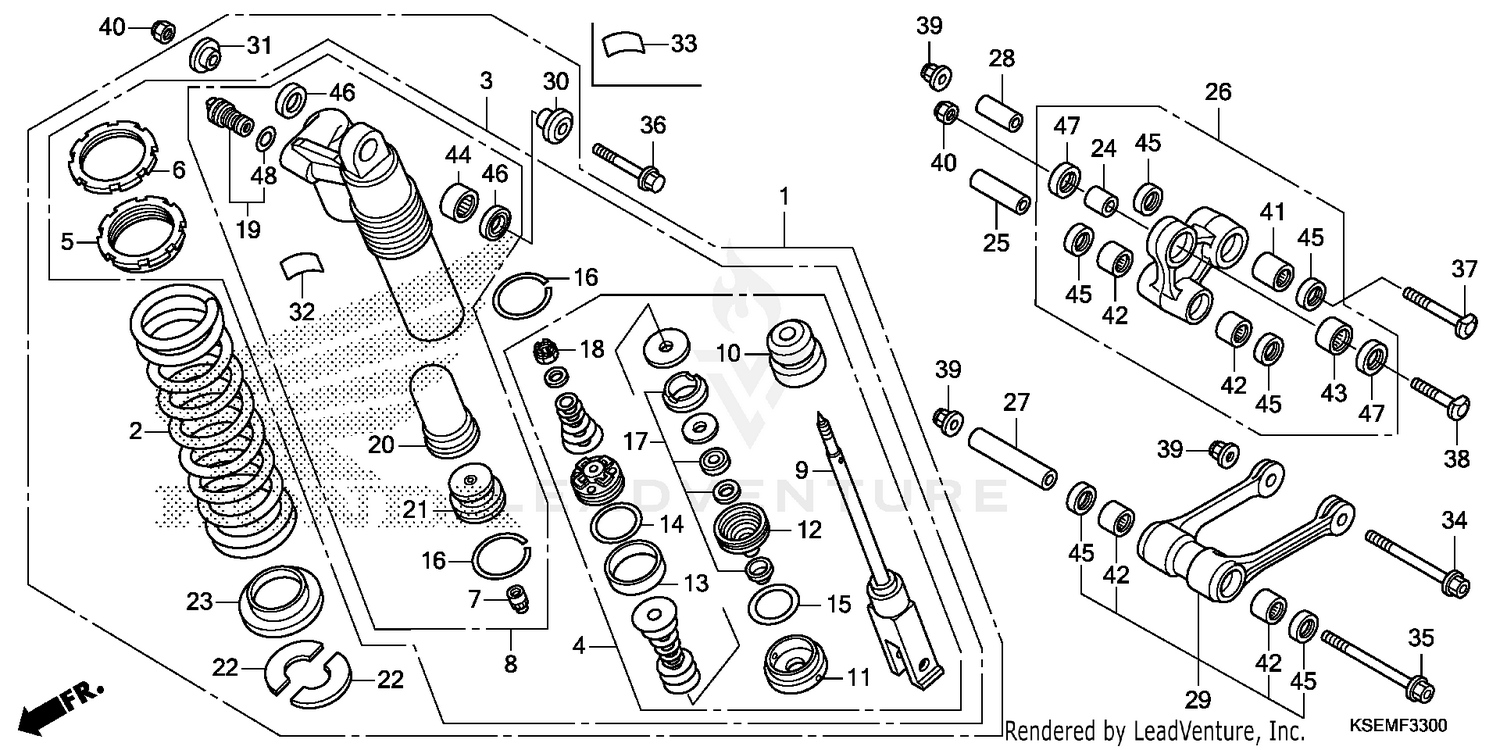

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR. (COO)
52400-KSE-A71
Superseded by 52400-KSE-305
|
$994.11 | ||
|
Available to order. Add to View Price |
|||
|
#1
CUSHION ASSY., RR. (COO)
52400-KSE-305
|
$994.11 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (49.0N/MM,5.0KGF/MM) (SHOWA)
52401-KSE-A31
|
$186.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (51.0N/MM,5.2KGF/MM) (SHOWA)
52401-KSE-A41
|
$186.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (47.0N/MM,4.8KGF/MM) (SHOWA)
52402-KSE-A31
|
$186.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, RR. (COO)
52410-KSE-A71
Superseded by 52410-KSE-305
|
$687.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, PISTON
52421-KSE-A71
|
$410.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
ADJUSTER, SPRING
52422-MA0-003
|
$44.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, ADJUSTER
52423-GBF-831
|
$24.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, AIR VALVE
52425-381-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, DAMPER
52425-KSE-671
|
$385.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD
52426-KSE-A71
|
$337.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, STOPPER
52427-GBF-831
|
$19.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, CASE
52428-KA4-741
|
$22.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, ROD GUIDE
52429-KSE-A71
|
$42.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, PISTON
52431-MA0-771
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (2.0X33.5)
52432-GBF-831
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING (3.5X33.7)
52434-KA3-681
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, STOPPER
52435-MA0-771
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL SET
52436-KSE-680
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEX. (12MM)
52438-KA4-741
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
ADJUSTER, COMPRESSION DAMPING FORCE
52440-GBF-A01
|
$57.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
DIAPHRAGM
52451-GBF-831
|
$18.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, CHAMBER
52453-KSE-671
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
STOPPER, SPRING SEAT
52455-GBF-831
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAT, SPRING
52459-GBF-831
|
$25.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR D, CUSHION ARM
52462-KSE-000
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR B, CUSHION ARM
52463-KSE-000
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#26
ARM SUB-ASSY., CUSHION
52465-KSE-000
|
$266.91 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR A, CONNECTING ROD
52473-KSE-000
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR, CUSHION CONNECTING ROD
52473-KZ9-710
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROD SUB-ASSY., CUSHION CONNECTING
52479-KSE-000
|
$229.07 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR A, CUSHION (UPPER)
52486-GBF-830
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR B, CUSHION (UPPER)
52487-GBF-830
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#32
LABEL, RR. DAMPER WARNING
87516-KZ1-600
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (10X85)
90101-KK6-000
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (10X105)
90101-KSE-000
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (10X67)
90128-KSE-000
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, LINK (10X73)
90153-KSE-000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, CUSHION (LOWER) (10X43.5)
90153-KZ4-710
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, U (10MM) NUT, SELF-LOCK (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
NUT, U (10MM)
90306-KZ4-711
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING, NEEDLE (KOYO)
91071-KV3-005
|
$30.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BEARING, NEEDLE (17X24X20) (NTN)
91072-KT7-003
|
$24.47 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, NEEDLE (19X26X13)
91074-KRN-711
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING, NEEDLE (16X22X12)
91077-GS2-702
|
$22.71 | ||
|
Available to order. Add to View Price |
|||
|
#45
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#46
DUST SEAL, RR. CUSHION (UPPER)
91351-GS2-701
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#47
DUST SEAL (19X26X3)
91351-KSE-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#48
O-RING (16.8X1.9)
91356-GBF-831
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
