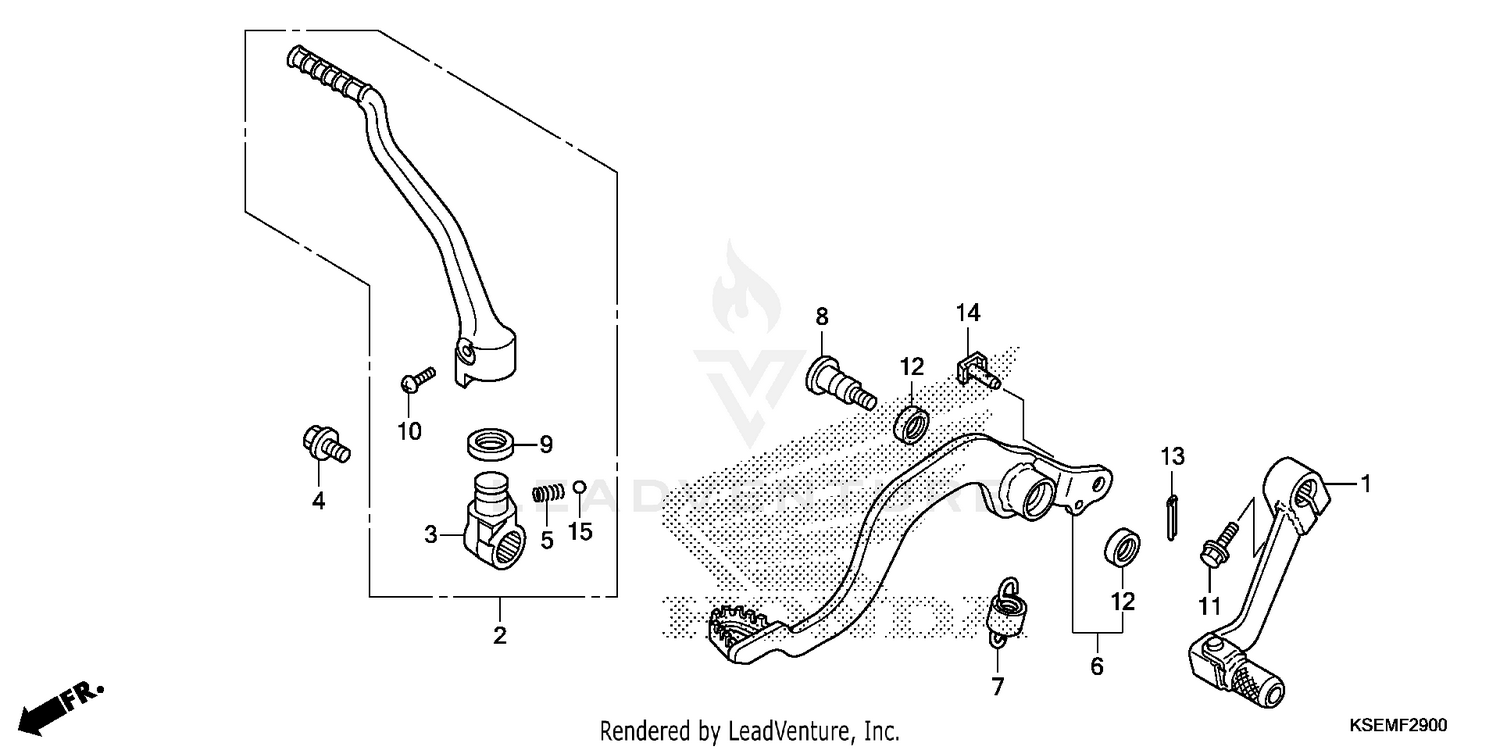

Pedal@kick Starter Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, CHANGE
24700-KSE-000
|
$95.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM ASSY., KICK STARTER
28300-KSE-000
|
$135.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, KICK ARM
28302-KSE-000
|
$80.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, KICK JOINT
28306-KAE-000
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, KICK STARTER
28333-KK0-000
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PEDAL, BRAKE
46510-KSE-010
|
$68.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING ASSY., RR. BRAKE RETURN
46511-KZ4-J00
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, BRAKE PIVOT
46513-KSR-710
|
$16.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL (17X20X2.5)
46525-KK0-003
|
$6.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, KICK ARM (6X25)
90103-KSE-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X20)
90118-968-000
|
$5.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
DUST SEAL (15X20X2.5)
91251-444-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, COTTER (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
