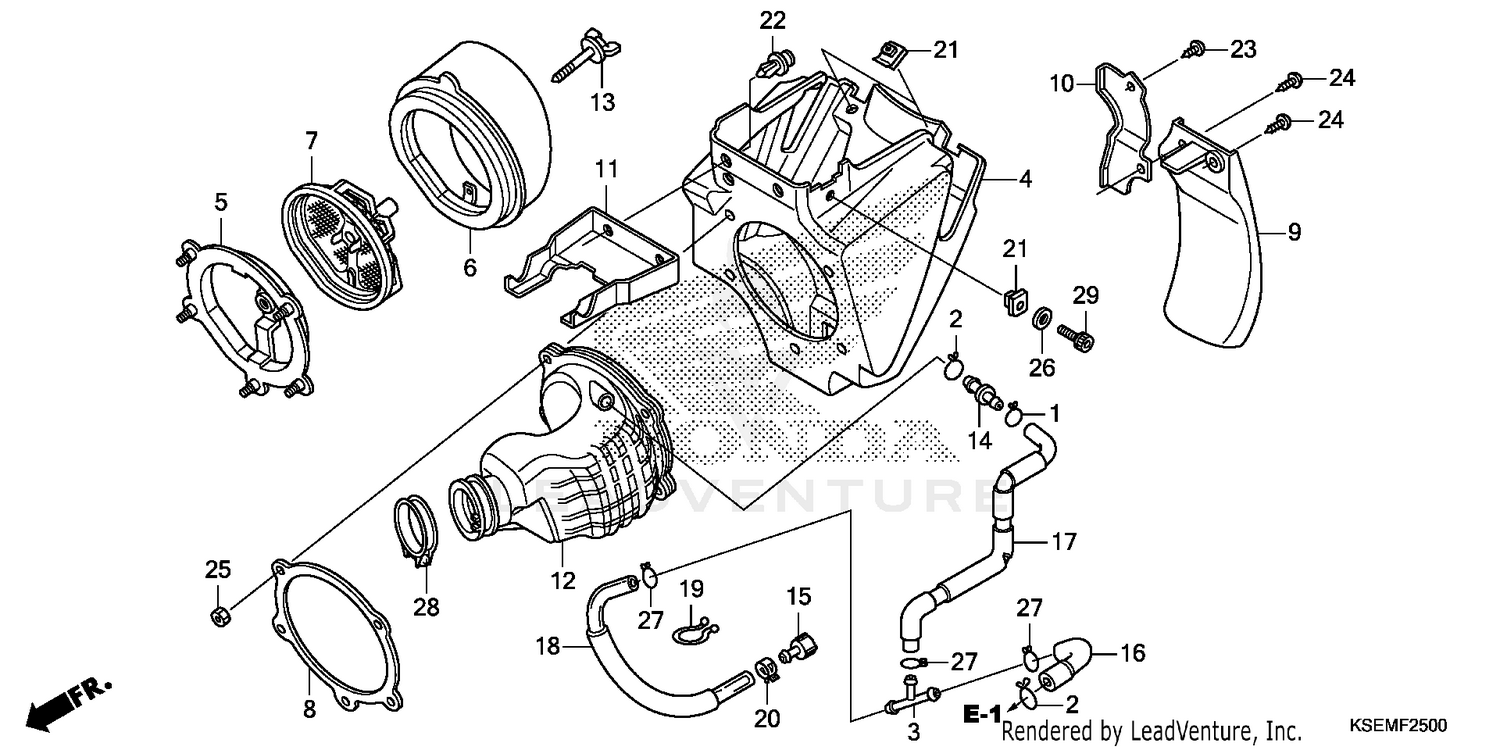

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15707-634-000
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, OIL DRAIN TUBE
15771-551-000
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, FUEL TUBE
16959-MY1-000
|
$21.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOUSING, AIR CLEANER
17210-KSE-000
|
$215.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, AIR CLEANER ELEMENT
17212-KSE-000
|
$71.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
ELEMENT, AIR CLEANER
17213-KSE-000
|
$49.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BASE ASSY., ELEMENT
17214-KSE-000
|
$44.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, FR. CASE
17217-KSE-000
|
$16.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPLASH GUARD, AIR CLEANER
17220-KSE-000
|
$36.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUARD, AIR CLEANER
17221-KSE-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
VISOR, AIR CLEANER HOUSING
17223-KSE-000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, AIR CLEANER CONNECTING
17253-KSE-000
|
$58.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, ELEMENT SETTING
17291-GBF-830
|
$16.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, BREATHER TUBE
17359-MAG-L00
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, BREATHER TUBE
17370-419-700
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE A, BREATHER
17372-KSE-000
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE B, BREATHER
17373-KSE-000
|
$29.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE C, BREATHER
17375-KSE-000
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCK, PURSE
32171-GF9-621
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FENDER SETTING
84601-HA7-670
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, TAPPING (5X12) (PO)
93913-15280
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TAPPING (5X16) (PO)
93913-15410
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (5MM)
94002-05000-0S
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#26
WASHER, PLAIN (6MM) (USED ON TAILLIGHT)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#27
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BAND, AIR CLEANER CONNECTING TUBE (52)
95018-52201
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, SOCKET (6X14)
96600-06014-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
