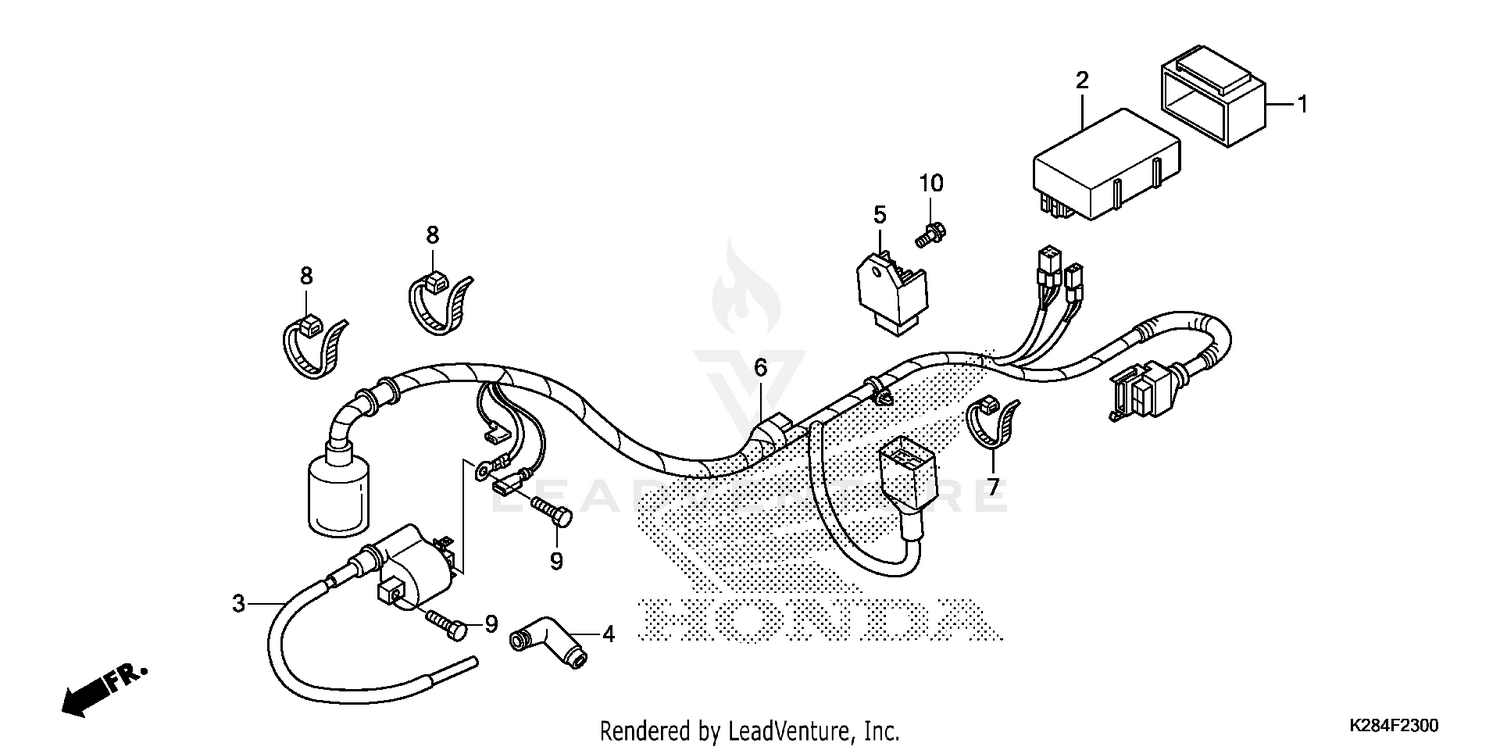

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-KWW-A80
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
MODULE, IGNITION CONTROL (CDI)
30410-K28-911
|
$365.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
COIL, IGNITION
30500-K28-911
|
$75.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-KYK-911
|
$32.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER, REGULATOR
31600-KYK-911
|
$148.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE HARNESS
32100-K28-910
|
$150.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, WIRE
90650-KW3-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, WIRE (165MM)
90651-KRF-T00
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
