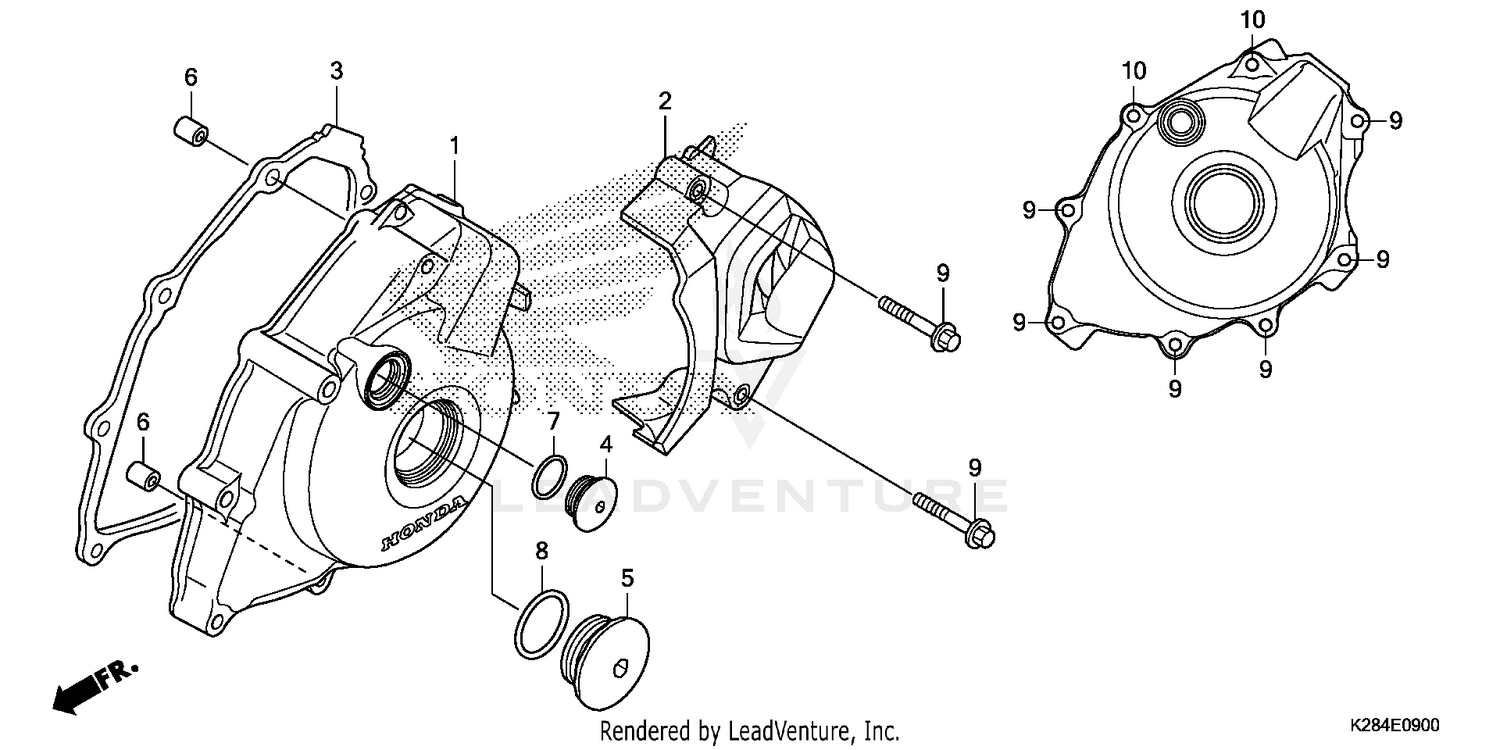

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11341-KYY-900
|
$83.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. RR.
11360-K28-910
|
$42.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, L. CRANKCASE COVER
11395-KWS-900
Superseded by 11395-KWS-901
|
$15.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP (14MM)
90084-KTT-900
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP (32MM)
90087-KRM-840
|
$24.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL (8X14)
90702-KRM-840
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING (13.8X2.5)
91303-KRM-840
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (31.7X2.4)
91305-KYY-900
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X35)
96001-06035-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X60)
96001-06060-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
