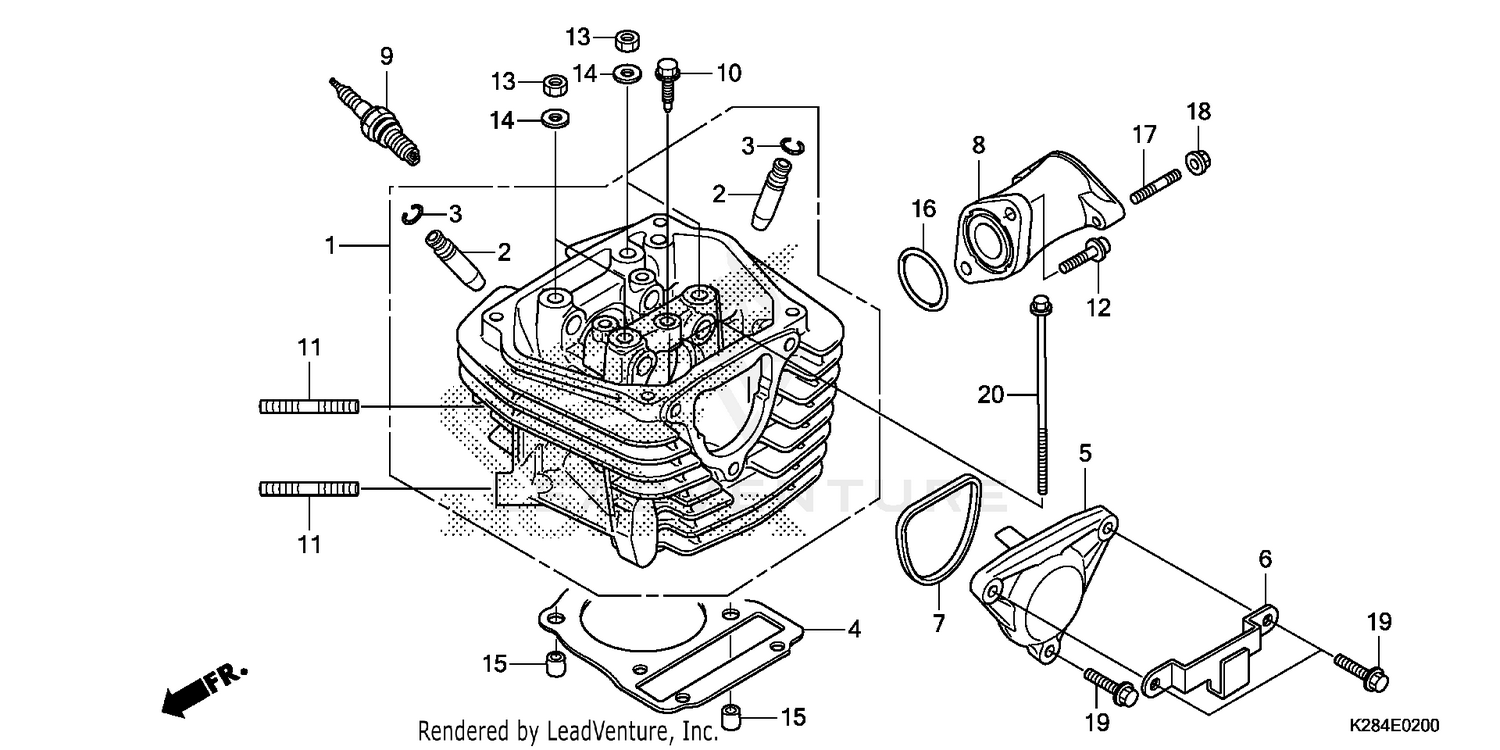

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-KYY-970
|
$384.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-KVY-305
|
$12.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP, VALVE GUIDE
12206-KPL-900
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-KYY-901
|
$19.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, L. CYLINDER HEAD SIDE
12341-KYY-900
|
$25.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, TANK SHROUD
12345-K28-910
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, L. CYLINDER HEAD SIDE COVER
12395-KYY-900
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
INSULATOR, CARBURETOR
16210-K28-910
|
$84.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPARK PLUG (CPR6EA-9) (NGK)
31916-KPH-901
|
$12.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPARK PLUG (CPR7EA-9) (NGK)
31917-KPH-901
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SPECIAL (6X21)
90014-KYY-900
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD (8X22)
90035-KRM-840
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE SOCKET (6X22)
90091-KRM-840
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEX. (7MM)
90201-GCC-000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (7.2X16X2.5)
90401-GFM-900
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL SPECIAL (8X14)
90701-KVR-C00
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (27X2.0)
91313-KVR-C00
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD (6X16)
92900-06016-0B
|
$1.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X110)
96001-06110-00
|
$4.78 | ||
|
Unavailable |
|||
