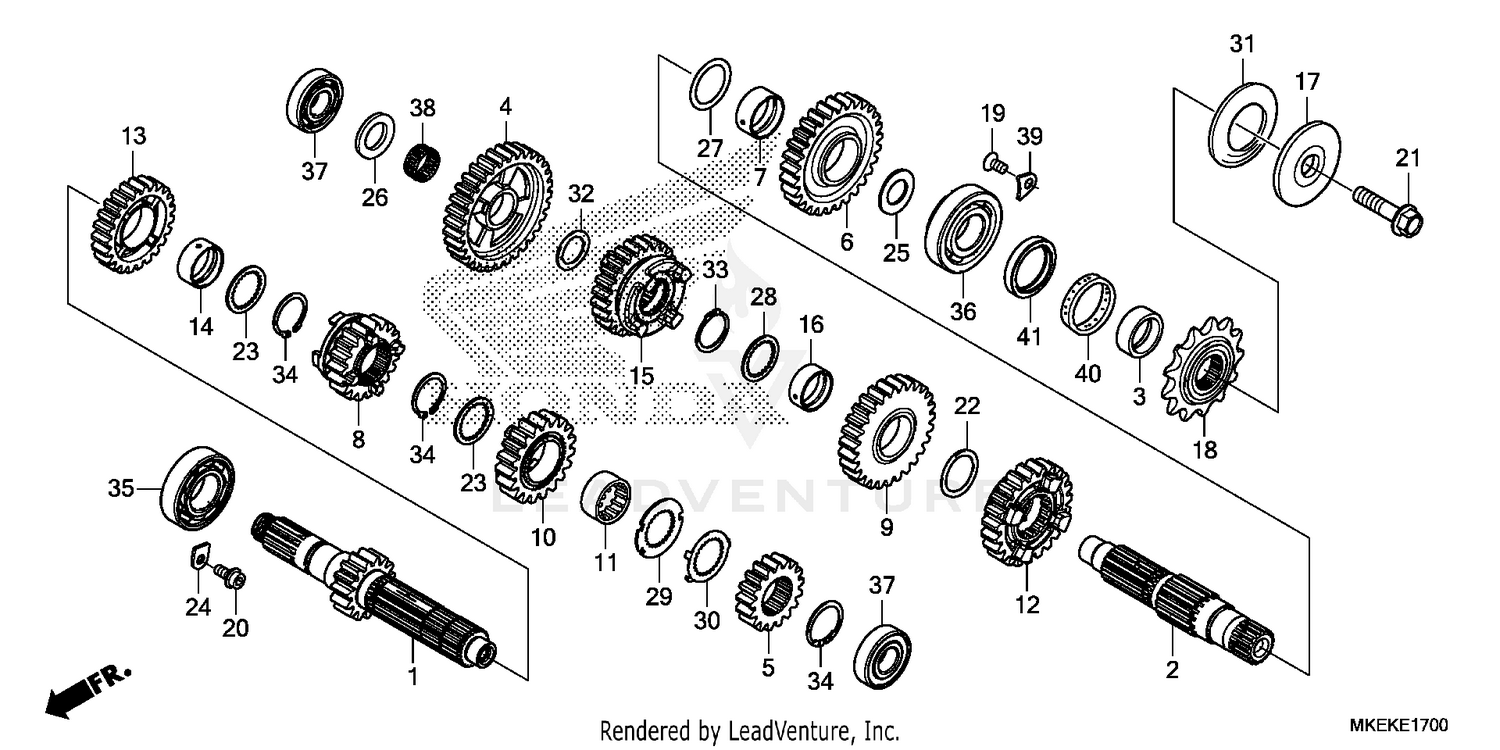

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (15T)
23210-MKE-A00
|
$179.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23220-MKE-A01
|
$174.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, COUNTERSHAFT
23225-MEN-730
|
$18.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT LOW (32T)
23411-MKE-A01
|
$125.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (17T)
23421-MKE-A00
|
$64.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (29T)
23431-MKE-A00
|
$119.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (27X30X13.2)
23432-MKE-A00
|
$19.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD (19T)
23441-MKE-A00
Superseded by 23441-MKE-AF0
|
$124.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (27T)
23451-MKE-A00
|
$119.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT FOURTH (19T)
23461-MKE-A00
|
$110.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, SPLINE (26X14.3)
23462-MKE-A00
|
$18.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT FOURTH (23T)
23471-MKE-A00
|
$124.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FIFTH (23T)
23481-MKE-A00
|
$113.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR (26X29X12.3)
23482-MKE-A00
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (24T)
23491-MKE-A00
|
$131.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR (25X28X11)
23492-KY2-000
|
$25.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, DRIVE SPROCKET
23802-KSC-670
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (13T)
23802-MEN-730
|
$47.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, SPECIAL FLAT (6X12)
90003-KRN-670
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE SOCKET (6X14)
90071-MF5-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, UBS (8X33)
90112-413-000
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER (25X32X1.0)
90401-HP1-670
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPLINE (26MM)
90402-HP6-A00
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, BEARING HOLDER
90441-KRM-840
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (24.1X37X1.0)
90445-MKE-A00
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, THRUST (17.1X30X1.5)
90446-MKE-A00
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, THRUST (27.2X35)
90446-ML3-870
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, THRUST INVOLUTE (25X31X1.5)
90451-MEY-670
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, SPLINE (26MM)
90461-MKE-A00
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, LOCK (26MM)
90462-MKE-A00
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPRING (24MM)
90501-KSC-670
|
$5.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WASHER, THRUST (19MM)
90554-KA5-680
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP (OUTER) (25MM)
90602-259-010
|
$7.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
CIRCLIP, SPECIAL (OUTER) (26MM)
90602-MKE-A00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, RADIAL BALL SPECIAL (6205U)
91003-MEN-A71
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, RADIAL BALL (24X56X14)
91005-MKE-A01
|
$38.84 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, RADIAL BALL (17X40X11)
91006-MEN-A71
|
$25.91 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, NEEDLE (19X22X9.8)
91007-MEN-731
|
$11.35 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLATE, COUNTERSHAFT BEARING
91012-KA3-710
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#40
D-RING (23.75MM)
91201-MKE-A71
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#41
OIL SEAL (31X40X7) (ARAI)
91207-ML3-871
|
$12.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
