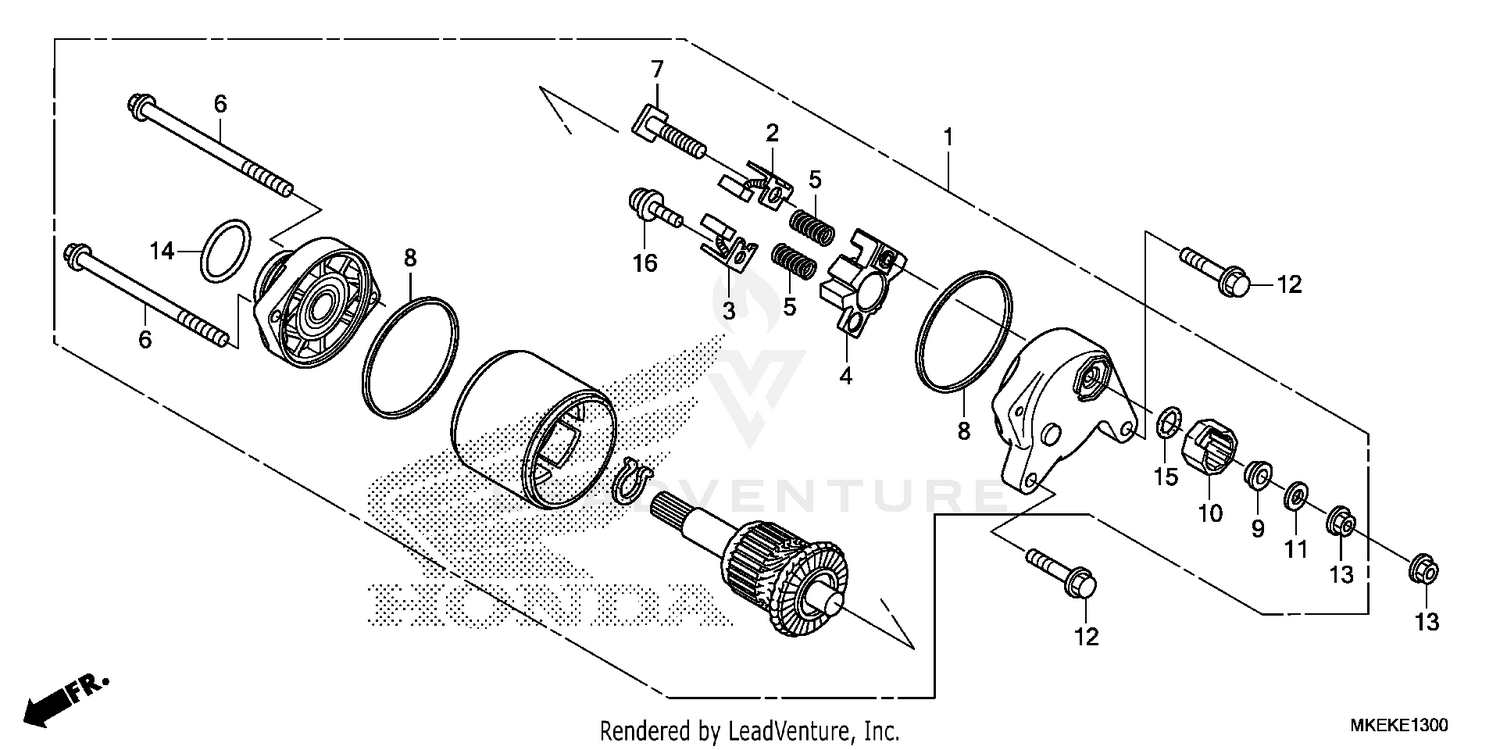

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER MOTOR ASSY.
31200-MKE-A71
|
$496.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRUSH SET A, CARBON
31201-KPC-D51
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRUSH SET B, CARBON
31202-KPC-D51
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, BRUSH
31203-KPC-D51
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CARBON BRUSH (Honda Code 8476798)
31204-MEW-921
|
$15.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT SET
31205-KPC-D51
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, TERMINAL
31206-MEW-921
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING
31207-HP5-601
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
INSULATOR (Honda Code 8476822)
31208-MEW-921
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
STOPPER, TERMINAL (Honda Code 8476830)
31209-MEW-921
|
$12.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
31210-MEW-921
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X28)
90020-GHB-690
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-WASHER (6MM)
90071-MB0-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
O-RING (24.4X3.1) (Honda Code 2618221)
91312-MG7-003
|
$7.98 | ||
|
Unavailable |
|||
|
#15
O-RING (Honda Code 1292184)
91320-MB0-000
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW-WASHER (5X12) (Honda Code 0368621)
93892-05012-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
