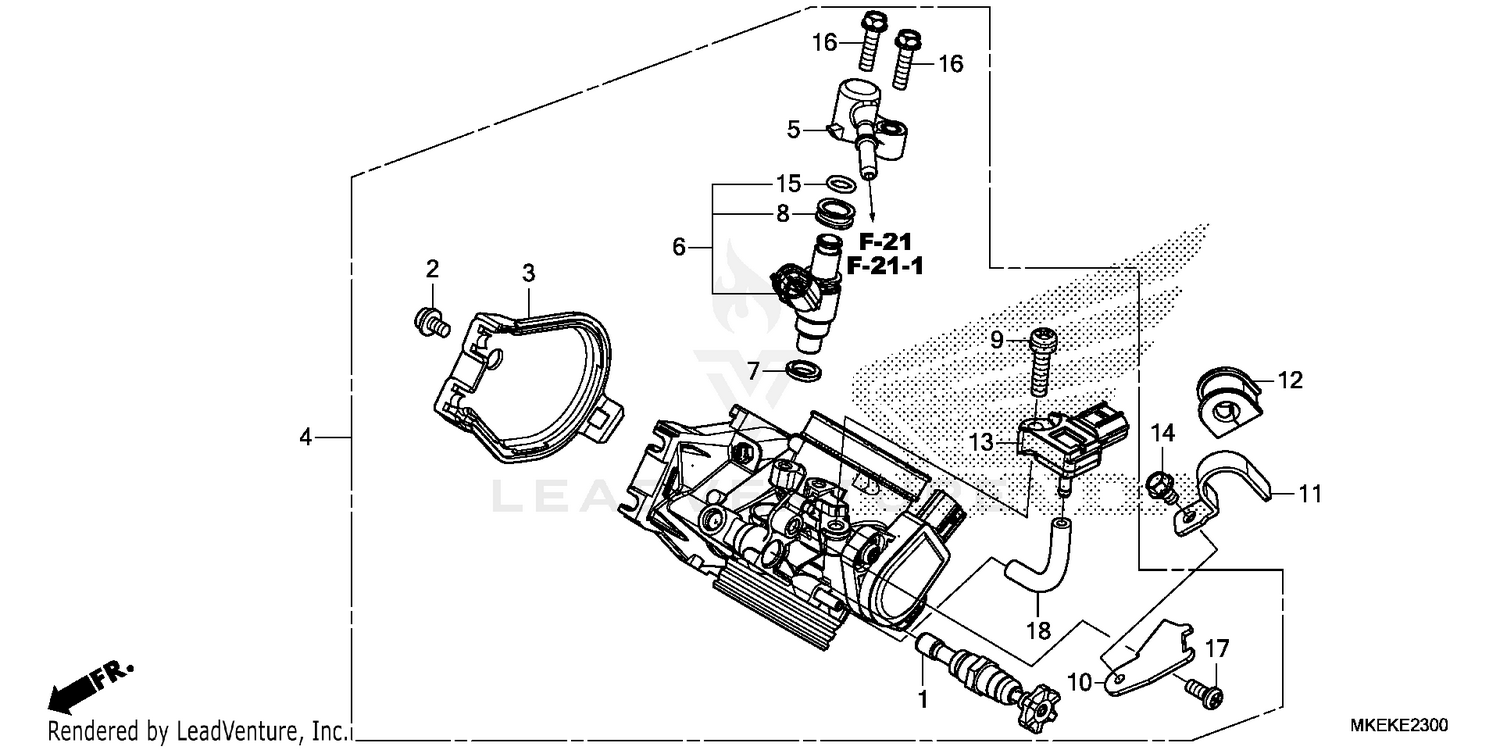

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE, STARTER
16046-KRN-A41
|
$49.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, COVER
16080-HP1-601
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, BODY
16157-MEN-A31
|
$20.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
BODY ASSY., THROTTLE (GQ2DA A)
16400-MKE-A01
|
$751.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, INJECTOR
16422-MKE-A01
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
INJECTOR ASSY., FUEL
16450-MKE-A01
|
$164.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL RING, INJECTOR
16472-MCW-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION RING, INJECTOR
16473-P7A-004
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW-WASHER (6X25)
16542-MEN-A41
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
BASE, CLAMP
17567-MKE-A01
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, FUEL HOSE
17568-HP5-600
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, FUEL FEED HOSE
17579-MKE-A00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR A, MASTER POWER PRESSURE
46401-TM8-A01
|
$212.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (5X8)
90002-MC7-000
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (7.8X1.9)
91301-P7A-004
|
$4.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT-WASHER (5X20)
93401-05020-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (5X12)
93500-05012-0H
|
$0.95 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN (5X12)
93500-05012-1H
Superseded by 93500-05012-0H
|
$0.95 | ||
|
Unavailable |
|||
|
#18
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
