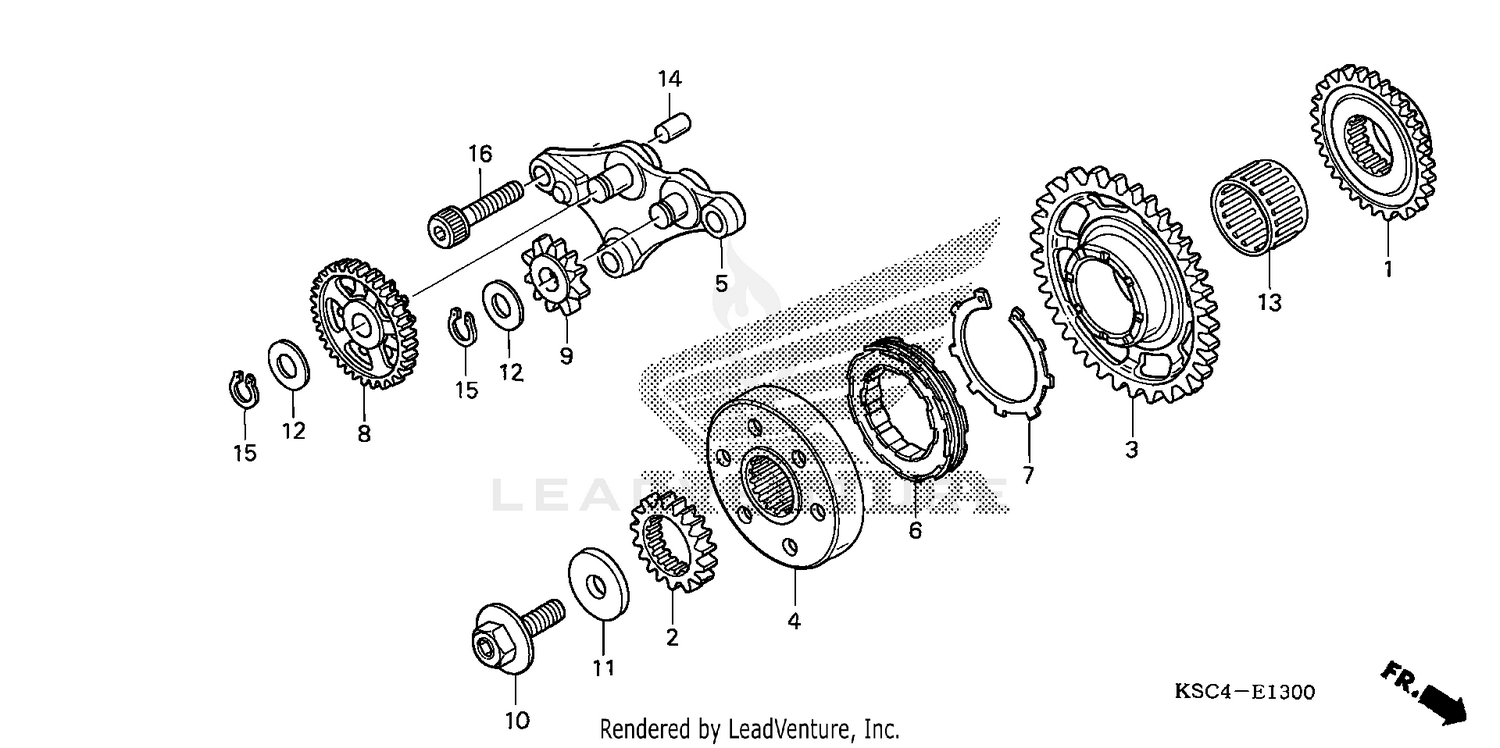

Starting Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, BALANCER DRIVE (32T)
13415-KRN-670
|
$83.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PRIMARY DRIVE (18T)
23121-KSC-670
|
$78.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, STARTING DRIVEN (38T)
28110-KSC-670
|
$151.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH OUTER, STARTING
28115-KSC-670
|
$105.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, STARTER GEAR
28120-KSC-670
|
$177.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLUTCH, ONE-WAY
28125-MT7-004
|
$82.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, FRICTION
28127-MS2-612
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GEAR, STARTING REDUCTION (53T/10T)
28131-KSC-670
|
$78.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, STARTING IDLE (10T)
28141-KSC-670
|
$50.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SPECIAL (12X28)
90013-MEB-670
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN (12MM)
90402-KW6-960
|
$6.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER, THRUST (12MM)
90452-166-600
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, NEEDLE (30X35X20)
91025-KT7-003
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL (8X14)
94303-08140
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP, OUTER (12MM)
94510-12000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SOCKET (8X28)
96600-08028-00
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
