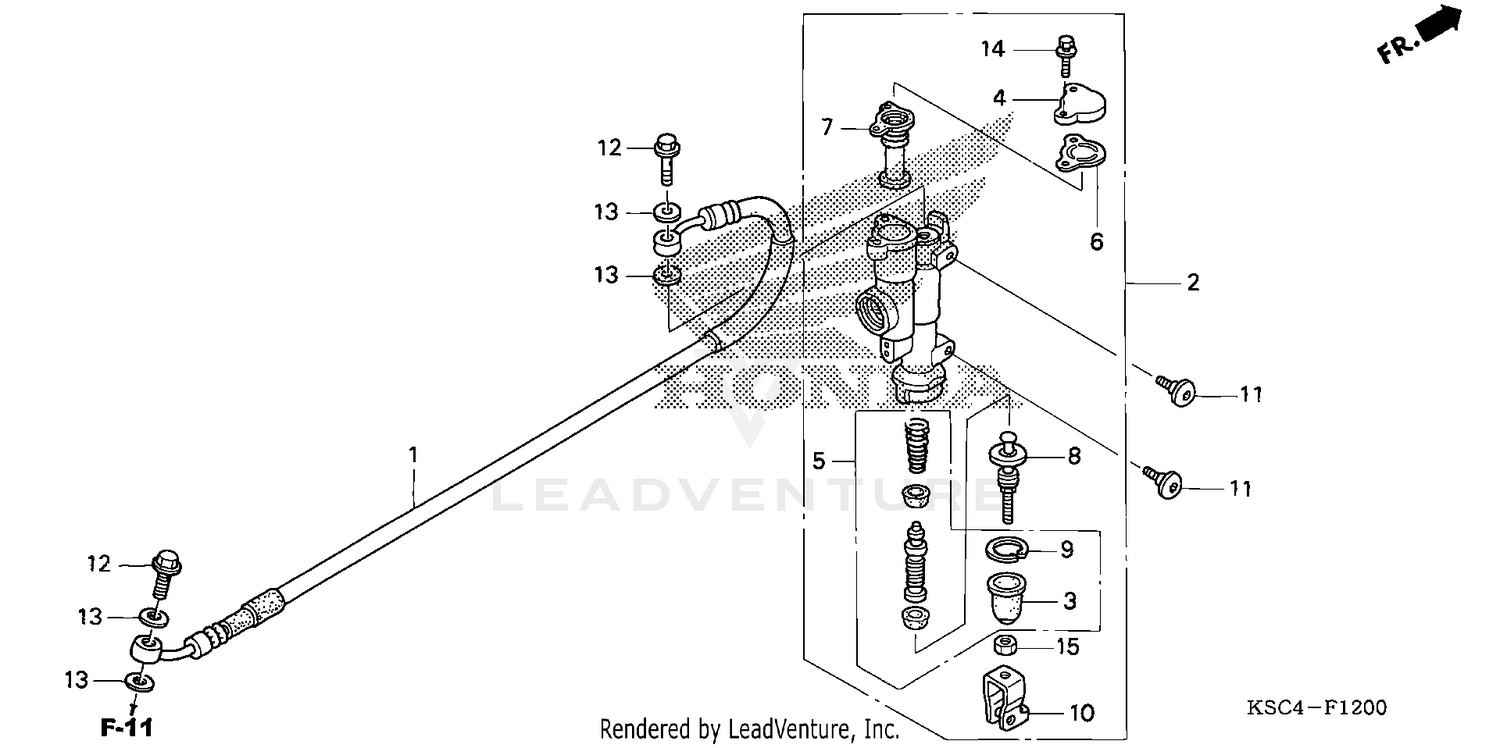

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RR. BRAKE
43310-KZ4-J41
|
$57.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER CYLINDER ASSY., RR. BRAKE (NISSIN)
43500-KZ4-J43
|
$360.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER CYLINDER ASSY., RR. BRAKE (NISSIN)
43500-MEN-305
Superseded by 43500-KZ4-J43
|
$360.80 | ||
|
Unavailable |
|||
|
#3
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, MASTER CYLINDER
43513-KZ4-J41
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON SET, MASTER CYLINDER
43520-KZ4-J43
|
$57.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, DIAPHRAGM
43521-KZ4-J41
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIAPHRAGM
43522-KZ4-J41
|
$22.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD, PUSH
43530-KZ4-J41
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, BRAKE ROD
46504-KZ4-J41
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FR. DISK COVER
90114-MAC-780
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT-WASHER (4X16)
93401-04016-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEX. (6MM)
94002-06000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
