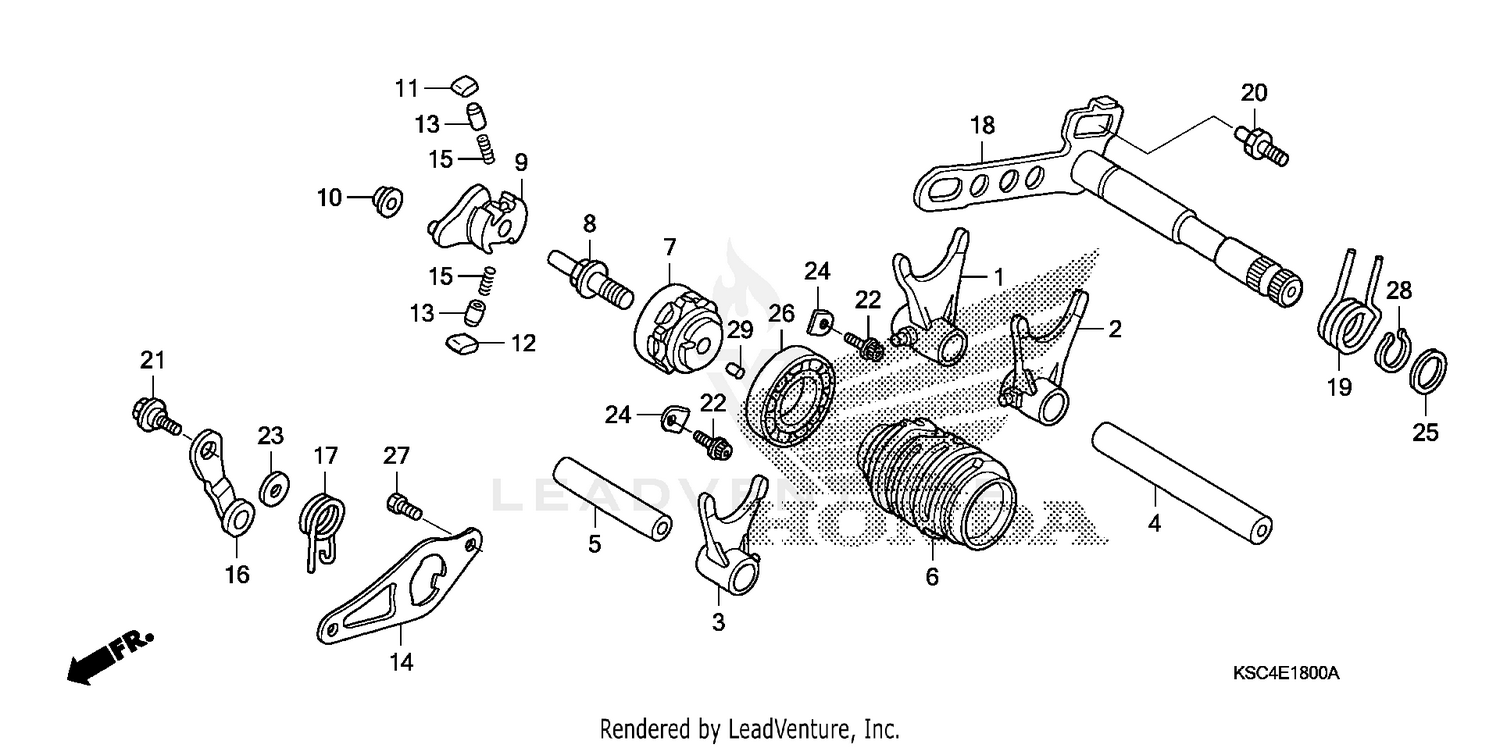

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-KSC-670
|
$67.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, L. GEARSHIFT
24221-KSC-670
|
$67.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, CENTER GEARSHIFT
24231-KSC-670
|
$67.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT A, SHIFT FORK
24241-KSC-670
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT B, SHIFT FORK
24242-KSC-670
|
$30.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRUM, GEARSHIFT
24311-KRN-A00
|
$87.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
CENTER, GEARSHIFT DRUM
24312-KA3-741
|
$78.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, SHIFTER
24315-HA0-000
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIFTER, DRUM
24321-KZ4-620
|
$66.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SHIFTER
24322-MM4-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
PAWL A, RATCHET
24324-KA3-711
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
PAWL B, RATCHET
24325-KA3-711
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUNGER, PAWL
24326-KBH-901
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, GUIDE
24328-KRN-670
|
$15.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, PAWL PLUNGER
24329-KA3-740
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER, DRUM
24430-KA3-740
|
$26.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, DRUM STOPPER
24435-KZ4-690
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPINDLE, GEARSHIFT
24610-KRN-730
|
$87.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPG, SHIFT RETURN
24651-MEB-670
Superseded by 24651-MEB-671
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, GEARSHIFT RETURN SPRING
24652-HA0-000
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIVOT, SHIFT DRUM STOPPER ARM
90022-MG8-000
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE SOCKET (6X14)
90071-MF5-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (6.1MM)
90435-HB3-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, BEARING HOLDER
90441-KA4-700
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (14MM)
90451-155-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, RADIAL BALL (6905U)
91004-KY4-900
|
$27.71 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEX. (6X16)
93301-06016-0A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP, OUTER (14MM)
94510-14000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROLLER (4X8)
96220-40080
|
$0.58 | ||
|
Unavailable |
|||
