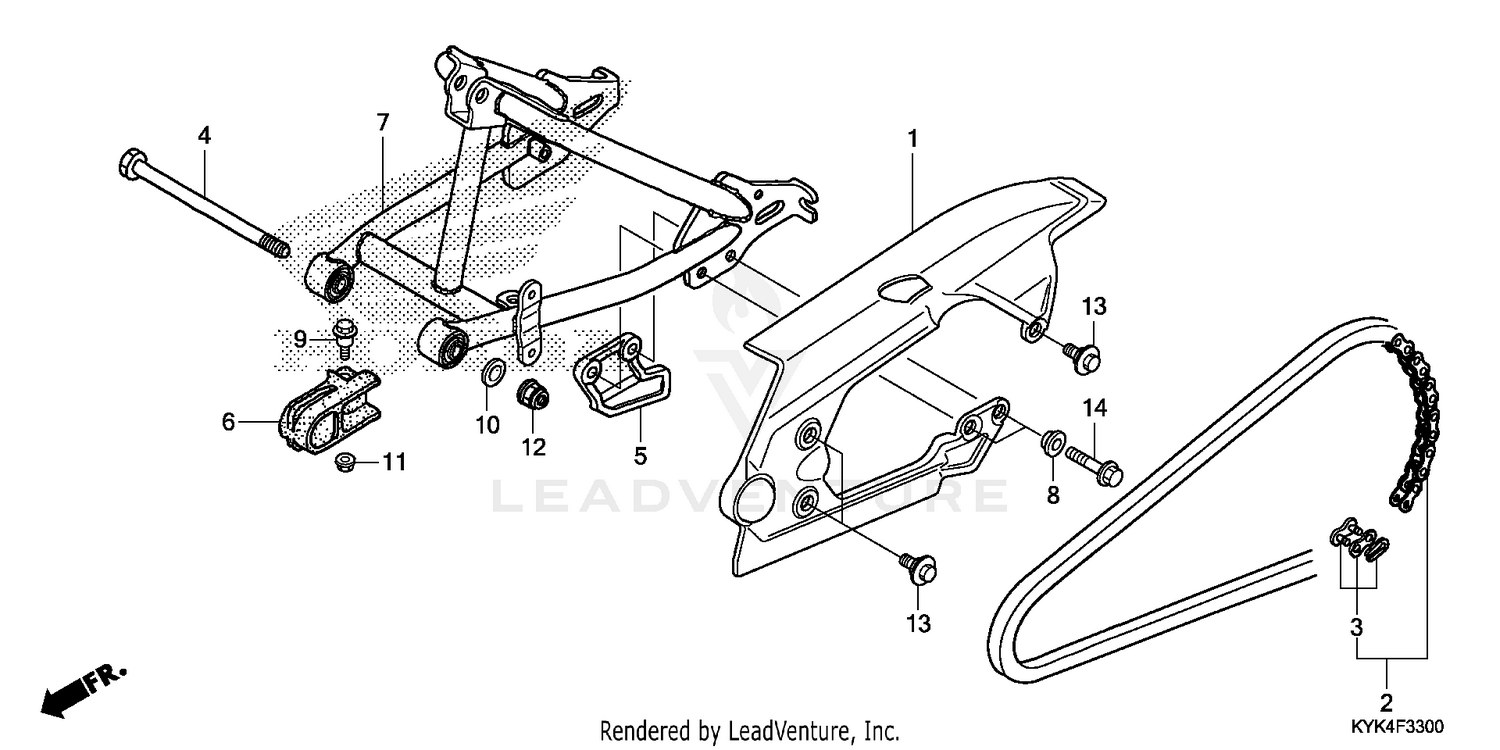

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, DRIVE CHAIN
40510-KYK-910
|
$34.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, DRIVE (420D-86RB) (DAIDO)
40530-KYK-911
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER LINK (DAIDO)
40531-KWV-003
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SWINGARM PIVOT
52101-KYK-910
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUARD, DRIVE CHAIN
52155-KYK-910
|
$35.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SLIDER, CHAIN
52170-KYK-910
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWINGARM SUB-ASSY., RR. *NH132M* (MAX SILVER METALLIC)
52200-KYK-910ZB
|
$365.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, FR. FENDER
61106-KZV-T00
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X20)
90113-KYK-910
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PIVOT BOLT
90122-KWB-600
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE (6MM) (PT)
90302-KYA-601
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE (12MM) (PT)
90306-KYA-601
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL (6MM)
90653-KYK-910
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
