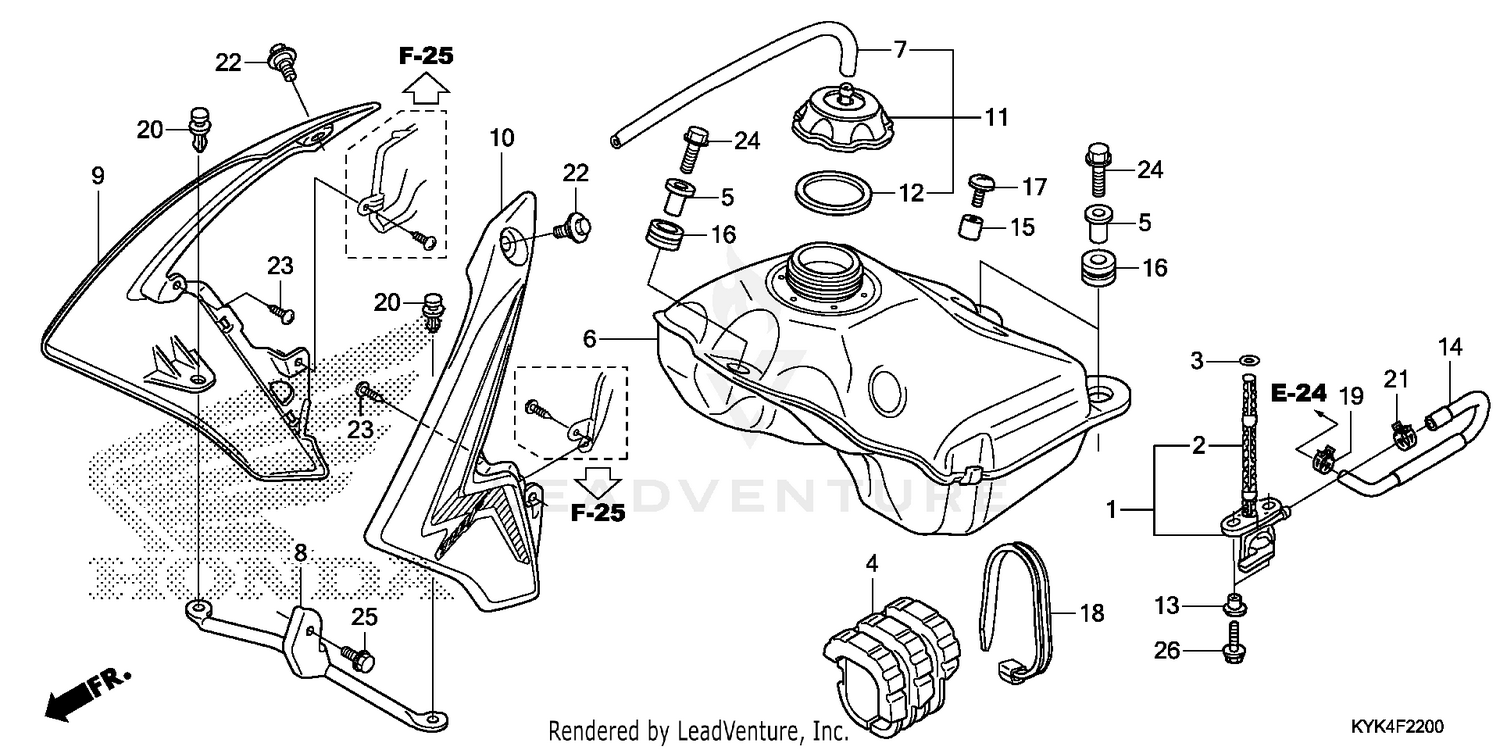

Fuel Tank (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-KSJ-A21
|
$75.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREEN SET, FUEL STRAINER
16952-KSJ-A21
|
$27.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING (11.8X3.55)
16997-467-000
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RUBBER, TANK SETTING
17504-KYK-910
|
$43.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, TANK MOUNT
17509-KYK-910
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
TANK, FUEL
17510-KYK-910
|
$402.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, FUEL CAP BREATHER
17521-429-000
|
$8.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
STAY, SHROUD
17541-KYK-910
|
$130.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHROUD SET A, R. TANK (TYPE1) (WL)
17545-KYK-910ZA
|
$81.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHROUD SET A, L. TANK (TYPE1) (WL)
17555-KYK-910ZA
|
$81.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP ASSY., FUEL TANK
17620-GEL-770
|
$38.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, FUEL CAP
17624-GEL-770
|
$5.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COLLAR, FUEL TANK SETTING
17626-467-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, FUEL
17681-KYK-910
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, SEAT MOUNT
77207-KYK-910
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION, RR. FENDER
80103-MG2-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, SPECIAL (6X17)
90381-KCW-870
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, WIRE HARNESS
90620-SB2-003
|
$27.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP, TUBE (8.0)
90652-KSJ-A21
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLAMP, TUBE (8.5)
90653-KSJ-A20
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SPECIAL (6MM)
90653-KYK-910
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TAPPING (4X10)
93913-24120
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X25)
95701-08025-00
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
